NSN 5320-01-419-9561 MS20427M4C16, 01-419-9561, 014199561
Product Details | SOLID RIVET
5320-01-419-9561 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20427M4C16, 5320-01-419-9561, 01-419-9561, 5320014199561, 014199561
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 OCT 1995 | 01-419-9561 | 00861 ( RIVET, SOLID ) |

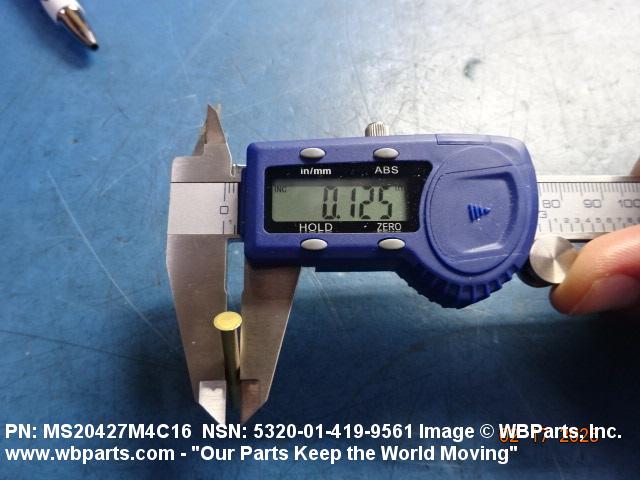

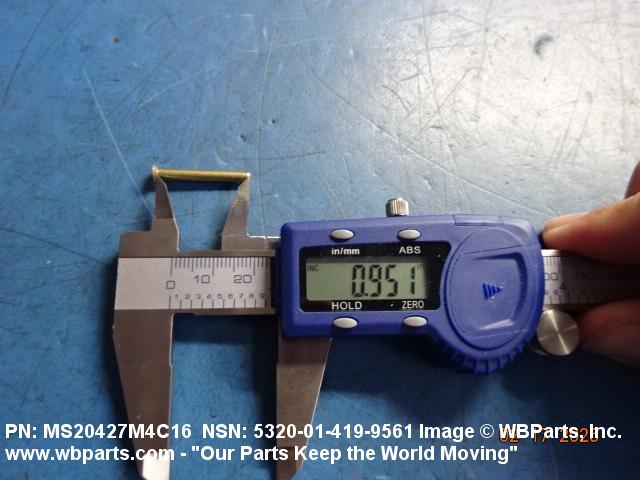

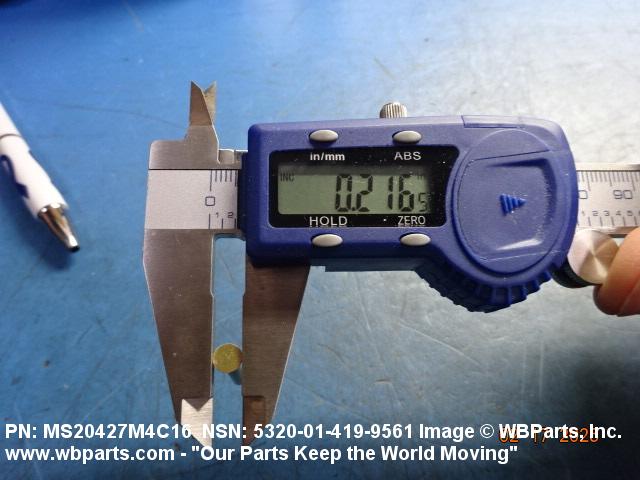

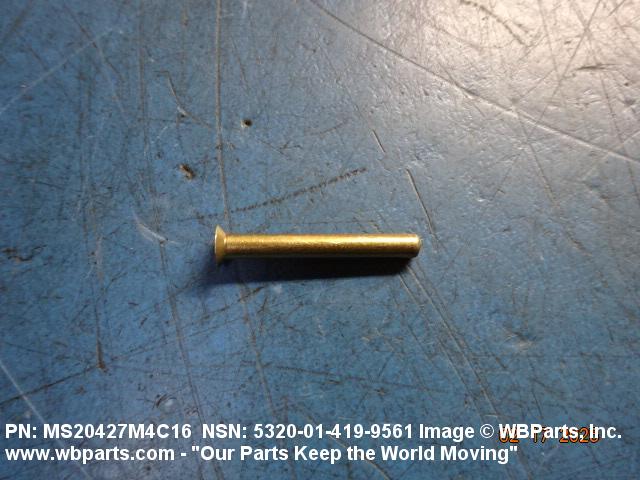

Drawings & Photos | NSN 5320-01-419-9561
Demand History | NSN 5320-01-419-9561
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-419-9561 | 2025-02-38 | 50 | Denmark |
Cross Reference | NSN 5320-01-419-9561
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20427M4C16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-419-9561
Related Products | NSN 5320-01-419-9561
Technical Data | NSN 5320-01-419-9561
| Characteristic | Specifications |
|---|---|
| SPECIFICATION/STANDARD DATA | 96906-MS20427M4C16 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20427M4C16 |
Restrictions/Controls & Freight Information | NSN 5320-01-419-9561
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
