NSN 5320-01-452-7917 NAS1097AD55A, NAS1097AD5-5A, BWT102240080G
Product Details | SOLID RIVET
5320-01-452-7917 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: NAS1097AD55A, NAS1097AD5-5A, BWT102240080G, BWT10-2240080G , 5320-01-452-7917, 01-452-7917, 5320014527917, 014527917
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 FEB 1998 | 01-452-7917 | 00861 ( RIVET, SOLID ) |

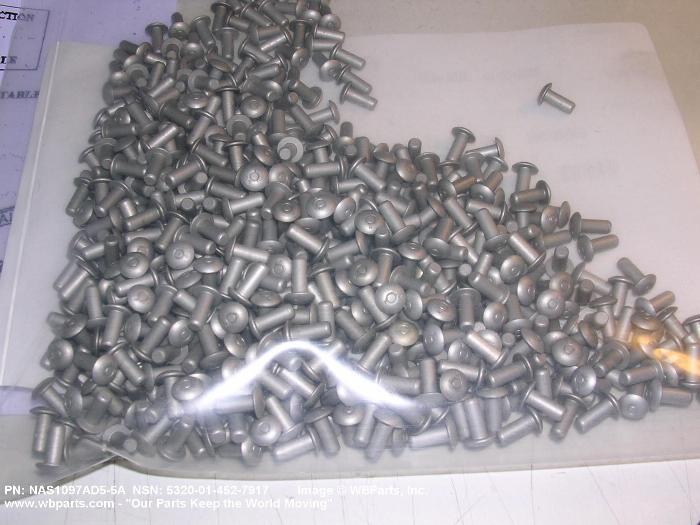

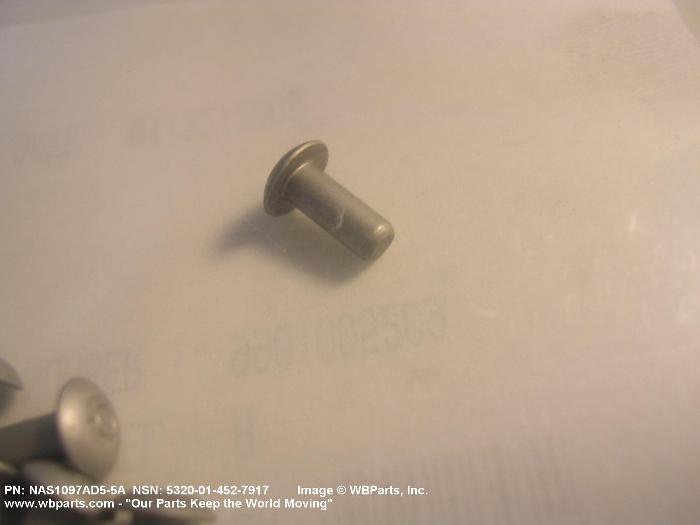

Drawings & Photos | NSN 5320-01-452-7917
Demand History | NSN 5320-01-452-7917
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1097AD55A | 2008-01-16 | 300 | Mexico |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-452-7917
Technical Data | NSN 5320-01-452-7917
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2017 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 COMP T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625, TY II, CL 1, CLEAR MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.2396 INCHES MINIMUM AND 0.2469 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.312 INCHES NOMINAL |
| SHANK DIAMETER | 0.156 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 8205-NAS1097 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-01-452-7917
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
