NSN 5320-01-475-3996 MS20426AD35D, MS20426AD3-5D, 10341645

Product Details | SOLID RIVET

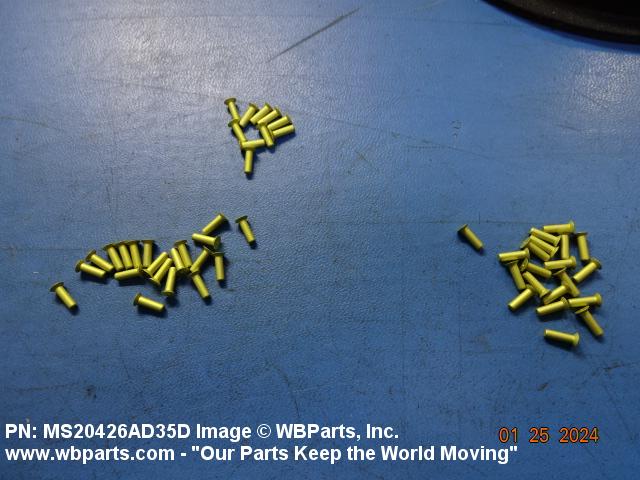

5320-01-475-3996 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: MS20426AD35D, MS20426AD3-5D, 10341645 , 5320-01-475-3996, 01-475-3996, 5320014753996, 014753996

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	02 JUN 2000	01-475-3996	00861 ( RIVET, SOLID )

Drawings & Photos | NSN 5320-01-475-3996

Part Number	Request Date	QTY	Origin
5320-01-475-3996	2025-06-177	1280	United States
5320-01-475-3996	2025-06-154	7453	DIBBS
MS20426AD35D	2025-01-28	4	us
MS20426AD35D	2025-01-28	8	us
MS20426AD35D	2025-01-28	45	us
MS20426AD35D	2025-01-28	55	us
MS20426AD35D	2024-01-19	50	United States
MS20426AD35D	2024-01-19	50	United States
MS20426AD35D	2024-01-12	14	United States
MS20426AD35D	2024-01-12	18	United States
MS20426AD35D	2024-01-08	14	United States
MS20426AD35D	2024-01-04	18	United States
MS20426AD35D	2021-12-348	280	United States
MS20426AD35D	2021-09-273	20	United States
5320-01-475-3996	2011-11-312	18	US
MS20426AD35D	2010-11-326	1	United States
5320-01-475-3996	2010-03-62	5000	DIBBS
MS20426AD35D	2010-02-33	160	United States
MS20426AD35D	2008-04-106	4	United States
5320-01-475-3996	2008-04-93	8594	DIBBS

Cross Reference | NSN 5320-01-475-3996

Part Number	Cage Code	Manufacturer
MS20426AD3-5D	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS20426AD3-5D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-475-3996

Compare

Related Products | NSN 5320-01-475-3996

5320-01-475-4089, 5320-01-475-5412, 5320-01-475-6556, 5320-01-475-6720, 5320-01-475-7089

Technical Data | NSN 5320-01-475-3996

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2117 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OVERALL
HEAD STYLE	C9 FLUSH COUNTERSUNK

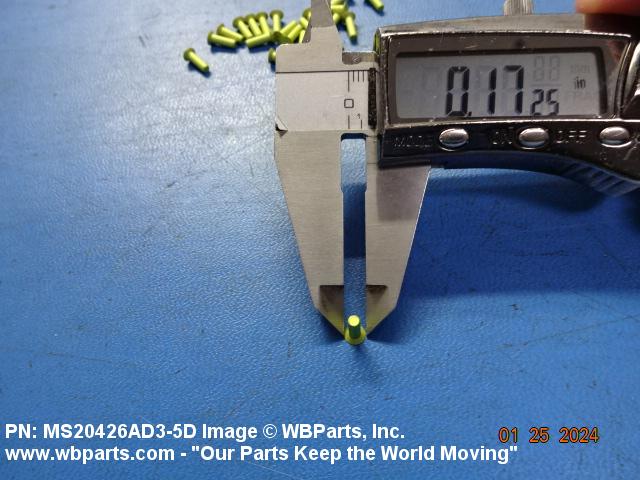

HEAD MAJOR DIAMETER	0.175 INCHES MINIMUM AND 0.183 INCHES MAXIMUM
COUNTERSINK ANGLE	99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM
SHANK STYLE	D10 STRAIGHT WITH RADIUS CHAMFERED TIP

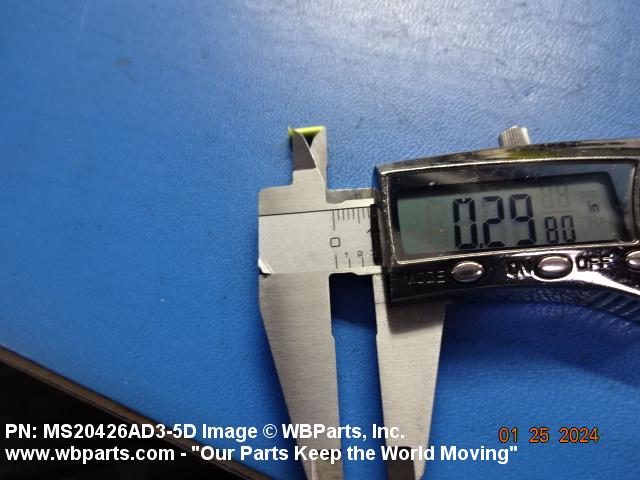

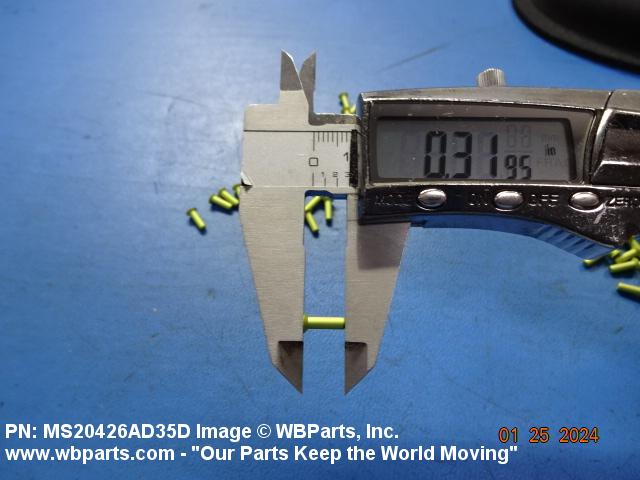

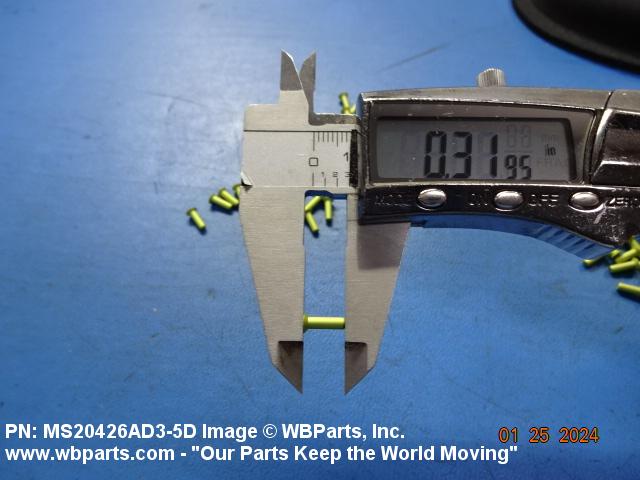

FASTENER LENGTH	0.3115 INCHES MINIMUM AND 0.3135 INCHES MAXIMUM

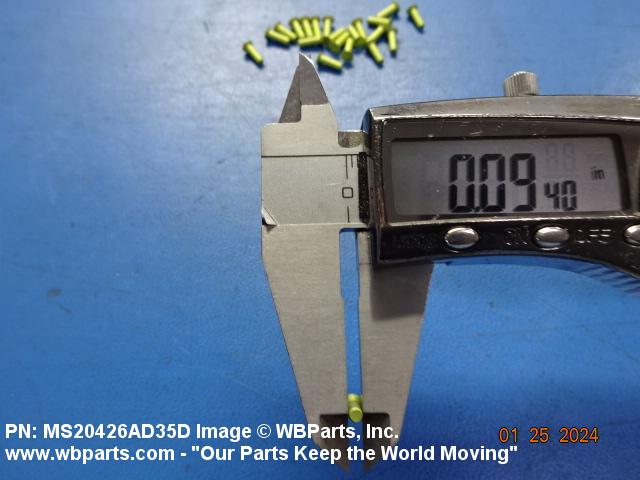

SHANK DIAMETER	0.093 INCHES MINIMUM AND 0.097 INCHES MAXIMUM
GRIP LENGTH	0.2755 INCHES MINIMUM AND 0.2775 INCHES MAXIMUM
III END ITEM IDENTIFICATION	USED ON FIGHTER AIRCRAFT F18 E/F
III PART NAME ASSIGNED BY CONTROLLING AGENCY	RIVET,SOLID,COUNTERSUNK 100 PERCENT PRECISION HEAD,ALUMINUM AND TITANIUM COLUMBIUM ALLOY
