NSN 5320-01-476-8196 BACR15CE5B8, BACR15CE5B-8, 01-476-8196
Product Details | SOLID RIVET
5320-01-476-8196 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: BACR15CE5B8, BACR15CE5B-8, 5320-01-476-8196, 01-476-8196, 5320014768196, 014768196
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUL 2000 | 01-476-8196 | 00861 ( RIVET, SOLID ) |

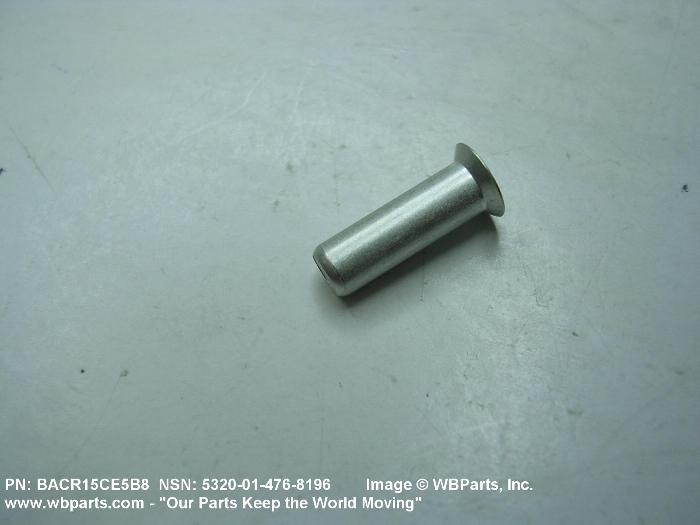

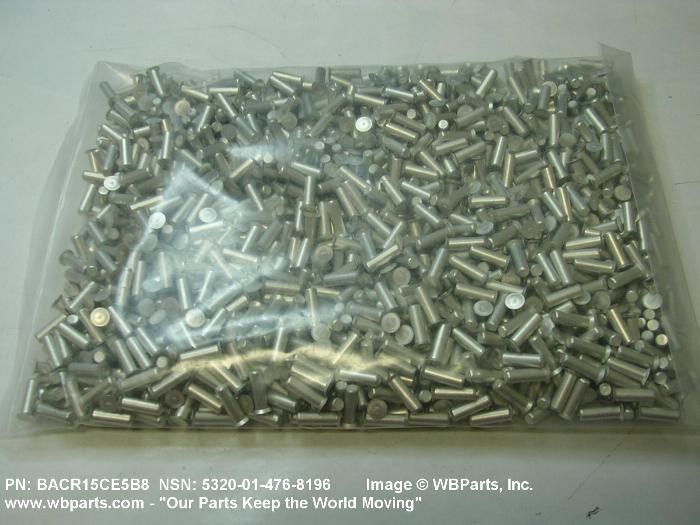

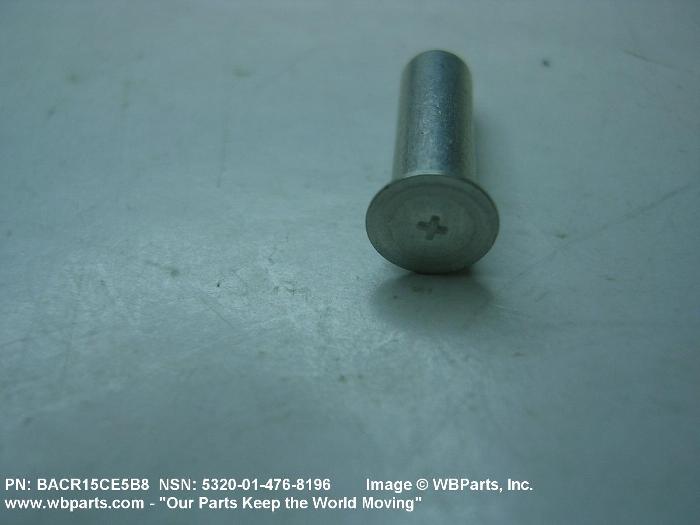

Drawings & Photos | NSN 5320-01-476-8196
Demand History | NSN 5320-01-476-8196
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACR15CE5B8 | 2008-05-129 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-476-8196
Related Products | NSN 5320-01-476-8196
Technical Data | NSN 5320-01-476-8196
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541, CLASS 1A, CLEAR,COLORLESS MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C13 UNDERSIZED OVAL COUNTERSUNK |
| HEAD HEIGHT | 0.020 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.243 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |
| HEAD MINOR DIAMETER | 0.190 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| COUNTERSINK HEIGHT | 0.039 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |
| FASTENER LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
| SPECIAL FEATURES | FINISH IS CHEMICAL CONVERSION COATED PER MIL-C-5541, CLASS 1A, COLORLESS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RIVET, 100 DEG SHEAR HEAD |
| MANUFACTURERS CODE | 81205 |
| MFR SOURCE CONTROLLING REFERENCE | BACR15CE5B-8 |
Restrictions/Controls & Freight Information | NSN 5320-01-476-8196
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
