NSN 5320-01-477-5991 MS20426T428, MS20426T4-28, 01-477-5991
Product Details | SOLID RIVET
5320-01-477-5991 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426T428, MS20426T4-28, 5320-01-477-5991, 01-477-5991, 5320014775991, 014775991
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 AUG 2000 | 01-477-5991 | 00861 ( RIVET, SOLID ) |

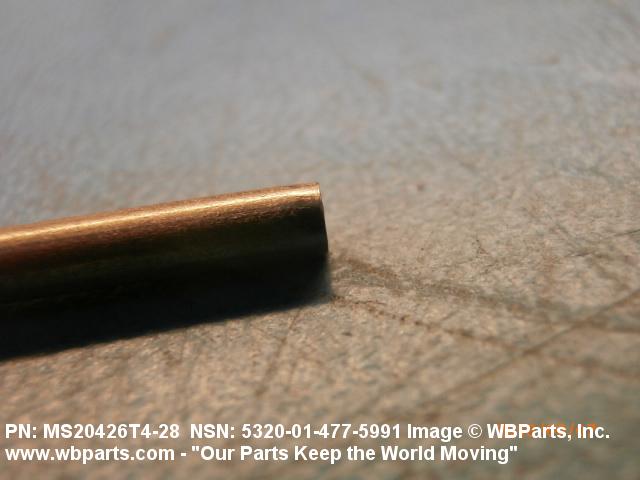

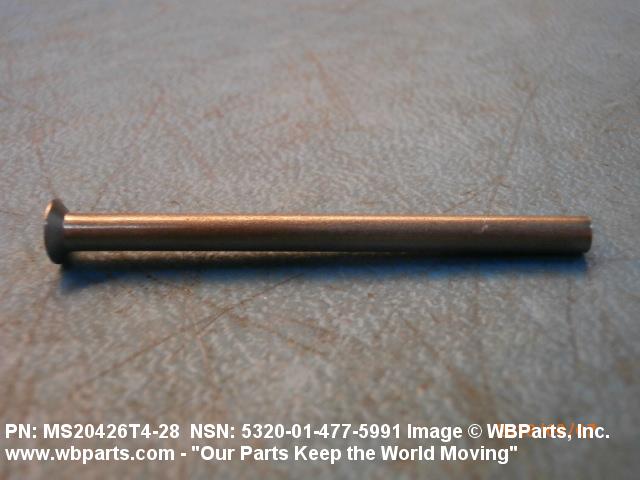

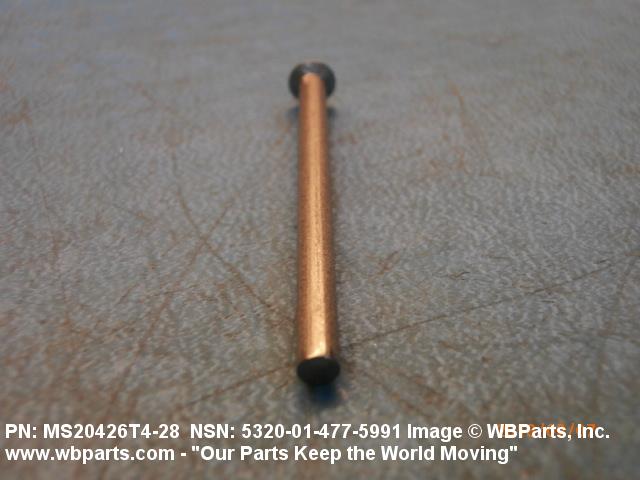

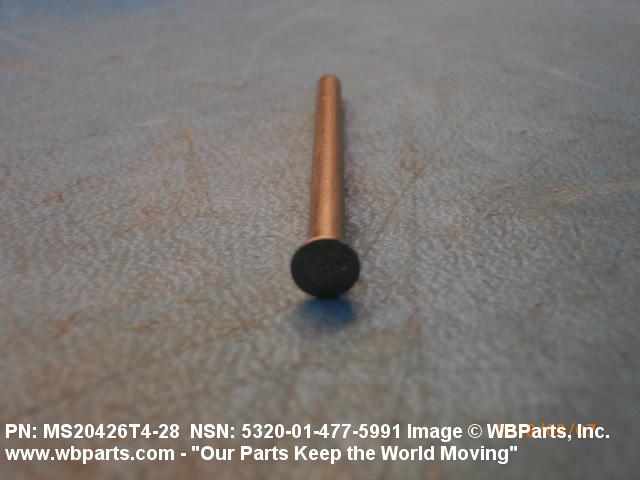

Drawings & Photos | NSN 5320-01-477-5991
Demand History | NSN 5320-01-477-5991
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-477-5991 | 2018-01-29 | 40 | United States |
| 5320-01-477-5991 | 2017-09-263 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-477-5991
Related Products | NSN 5320-01-477-5991
Technical Data | NSN 5320-01-477-5991
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R58450 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4982 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

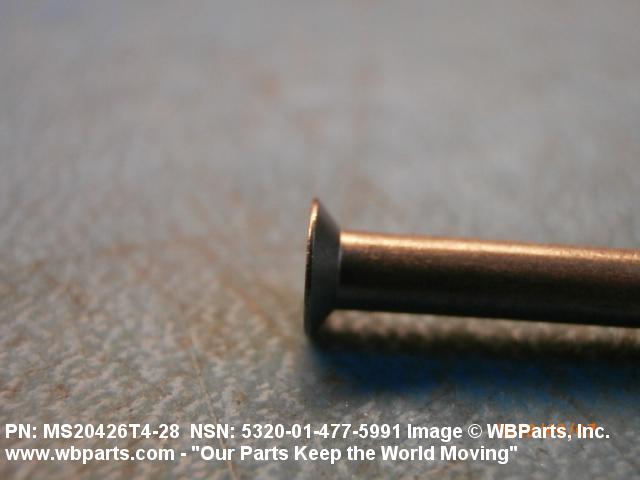

| HEAD STYLE | C9 FLUSH COUNTERSUNK |

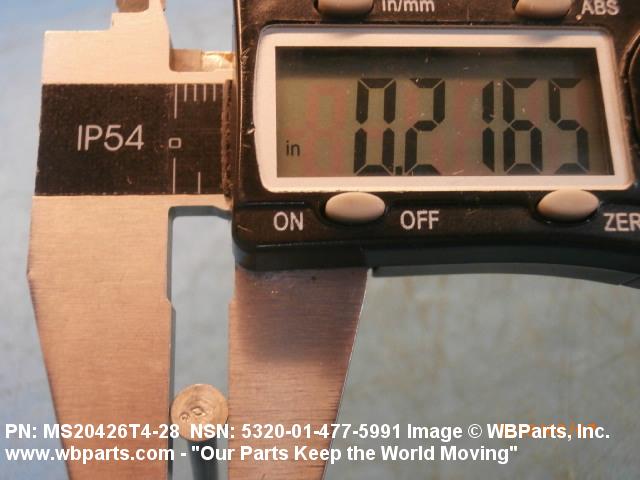

| HEAD MAJOR DIAMETER | 0.221 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

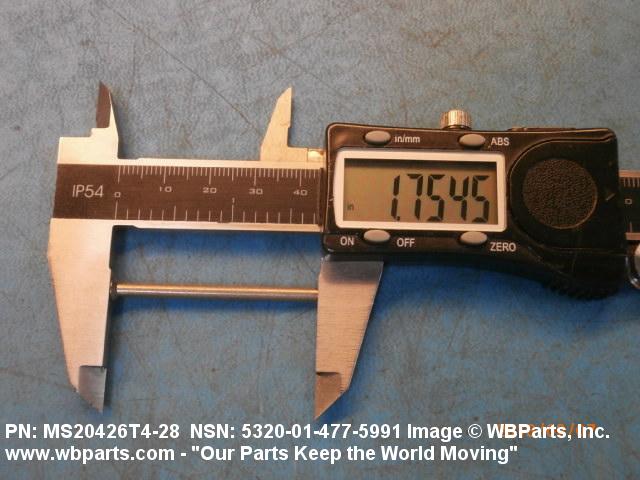

| FASTENER LENGTH | 1.740 INCHES MINIMUM AND 1.760 INCHES MAXIMUM |

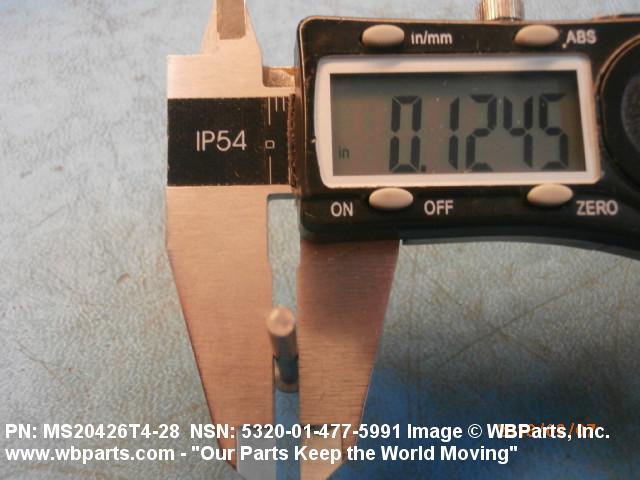

| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| GRIP LENGTH | 1.698 INCHES MINIMUM AND 1.718 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | USED ON FIGHTER F18 E/F |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RIVET,SOLID,COUNTERSUNK 100 PERCENT PRECISION HEAD,ALUMINUM AND TITANIUMCOLUMBIUM ALLOY |
Restrictions/Controls & Freight Information | NSN 5320-01-477-5991
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-477-5991
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | QE | FIGHTERAIRCRAFT-FIRST(F18 E/F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
