NSN 5320-01-478-8365 MS16535477, MS16535-477, 01-478-8365
Product Details | TUBULAR RIVET
5320-01-478-8365 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: MS16535477, MS16535-477, 5320-01-478-8365, 01-478-8365, 5320014788365, 014788365
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 SEP 2000 | 01-478-8365 | 00863 ( RIVET, TUBULAR ) |

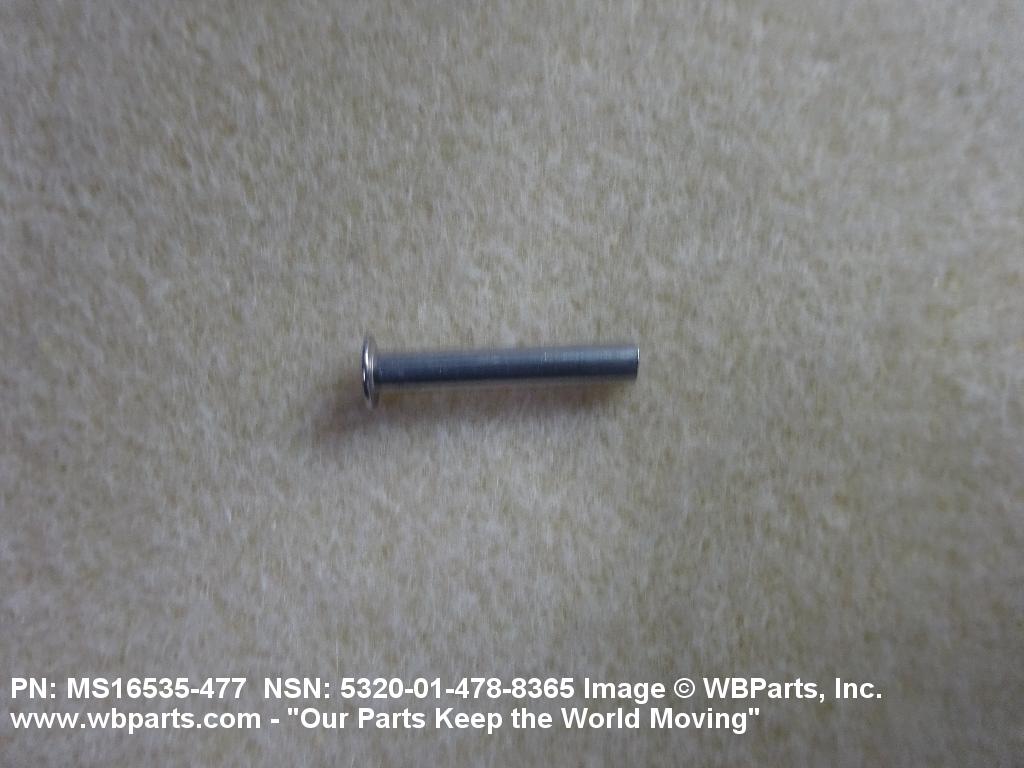

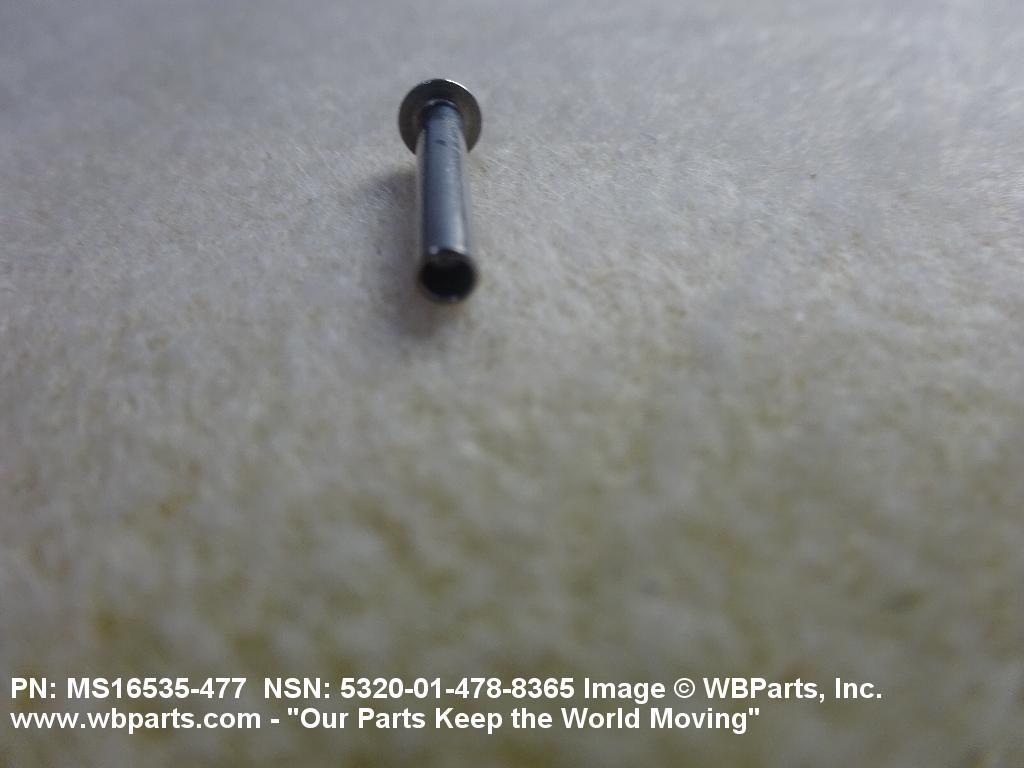

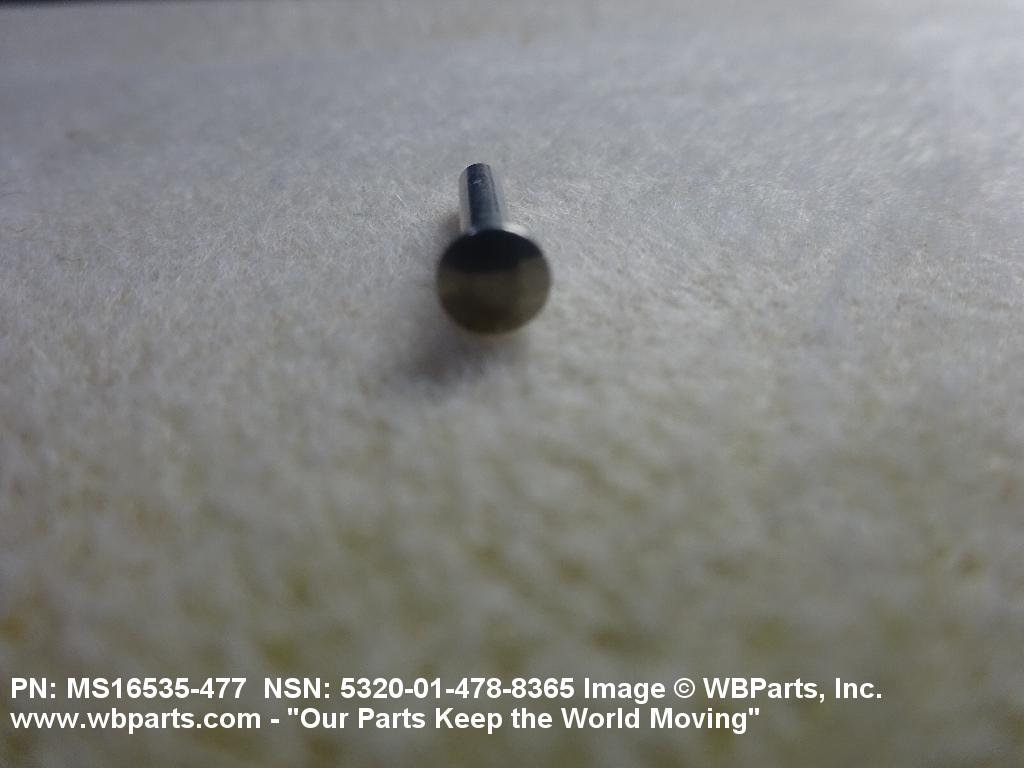

Drawings & Photos | NSN 5320-01-478-8365
Demand History | NSN 5320-01-478-8365
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS16535477 | 2021-08-222 | 4 | United States |
Cross Reference | NSN 5320-01-478-8365
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS16535-477 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-478-8365
Related Products | NSN 5320-01-478-8365
Technical Data | NSN 5320-01-478-8365
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C19 OVAL/TRUSS |
| HEAD HEIGHT | 0.030 INCHES MINIMUM AND 0.038 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM |
| SHANK STYLE | D6 TUBULAR |

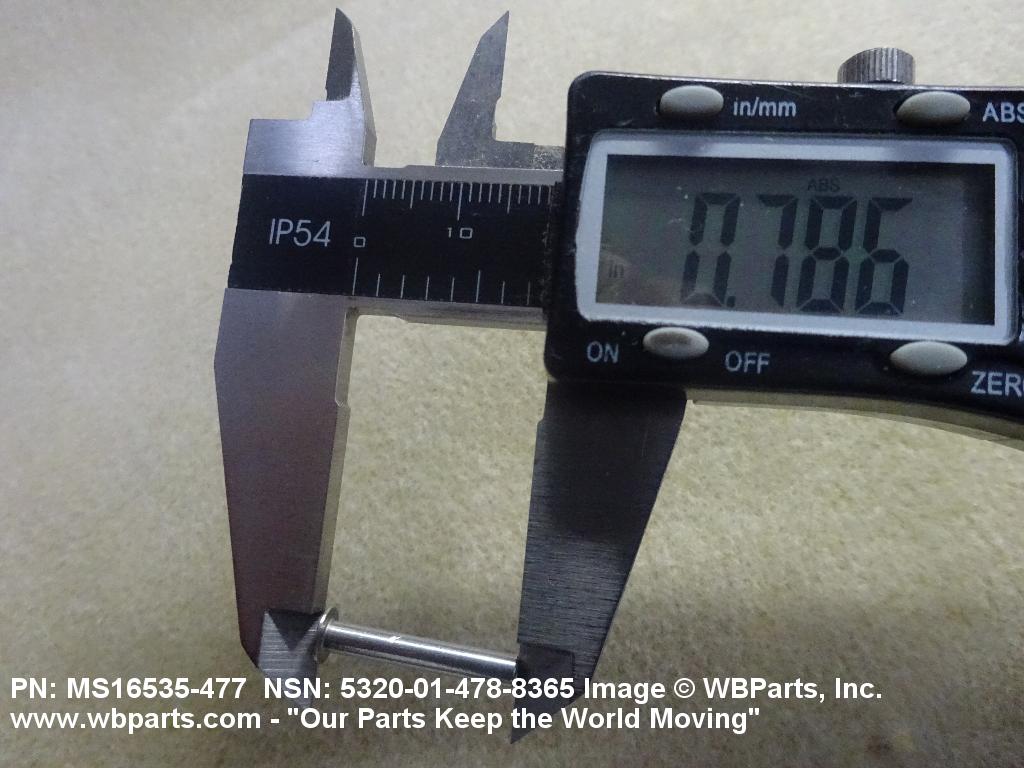

| FASTENER LENGTH | 0.750 INCHES NOMINAL |
| HOLE DIAMETER | 0.084 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |

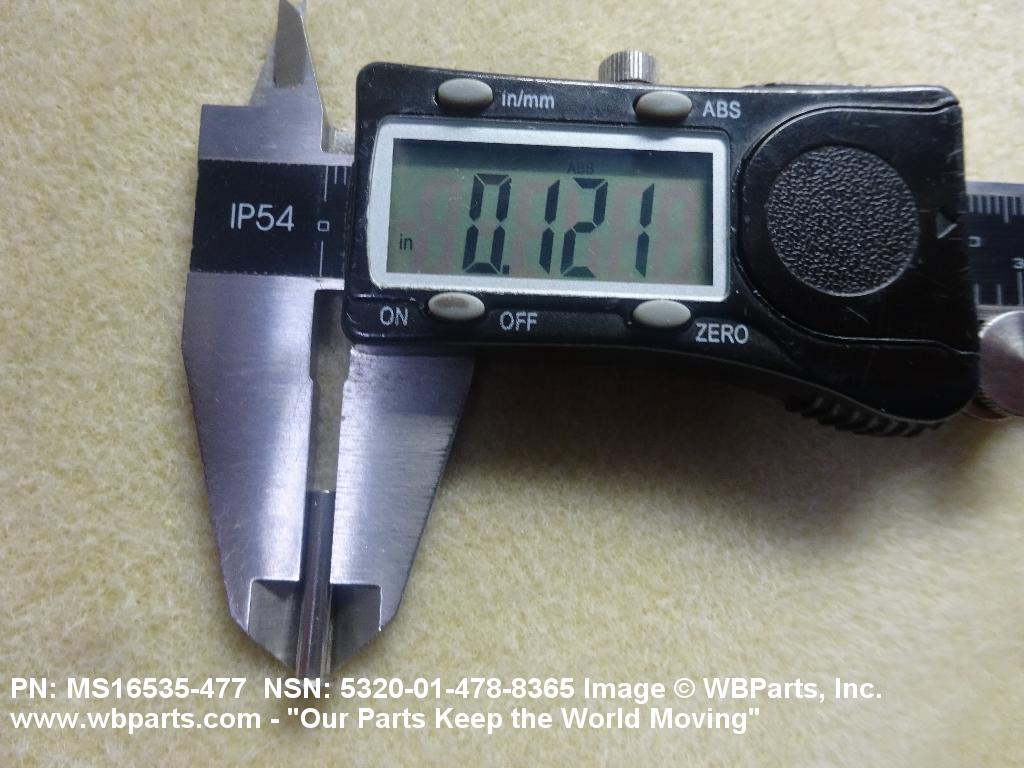

| SHANK DIAMETER | 0.118 INCHES MINIMUM AND 0.123 INCHES MAXIMUM |
| HOLE DEPTH | 0.094 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 12 TYPE |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | F/A-18 E/F AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | (INAVY) RIVET-TUBULAR, OVAL HEAD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16535-477 |
Restrictions/Controls & Freight Information | NSN 5320-01-478-8365
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
