Product Details | PIN-RIVET COLLAR

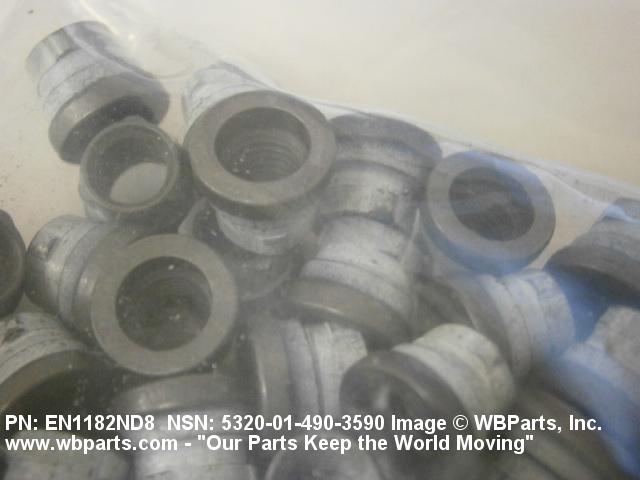

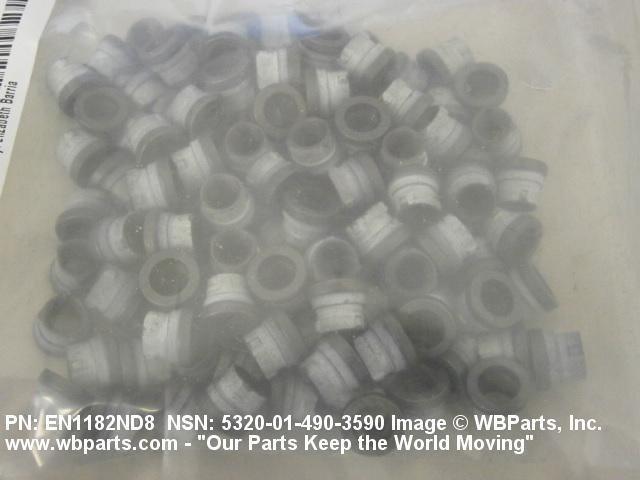

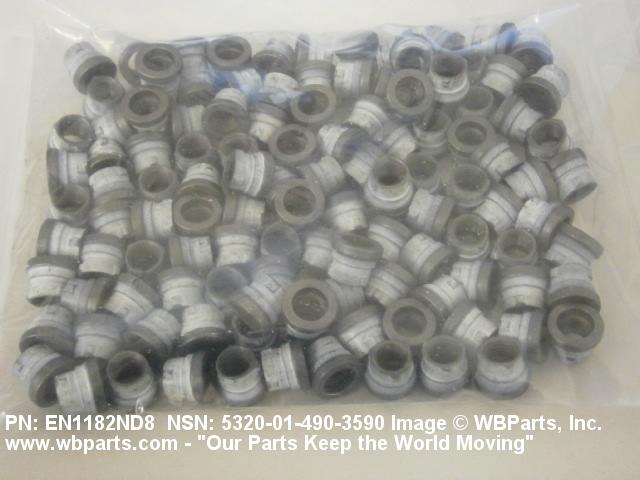

5320-01-490-3590 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: EN1182ND8, 5320-01-490-3590, 01-490-3590, 5320014903590, 014903590
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 SEP 2001 | 01-490-3590 | 67166 ( COLLAR, PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-490-3590
Demand History | NSN 5320-01-490-3590
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| EN1182ND8 | 2025-10-300 | 1185 | DIBBS |
| EN1182ND8 | 2025-10-292 | 1185 | DIBBS |
| EN1182ND8 | 2025-04-93 | 845 | DIBBS |
| EN1182ND8 | 2025-03-85 | 845 | DIBBS |
| EN1182ND8 | 2024-10-284 | 412 | DIBBS |
| EN1182ND8 | 2024-10-276 | 412 | DIBBS |
| 5320-01-490-3590 | 2024-04-102 | 100 | United States |
| EN1182ND8 | 2023-12-351 | 1713 | DIBBS |
| EN1182ND8 | 2022-01-25 | 892 | DIBBS |
| EN1182ND8 | 2021-10-290 | 65 | DIBBS |
| EN1182ND8 | 2021-09-256 | 3564 | DIBBS |
| EN1182ND8 | 2021-08-222 | 100 | China |
| EN1182ND8 | 2021-03-77 | 3564 | DIBBS |
| EN1182ND8 | 2020-12-352 | 2716 | DIBBS |
| EN1182ND8 | 2020-12-351 | 140 | US |
| EN1182ND8 | 2020-10-281 | 1845 | DIBBS |
| EN1182ND8 | 2020-04-120 | 292 | US |
| 5320-01-490-3590 | 2019-05-134 | 25 | United States |
| EN1182ND8 | 2018-11-324 | 5000 | NO |
| EN1182ND8 | 2018-11-324 | 4000 | NO |
| 5320-01-490-3590 | 2018-11-323 | 10000 | NO |
| 5320-01-490-3590 | 2018-07-197 | 40 | US |
| 5320-01-490-3590 | 2018-03-71 | 3700 | DIBBS |
| 5320-01-490-3590 | 2018-03-63 | 3700 | DIBBS |
| 5320-01-490-3590 | 2018-01-18 | 2115 | DIBBS |
| 5320-01-490-3590 | 2017-10-295 | 947 | DIBBS |
| EN1182ND8 | 2012-03-73 | 120 | United States |
| 5320-01-490-3590 | 2011-02-34 | 1400 | DIBBS |
| 5320-01-490-3590 | 2010-05-124 | 1418 | DIBBS |
| 5320-01-490-3590 | 2010-03-90 | 555 | DIBBS |
| 5320-01-490-3590 | 2009-10-280 | 144 | DIBBS |
| 5320-01-490-3590 | 2009-09-259 | 163 | DIBBS |
| 5320-01-490-3590 | 2009-06-152 | 296 | DIBBS |
| 5320-01-490-3590 | 2008-11-316 | 716 | DIBBS |
| 5320-01-490-3590 | 2008-10-283 | 441 | DIBBS |
| 5320-01-490-3590 | 2008-05-133 | 674 | DIBBS |
