NSN 5320-01-505-1880 AF1020W1C4C8, NAS1241AD48, NAS1241AD4-8
Product Details | SOLID RIVET
5320-01-505-1880 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: AF1020W1C4C8, NAS1241AD48, NAS1241AD4-8, 939.30.83.236 , 9393083236, 5320-01-505-1880, 01-505-1880, 5320015051880, 015051880
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 FEB 2003 | 01-505-1880 | 00861 ( RIVET, SOLID ) |

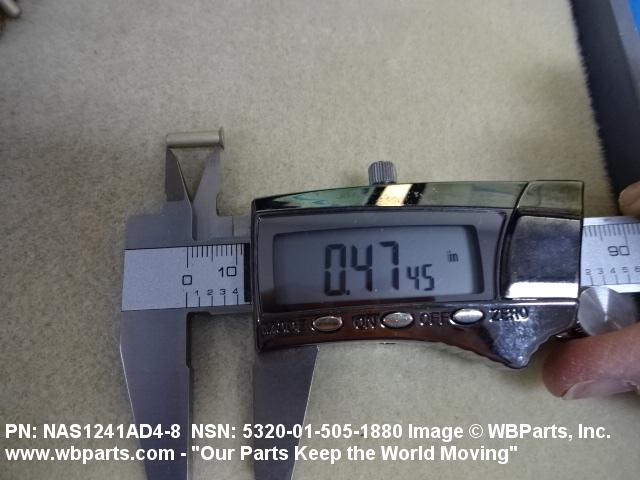

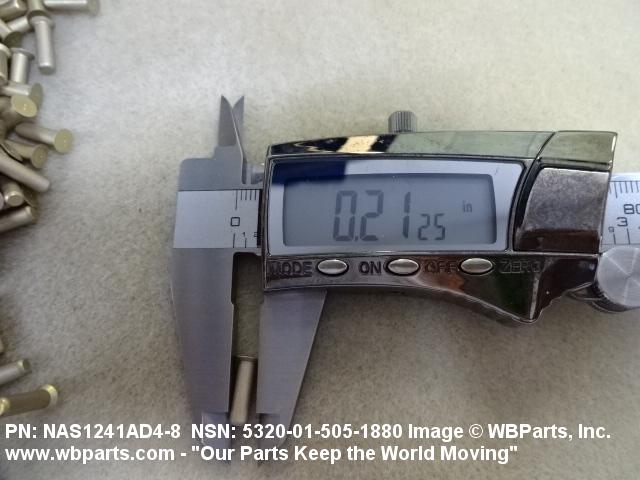

Drawings & Photos | NSN 5320-01-505-1880
Demand History | NSN 5320-01-505-1880
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-505-1880 | 2023-03-81 | 36 | DIBBS |
| 5320-01-505-1880 | 2018-12-361 | 13 | DIBBS |
| NAS1241AD4-8 | 2014-06-157 | 50 | United States |
| NAS1241AD4-8 | 2014-04-99 | 500 | Thailand |
| NAS1241AD48 | 2010-05-146 | 200 | CH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-505-1880
Technical Data | NSN 5320-01-505-1880
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.225 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |
| FASTENER LENGTH | 0.465 INCHES NOMINAL |
| SHANK DIAMETER | 0.141 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5320-01-505-1880
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
