NSN 5320-01-515-6252 CSR924611R, CSR924-6-11R, 01-515-6252
Product Details | SOLID RIVET
5320-01-515-6252 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: CSR924611R, CSR924-6-11R, 5320-01-515-6252, 01-515-6252, 5320015156252, 015156252
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 DEC 2003 | 01-515-6252 | 00861 ( RIVET, SOLID ) |

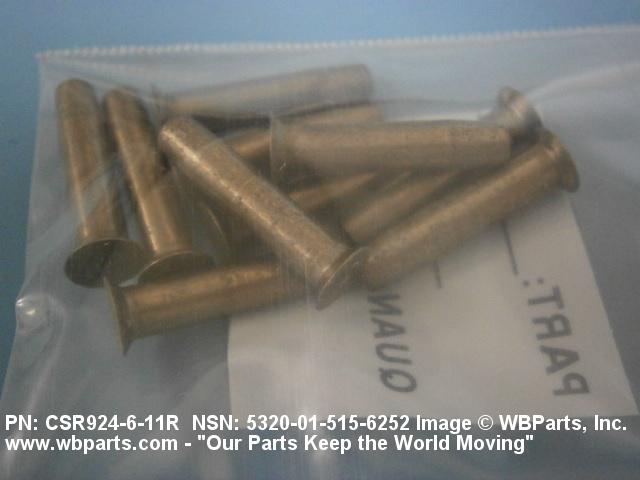

Drawings & Photos | NSN 5320-01-515-6252
Demand History | NSN 5320-01-515-6252
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CSR924611R | 2021-01-18 | 20 | United States |
| 5320-01-515-6252 | 2011-11-326 | 1 | Canada |
Cross Reference | NSN 5320-01-515-6252
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CSR924-6-11R | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-515-6252
Related Products | NSN 5320-01-515-6252
Technical Data | NSN 5320-01-515-6252
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE BODY |
| HEAD STYLE | C12 OVAL COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.282 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D11 STRAIGHT WITH TAPERED TIP |
| FASTENER LENGTH | 0.868 INCHES MINIMUM AND 0.888 INCHES MAXIMUM |
| SHANK DIAMETER | 0.164 INCHES NOMINAL |
| CHAMFER LENGTH | 0.222 INCHES NOMINAL |
| LUBRICATION | CETYL ALCOHOL |
Restrictions/Controls & Freight Information | NSN 5320-01-515-6252
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
