NSN 5320-01-558-3192 MS20470DD54A, MS20470DD5-4A, 01-558-3192
Product Details | SOLID RIVET
5320-01-558-3192 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20470DD54A, MS20470DD5-4A, 5320-01-558-3192, 01-558-3192, 5320015583192, 015583192
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 NOV 2007 | 01-558-3192 | 00861 ( RIVET, SOLID ) |

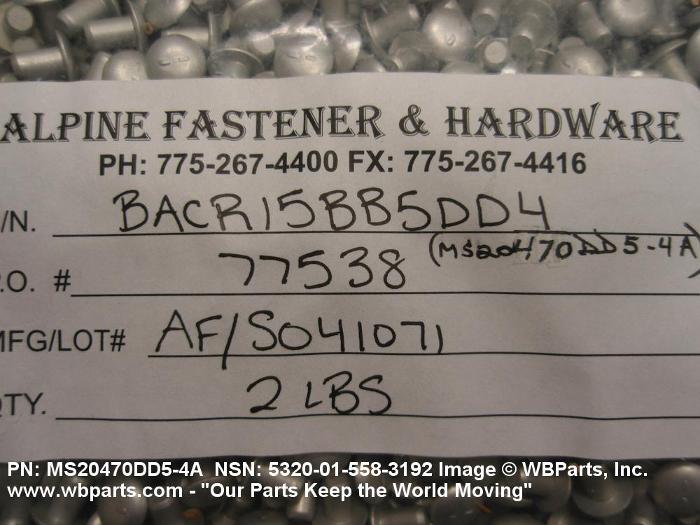

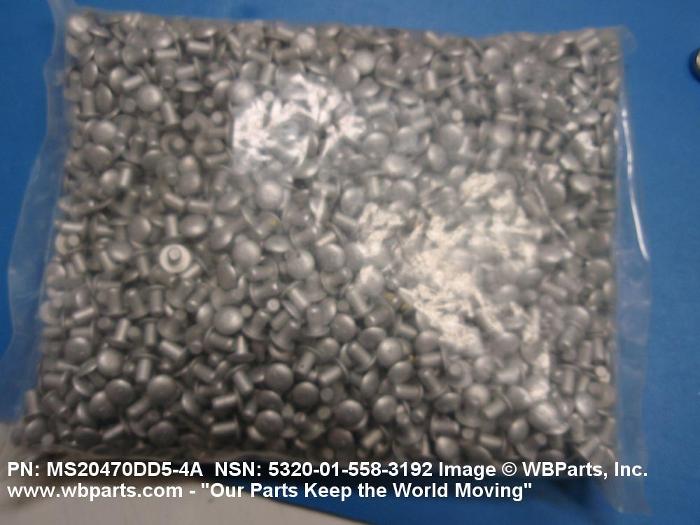

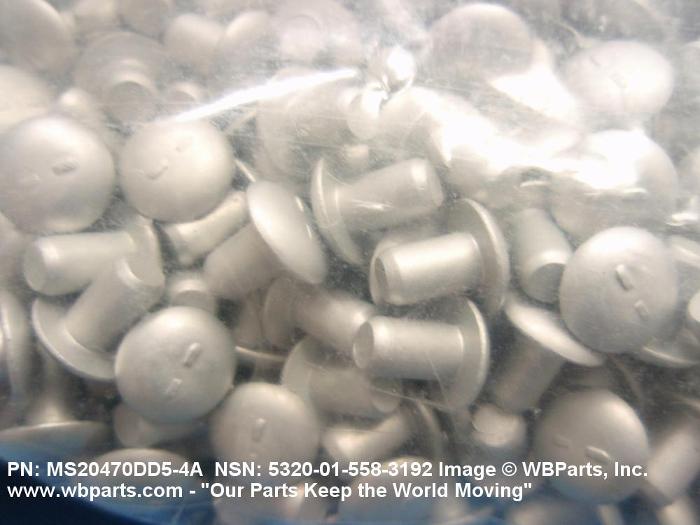

Drawings & Photos | NSN 5320-01-558-3192
Demand History | NSN 5320-01-558-3192
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20470DD54A | 2011-06-164 | 2 | United States |
Cross Reference | NSN 5320-01-558-3192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20470DD5-4A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-558-3192
Related Products | NSN 5320-01-558-3192
Technical Data | NSN 5320-01-558-3192
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-8625 TYPE 1; CLASS 1; CLEAR MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 37000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| GRIP LENGTH | 0.006 INCHES MINIMUM AND 0.026 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-01-558-3192
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
