NSN 5320-01-569-2233 MS20427F43, MS20427F4-3, 01-569-2233
Product Details | SOLID RIVET
5320-01-569-2233 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20427F43, MS20427F4-3, 5320-01-569-2233, 01-569-2233, 5320015692233, 015692233
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 NOV 2008 | 01-569-2233 | 00861 ( RIVET, SOLID ) |

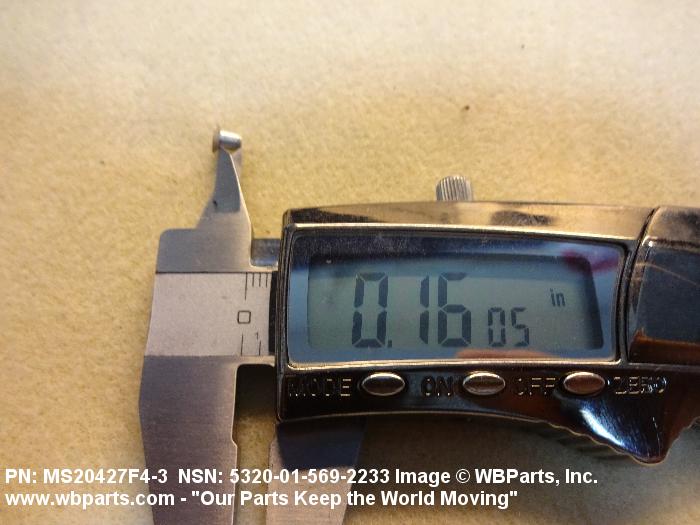

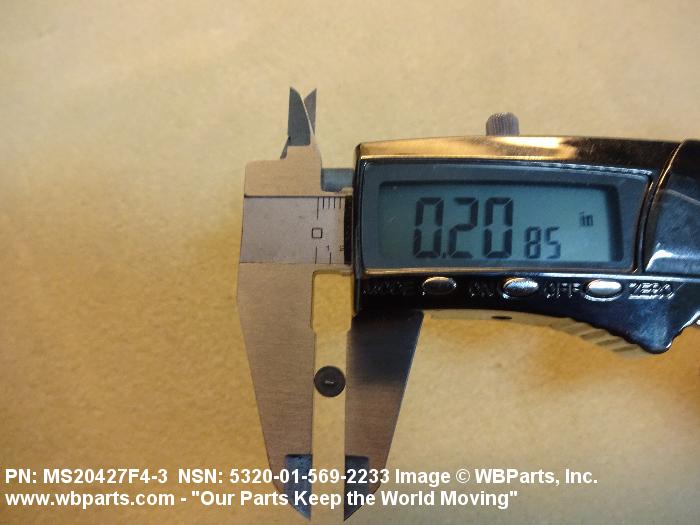

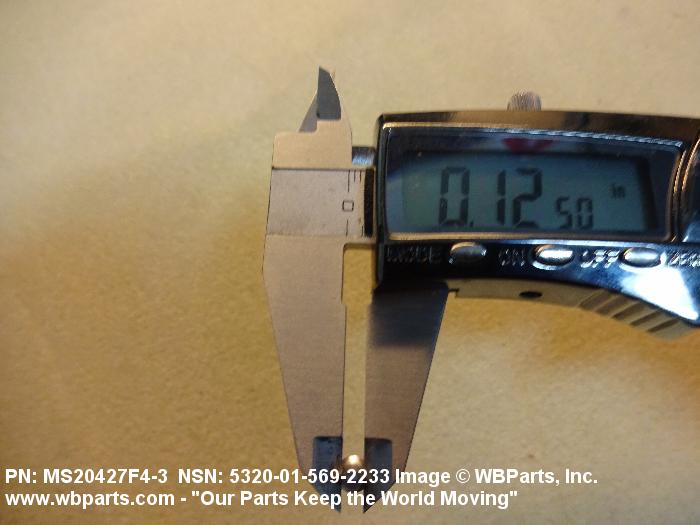

Drawings & Photos | NSN 5320-01-569-2233
Demand History | NSN 5320-01-569-2233
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-569-2233 | 2024-05-124 | 50 | United States |
| MS20427F43 | 2017-07-199 | 0 | United States |
| 5320-01-569-2233 | 2015-09-267 | 1 | DIBBS |
| 5320-01-569-2233 | 2014-10-282 | 1 | DIBBS |
| MS20427F43 | 2014-01-16 | 100 | United States |
| MS20427F43 | 2014-01-16 | 1 | United States |
| 5320-01-569-2233 | 2013-12-355 | 1 | DIBBS |
| 5320-01-569-2233 | 2013-12-344 | 1 | DIBBS |
| 5320-01-569-2233 | 2013-11-329 | 1 | DIBBS |
| 5320-01-569-2233 | 2013-11-315 | 100 | DIBBS |
| 5320-01-569-2233 | 2013-09-258 | 1 | DIBBS |
| 5320-01-569-2233 | 2013-08-236 | 1 | DIBBS |
| 5320-01-569-2233 | 2013-05-143 | 100 | DIBBS |
| 5320-01-569-2233 | 2013-03-82 | 1 | DIBBS |
Cross Reference | NSN 5320-01-569-2233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20427F4-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-569-2233
Related Products | NSN 5320-01-569-2233
Technical Data | NSN 5320-01-569-2233
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER) |
| FASTENER LENGTH | 0.188 INCHES NOMINAL |
| SHANK STYLE | STRAIGHT W/RADIUS CHAMFERED TIP |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 98.5 DEGREES MINIMUM AND 101.5 DEGREES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HEAD MAJOR DIAMETER | 0.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5320-01-569-2233
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-569-2233
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
