NSN 5325-00-089-8873 400224416D, 4002-244-16D, 00-089-8873
Product Details | POSITIVE LOCK FASTENER
5325-00-089-8873 An item consisting of a STUD, POSITIVE LOCK and a RECEPTACLE, POSITIVE LOCK and may include a washer. It is designed to provide a means for securely locking two items together and allow for quick disconnecting.
Part Alternates: 400224416D, 4002-244-16D, 5325-00-089-8873, 00-089-8873, 5325000898873, 000898873
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 AUG 1967 | 00-089-8873 | 18016 ( FASTENER, POSITIVE LOCK ) |
Drawings & Photos | NSN 5325-00-089-8873
Cross Reference | NSN 5325-00-089-8873
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4002-244-16D | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-089-8873
Technical Data | NSN 5325-00-089-8873
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HEAD DIAMETER | 0.377 INCHES MINIMUM AND 0.384 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.166 INCHES MINIMUM AND 0.171 INCHES MAXIMUM |

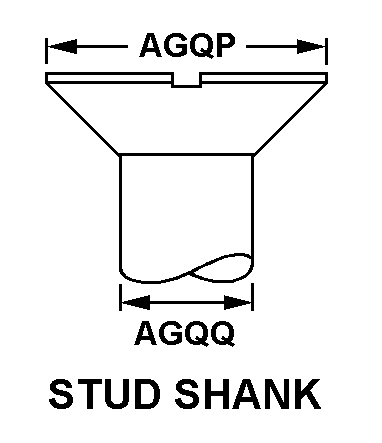

| POSITIVE LOCK STUD SHANK STYLE | 7 STUD SHANK |
| SHANK MINOR DIAMETER | 0.166 INCHES MINIMUM AND 0.171 INCHES MAXIMUM |
| POSITIVE LOCK RECEPTACLE STYLE | 15 RECEPTACLE |
| MOUNTING HOLE DIAMETER | 0.128 INCHES MINIMUM AND 0.134 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.997 INCHES MINIMUM AND 1.003 INCHES MAXIMUM |
| DISTANCE FROM STUD HOLE CENTER TO MOUNTING HOLE CENTER | 0.500 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE WIDTH | 0.820 INCHES MINIMUM AND 0.860 INCHES MAXIMUM |
| POSITIVE LOCK RECEPTACLE LENGTH | 1.360 INCHES MINIMUM AND 1.400 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | PLAIN |
Restrictions/Controls & Freight Information | NSN 5325-00-089-8873
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
