NSN 5325-00-241-6829 MS51830104L, MS51830-104L, KNCAL0832
Product Details | SCREW THREAD INSERT
5325-00-241-6829 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS51830104L, MS51830-104L, KNCAL0832, KNCAL0832J, 10056566 , 5325-00-241-6829, 00-241-6829, 5325002416829, 5340002416829, 002416829
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUL 1969 | 00-241-6829 | 11444 ( INSERT, SCREW THREAD ) |

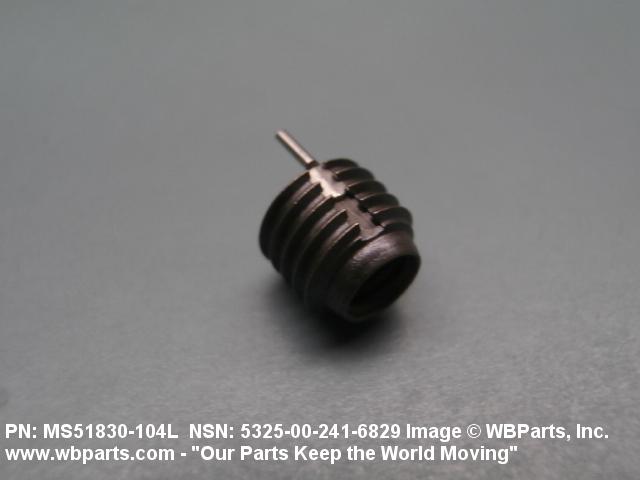

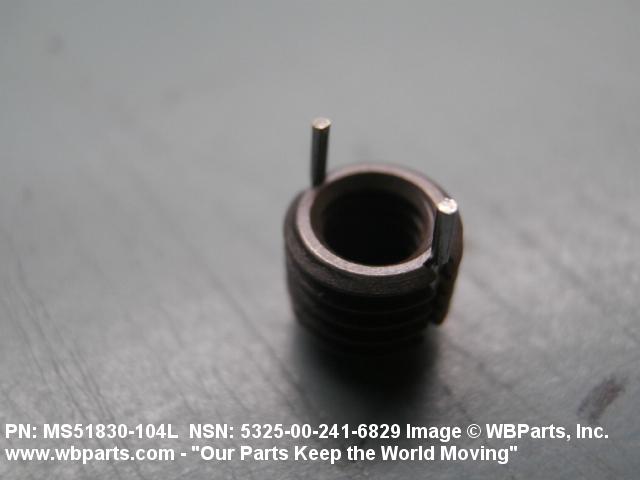

Drawings & Photos | NSN 5325-00-241-6829
Demand History | NSN 5325-00-241-6829
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS51830104L | 2025-12-338 | 800 | Czech Republic |
| MS51830104L | 2025-10-290 | 5000 | IN |
| MS51830104L | 2025-09-260 | 300 | United States |
| MS51830104L | 2025-02-50 | 750 | us |
| MS51830104L | 2024-10-299 | 16 | United States |
| MS51830104L | 2024-02-51 | 2350 | United States |
| MS51830104L | 2021-06-174 | 750 | United States |
| MS51830104L | 2021-06-153 | 360 | US |
| MS51830104L | 2019-09-248 | 10800 | United States |
| MS51830104L | 2018-10-289 | 10 | United States |
| MS51830104L | 2018-09-260 | 24 | United States |
| MS51830104L | 2018-09-249 | 12 | United States |
| MS51830104L | 2018-08-240 | 23 | United States |
| MS51830104L | 2018-03-72 | 2000 | US |
| MS51830104L | 2017-08-220 | 20 | Germany |
| MS51830104L | 2017-06-166 | 60 | United States |
| MS51830-104L | 2017-01-11 | 176 | United Arab Emirates |
| MS51830104L | 2016-08-222 | 75 | United States |
| KNCAL0832J | 2015-11-329 | 500 | IR |
| MS51830104L | 2015-09-271 | 500 | India |
| MS51830104L | 2015-09-251 | 680 | United States |
| 5325-00-241-6829 | 2015-09-251 | 30 | SI |
| MS51830-104L | 2015-06-156 | 32 | United States |
| MS51830104L | 2015-03-86 | 2750 | United States |
| 5325-00-241-6829 | 2015-03-82 | 300 | TR |
| MS51830104L | 2014-09-246 | 200 | us |
| KNCAL0832J | 2014-07-196 | 2500 | US |
| MS51830104L | 2014-07-196 | 2500 | US |
| MS51830104L | 2013-11-310 | 24 | United States |
| MS51830104L | 2013-01-30 | 5000 | US |
| 5325-00-241-6829 | 2012-10-299 | 600 | us |
| 5325-00-241-6829 | 2012-07-188 | 40 | US |
| MS51830-104L | 2012-05-146 | 76 | CR |
| KNCAL0832J | 2012-02-39 | 1 | United States |
| MS51830104L | 2011-12-361 | 4 | United States |
| MS51830104L | 2011-10-293 | 25 | United States |
| MS51830104L | 2011-09-271 | 200 | United States |
| KNCAL0832J | 2011-05-151 | 180 | United States |
| MS51830104L | 2011-05-151 | 180 | United States |
| MS51830104L | 2011-03-90 | 260 | United States |
| MS51830104L | 2011-03-73 | 30 | Australia |
| KNCAL0832J | 2011-01-24 | 150 | US |
| MS51830104L | 2010-12-356 | 1 | Italy |
| MS51830104L | 2010-10-279 | 1 | US |
| 5325-00-241-6829 | 2010-07-207 | 48 | United States |
| KNCAL0832J | 2010-07-200 | 32 | US |
| MS51830104L | 2010-06-165 | 250 | US |
| MS51830104L | 2010-06-165 | 500 | US |
| MS51830104L | 2010-02-33 | 32 | United States |
| MS51830104L | 2009-12-350 | 2500 | US |
| KNCAL0832 | 2009-10-282 | 10 | US |
| MS51830104L | 2009-10-282 | 10 | US |
| MS51830104L | 2009-10-278 | 1750 | United Kingdom |
| MS51830104L | 2009-08-239 | 200 | United Kingdom |
| KNCAL0832J | 2009-06-154 | 30 | United States |
| 5325-00-241-6829 | 2009-05-126 | 60 | US |
| 5325-00-241-6829 | 2009-02-50 | 114 | US |
| 5325-00-241-6829 | 2009-01-30 | 2475 | US |
| MS51830104L | 2008-12-346 | 3000 | United States |
| 5325-00-241-6829 | 2008-11-323 | 100 | US |
| MS51830104L | 2008-10-276 | 2500 | US |
| KNCAL0832J | 2008-09-270 | 400 | US |
| KNCAL0832J | 2008-09-270 | 500 | US |
| 5325-00-241-6829 | 2008-07-199 | 500 | IL |
| MS51830104L | 2008-06-172 | 300 | United States |
| 5325-00-241-6829 | 2008-04-98 | 15 | US |
| 5325-00-241-6829 | 2008-03-84 | 100 | us |
| MS51830104L | 2008-03-80 | 2400 | US |
| MS51830104L | 2008-02-60 | 2133 | United States |
| MS51830104L | 2008-02-60 | 4500 | United States |
| MS51830104L | 2008-02-56 | 1350 | US |
| MS51830104L | 2008-01-23 | 3000 | US |
| MS51830104L | 2007-11-324 | 50 | US |
| 5325-00-241-6829 | 2007-05-136 | 30 | US |
| 5325-00-241-6829 | 2006-11-324 | 400 | US |
| MS51830104L | 2006-06-157 | 50 | United States |
Cross Reference | NSN 5325-00-241-6829
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5340002416829 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| KNCAL0832 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KNCAL0832 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| KNCAL0832J | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS51830-104L | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-241-6829
Related Products | NSN 5325-00-241-6829
Technical Data | NSN 5325-00-241-6829
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,COND B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | H25 GROOVED KEYLOCK |

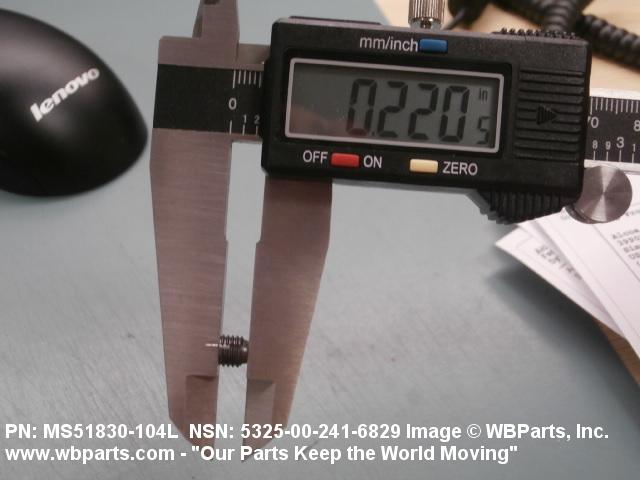

| LENGTH | 0.220 INCHES NOMINAL |
| INSERT SIZE | 0.250 IN.-28 |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | INDIVIDUALLY KEYED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51830-104L |
Restrictions/Controls & Freight Information | NSN 5325-00-241-6829
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-241-6829
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | I | Industrial MaterielDefense Industrial Supply Center (DISC) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
