NSN 5325-00-282-6634 AD12100520070, AD121-0052-0070, SE-34 CAD PLATE D/QQ-P-416 TYPE

Product Details | METALLIC EYELET

5325-00-282-6634 A one-piece metal item, usually tubular, flanged at one end, the other end open. It is used primarily for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and crimped to form a mating flange. Excludes GROMMET, METALLIC and eyelets which are components of pushbutton, turnbutton and turnlock type fastners.

Part Alternates: AD12100520070, AD121-0052-0070, SE-34 CAD PLATE D/QQ-P-416 TYPE, SE34BRASSCADPL, SE34CADPL, SE34CADPLATEDQQP416TYPE, 5462540P001, A151, SE34, 1272CP, 1272-CP, 1272CPADX, 1272-CPADX, 14E1R55GP, 14EIR55DP, 19C78781, 19C7878-1, 307-1002-00, 3071002000, 307-1002-000, 00077BARREL1FLG2, 4535-0853-3, 5325-00-282-6634, 00-282-6634, 5325002826634, 002826634, 453508533, 307100200

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-282-6634	05457 ( EYELET, METALLIC )

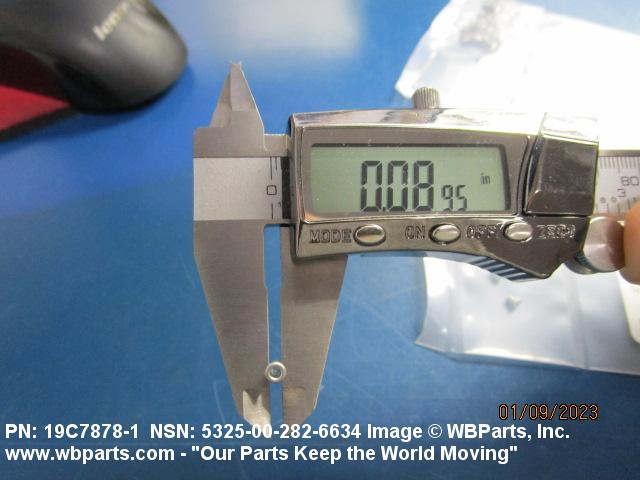

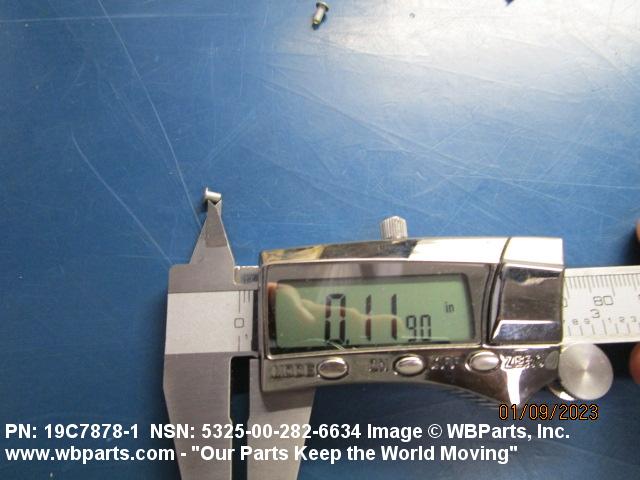

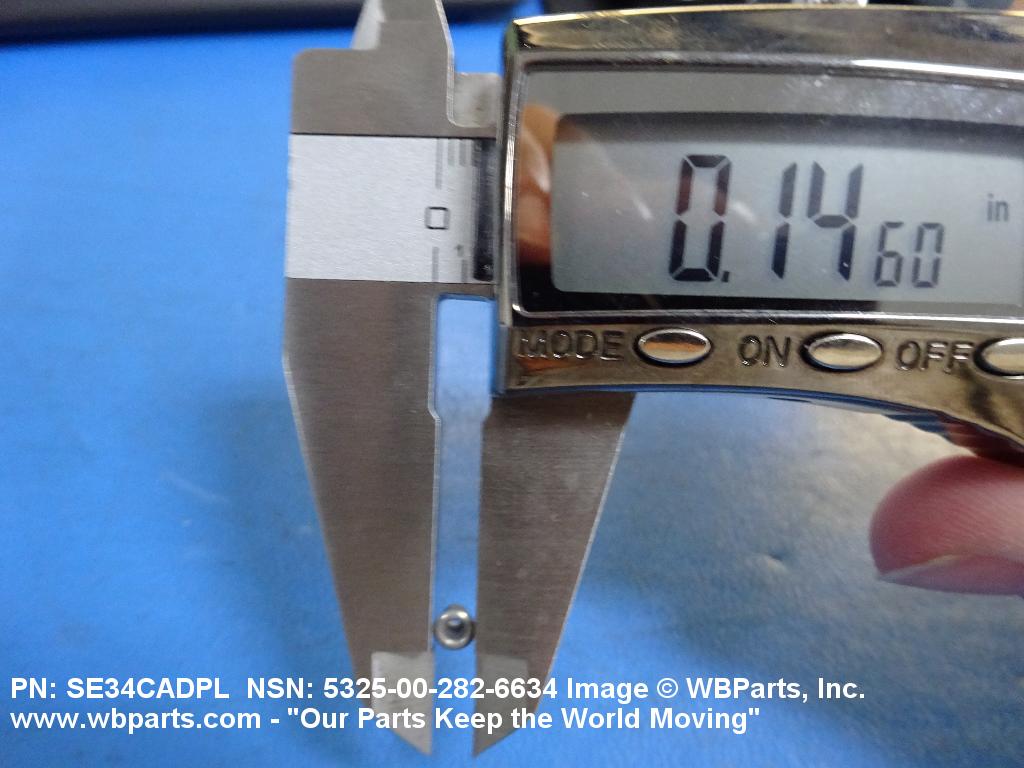

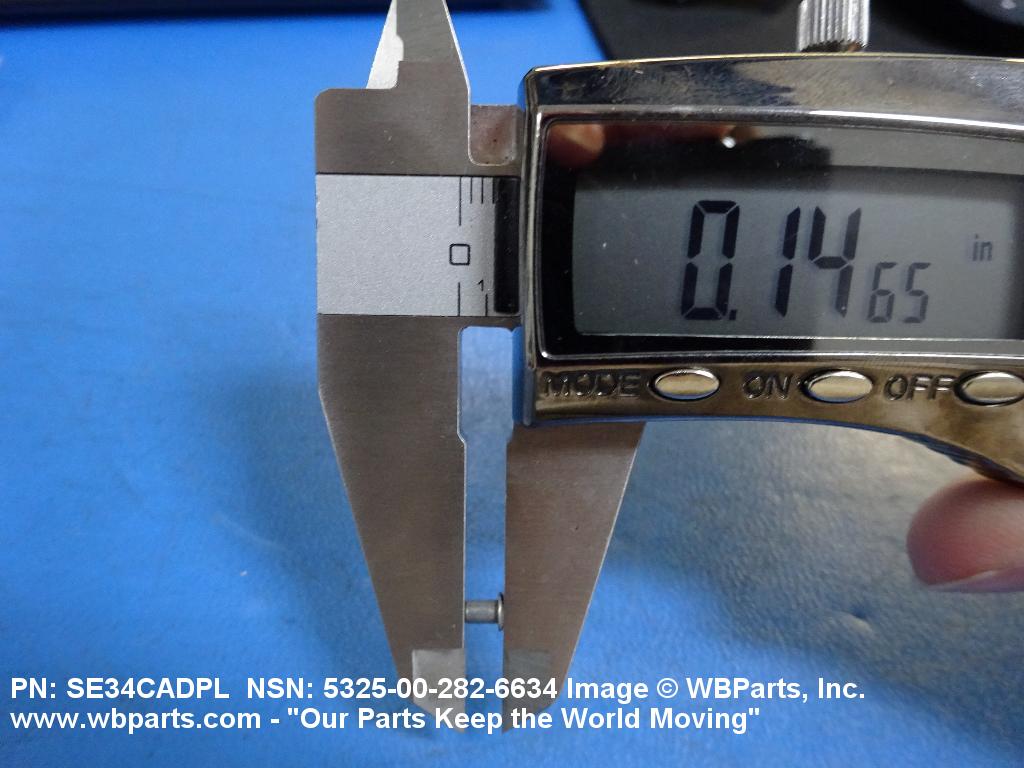

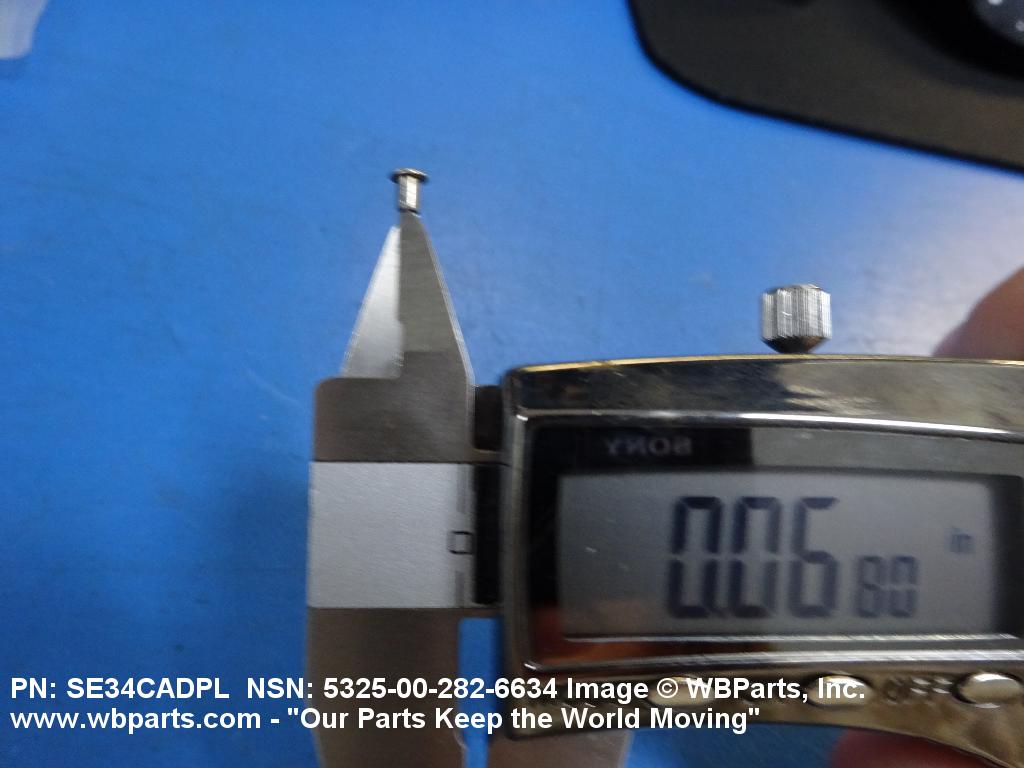

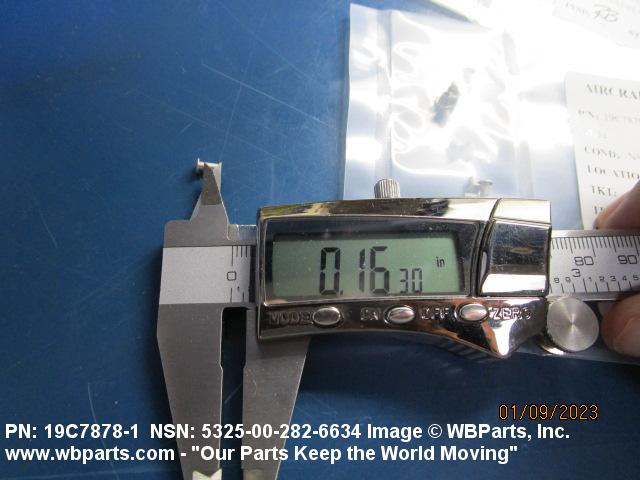

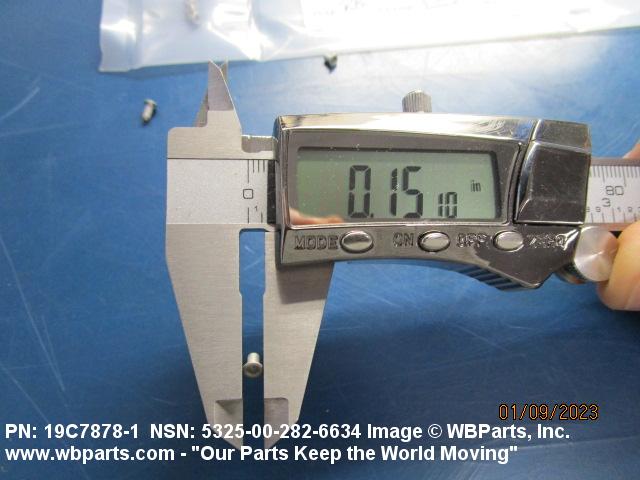

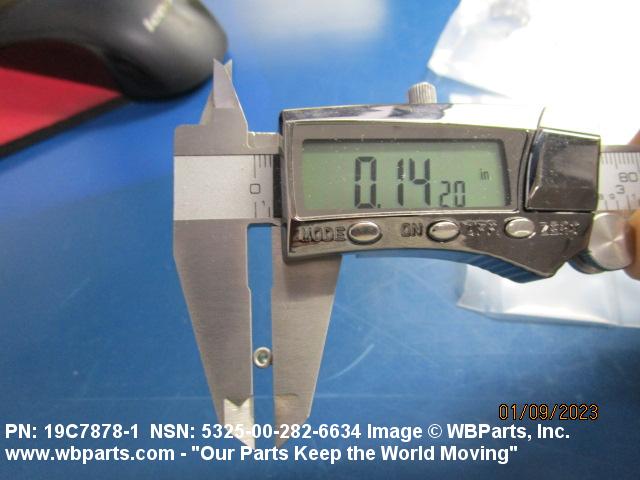

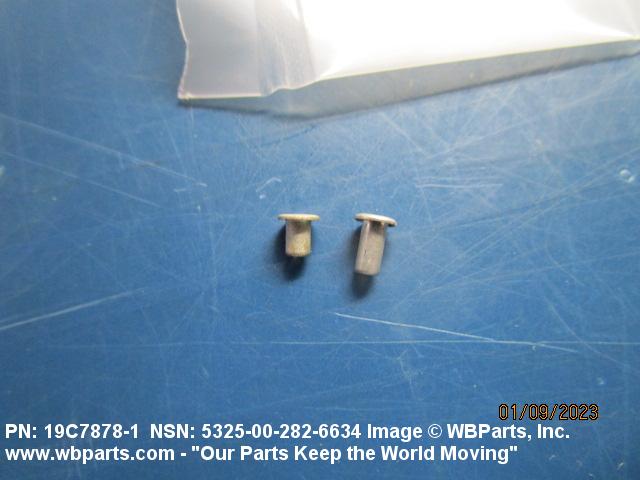

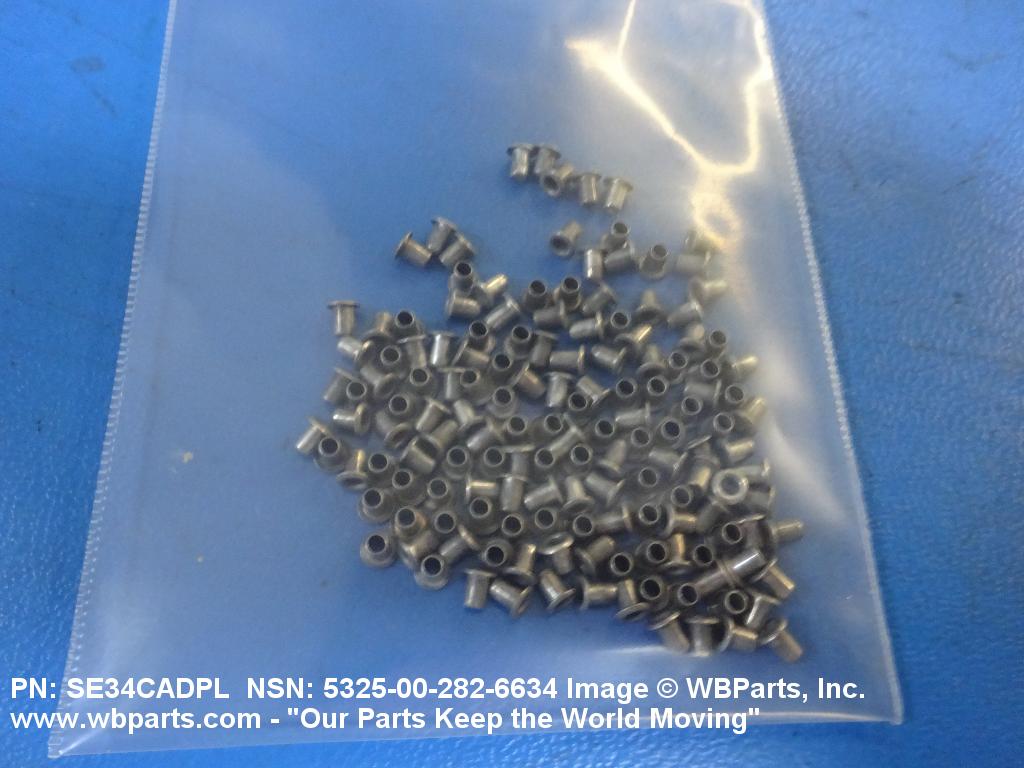

Drawings & Photos | NSN 5325-00-282-6634

Part Number	Request Date	QTY	Origin
1272CP	2025-03-84	18	United States
5325-00-282-6634	2024-03-71	50	United States
19C78781	2022-12-361	150	United States
SE34CADPL	2022-12-361	150	United States
SE34CADPL	2022-03-87	100	United States
5325-00-282-6634	2020-07-203	16	US
5325-00-282-6634	2011-12-362	1000	DIBBS
5325-00-282-6634	2011-11-332	1000	DIBBS

Cross Reference | NSN 5325-00-282-6634

Part Number	Cage Code	Manufacturer
00077 (BARREL 1, FLG 2)	14153	DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER
1272-CP	73734	FEDERAL SCREW PRODUCTS INC.
1272-CPADX	1VN02	AIRDALE EXPRESS LLC
14E1R55GP	94756	BOEING COMPANY, THE DBA BOEING
14EIR55DP	94756	BOEING COMPANY, THE DBA BOEING
19C7878-1	83843	SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV
19C7878-1	99167	HAMILTON SUNDSTRAND CORPORATION
307-1002-00	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
307-1002-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
4535-0853-3	31550	EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS
5462540P001	97424	AMETEK, INC. DIV AEROSPACE & DEFENSE
A151	57771	EDWIN B. STIMPSON COMPANY, INC.
AD121-0052-0070	94756	BOEING COMPANY, THE DBA BOEING
SE-34 CAD PLATE D/QQ-P-416 TYPE	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
SE34	54402	R. P. S. INC
SE34BRASSCADPL	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
SE34CADPL	54402	R. P. S. INC
SE34CADPL	90030	USM CORP SUB OF EMHART INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-282-6634

Compare

Related Products | NSN 5325-00-282-6634

5325-00-282-6635, 5325-00-282-6646, 5325-00-282-6656, 5325-00-282-6659, 5325-00-282-6660

Technical Data | NSN 5325-00-282-6634

Characteristic	Specifications
MATERIAL	COPPER ALLOY OVERALL
COLOR	ANY ACCEPTABLE OVERALL
BARREL STYLE	1 STRAIGHT ROUND TYPE
BARREL HEIGHT	0.120 INCHES NOMINAL
BARREL OUTSIDE DIAMETER	0.085 INCHES NOMINAL
FLANGE STYLE	2 FLANGE
FLANGE OUTSIDE DIAMETER	0.145 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5325-00-282-6634

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	094533	EYELETS OR EYELET HOOKS NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-282-6634

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V EA : Each
