Product Details | SCREW THREAD INSERT

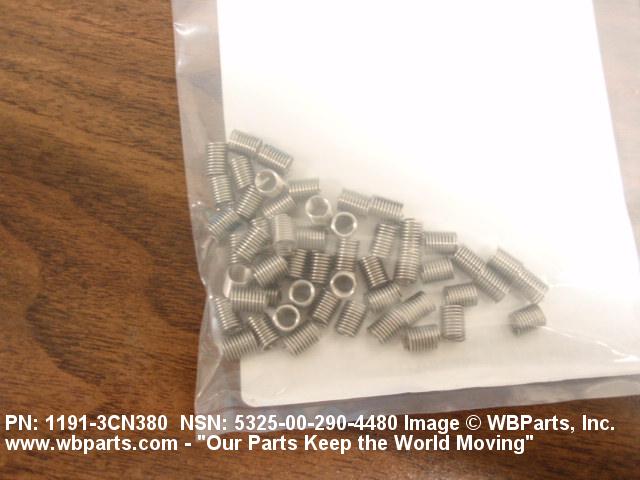

5325-00-290-4480 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS124735, MS21208F120, MS21208-F1-20, MS21208F1-20, F1321032CN380, F132-10-32CN380, 6454022, 645402-2, 691392, 691-392, 7004990P3C, 7742874P43, 811243, 81124300, 811243-00, 9462271735, 946227-1735, 0-080-520-01 RE, 008052001RE, 1001033, 1001-033, 10129302 , 116471, 11913CN0380, 1191-3CN0380, 11913CN380, 1191-3CN380, 1191-3CNX.380, 11913CNX380, 1191-3CNX380, 11913CNX380LG, 1191-3CNX380LG, 124735, 132821, 190-32UNF .380LONG, 19032UNF380LONG, 208F10380, 208F1-0380, 218018, 41693685, 416936-85, 5325-00-290-4480, 00-290-4480, 5325002904480 , 002904480

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-290-4480	11444 ( INSERT, SCREW THREAD )

Drawings & Photos | NSN 5325-00-290-4480
