NSN 5325-00-597-3304 MS122120, MS122140, MS21208C115

Product Details | SCREW THREAD INSERT

5325-00-597-3304 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS122120, MS122140, MS21208C115, MS21208-C1-15, MS21208C1-15, A11853, A1185-3, A11853CNX932, A1185-3CNX9-32, G65014312, G650143-12, T916011PC101, 492050-280, 60500213, 60-50-0213, 6722436, 813972, 81397200, 813972-00, 01300696006, 11853CN0285, 1185-3CN0285, 1185-3CN-0285, 11853CN285, 1185-3CN-285, 11853CNX285, 1185-3CNX285, 1185-3CNX-285, 1361275102, 1361275-102, 190655, 208C10285, 208C1-0285, 2650-3375GP1 ITEM 3, 26503375GP1ITEM3, 3641014P6, 364-1014P6, 480369PC101, 5325-00-597-3304, 00-597-3304, 5325005973304 , 005973304, 492050280

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-597-3304	11444 ( INSERT, SCREW THREAD )

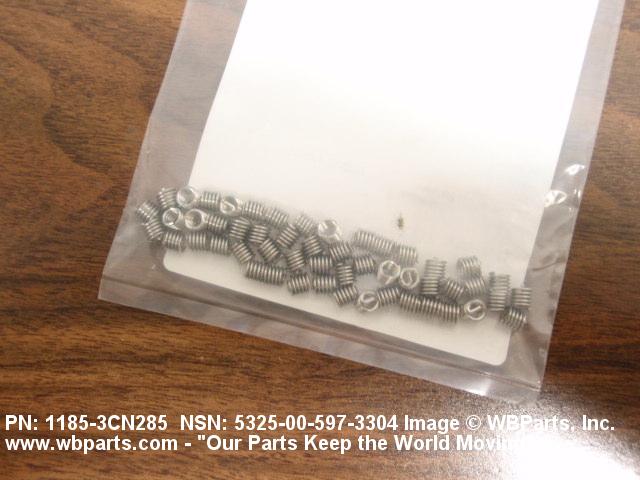

Drawings & Photos | NSN 5325-00-597-3304

Part Number	Request Date	QTY	Origin
MS122120	2025-10-301	140	South Korea
5325-00-597-3304	2024-05-134	5308	DIBBS
MS122120	2022-08-217	50	United States
MS122120	2022-03-75	50	United States
5325-00-597-3304	2020-02-55	11000	DIBBS
MS122120	2018-11-310	3608	Israel
5325-00-597-3304	2018-04-102	2505	DIBBS
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
MS122120	2017-06-165	1	Australia
11853CN285	2015-09-244	3	Portugal
MS122120	2015-05-140	375	US
MS122120	2014-07-195	100	Canada
5325-00-597-3304	2014-03-63	3417	DIBBS
11853CN0285	2012-10-292	8	US
MS122120	2012-05-150	1050	Israel
5325-00-597-3304	2012-03-88	190	United States
5325-00-597-3304	2010-11-333	2000	United States
11853CN285	2010-10-281	50	Poland
MS122120	2009-02-57	16	us
MS122120	2008-08-220	2400	US
MS122120	2008-02-52	2200	Germany
MS122120	2007-11-312	2200	Germany

Cross Reference | NSN 5325-00-597-3304

Part Number	Cage Code	Manufacturer
01300696006	F1699	BOLLHOFF OTALU SA
1185-3CN-0285	20049	THE ELECTRIC TACHOMETER CORP.
1185-3CN-285	26344	NEW HAVEN MFG CORP
1185-3CN0285	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1185-3CNX-285	01767	SNYDERGENERAL CORP DBA AMERICAN AIR FILTER
1185-3CNX285	26344	NEW HAVEN MFG CORP
1361275-102	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
190655	66503	WOODWARD, INC. DBA WOODWARD
190655	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
208C1-0285	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
2650-3375GP1 ITEM 3	51802	HANSOME ENERGY SYSTEMS INC
2650-3375GP1 ITEM 3	95402	ELECTRIC BOAT CORP DBA ELECTRO DYNAMIC
364-1014P6	99687	RAYTHEON CO EQUIPMENT DEVELOPMENT LAB
480369PC101	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
492050-280	30086	SPD ELECTRICAL SYSTEMS, INC
5325005973304	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
60-50-0213	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
6722436	24617	GENERAL MOTORS CORP
6722436	73342	ALLISON TRANSMISSION, INC.
813972	19203	PICATINNY ARSENAL
813972-00	32345	DEFENSE REDUCTION AGENCY
A1185-3	00780	AIRCRAFT SCREW PRODUCTS CO INC
A1185-3CNX9-32	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
G650143-12	92663	AT AND T CO ADVANCED TECHNOLOGY SYSTEMS
MS122120	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS122120	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS122140	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21208-C1-15	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21208C1-15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
T916011PC101	24446	GENERAL ELECTRIC CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-597-3304

Compare

Related Products | NSN 5325-00-597-3304

5325-00-597-3305, 5325-00-597-3306, 5325-00-597-3309, 5325-00-597-3328, 5325-00-597-3329

Technical Data | NSN 5325-00-597-3304

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 7245 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	H1 COIL
LENGTH	0.285 INCHES NOMINAL
INSERT SIZE	0.244 IN MIN 0.259 IN MAX
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS122120

Restrictions/Controls & Freight Information | NSN 5325-00-597-3304

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-597-3304

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
