NSN 5325-00-899-1482 R110SB12, 8386419, 1150019007
Product Details | SCREW THREAD INSERT
5325-00-899-1482 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: R110SB12, 8386419, 1150019007, 115-0019-007, 5325-00-899-1482, 00-899-1482, 5325008991482 , 008991482
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-899-1482 | 11444 ( INSERT, SCREW THREAD ) |

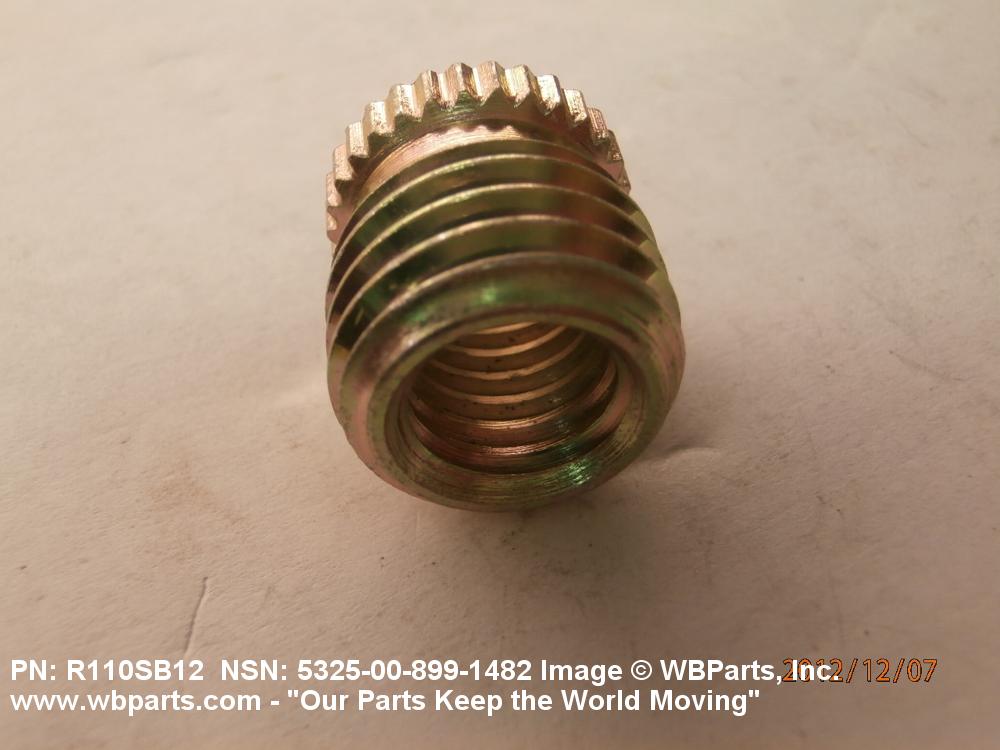

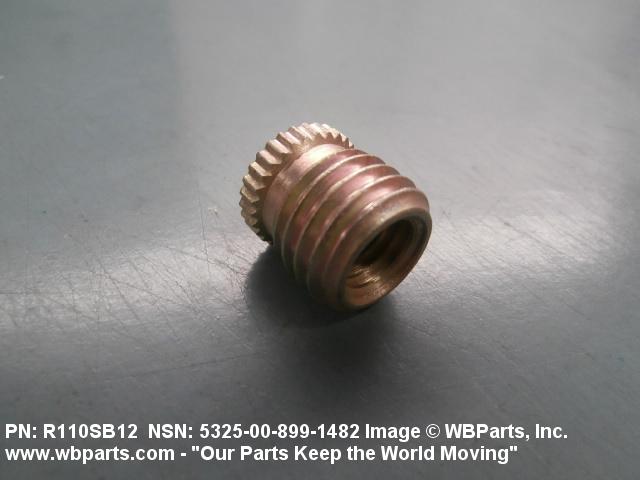

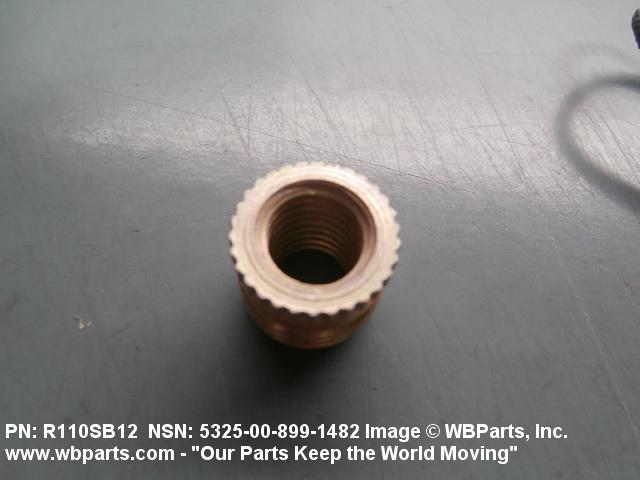

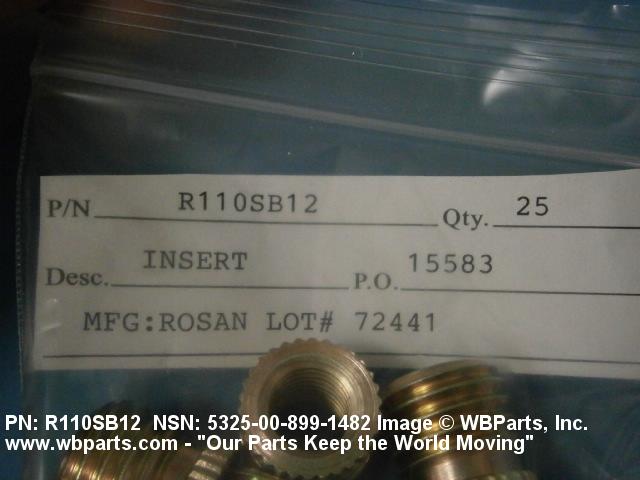

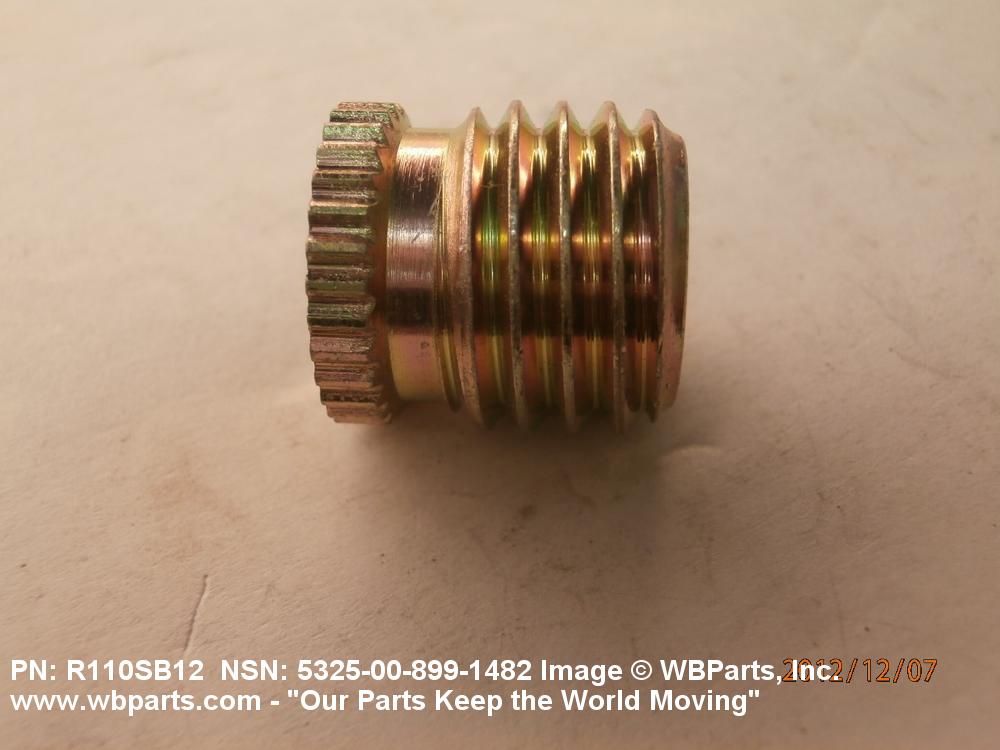

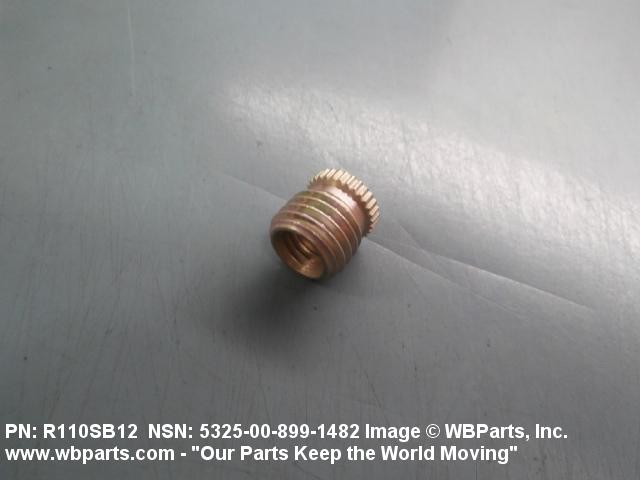

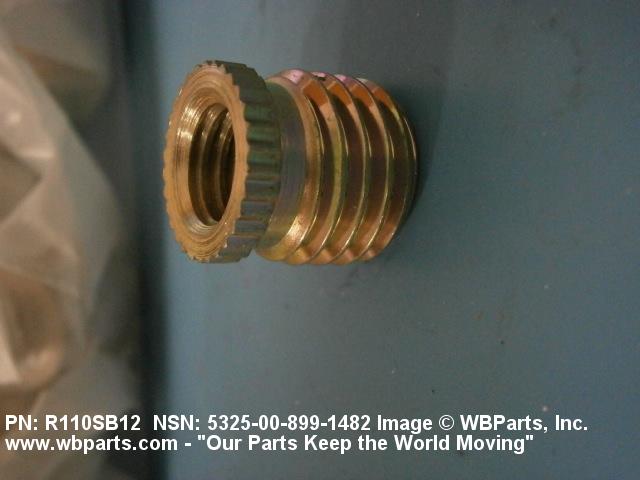

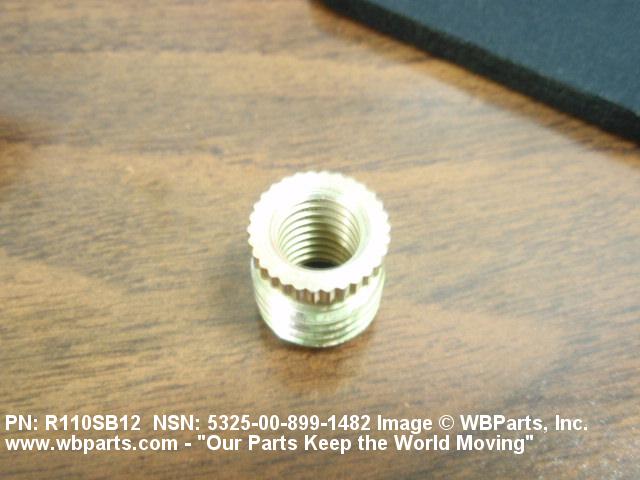

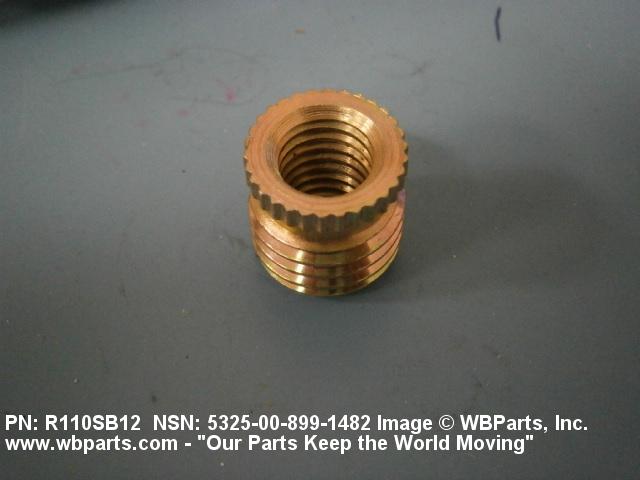

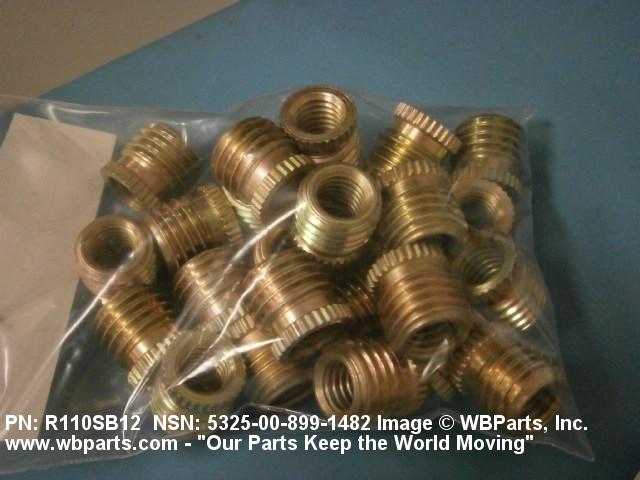

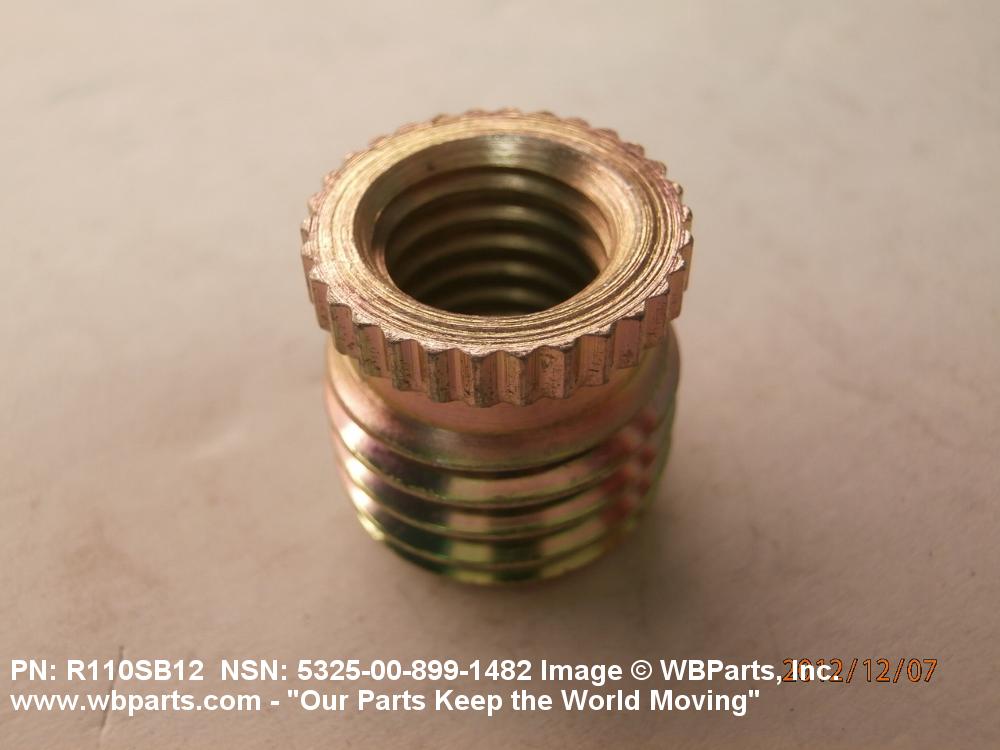

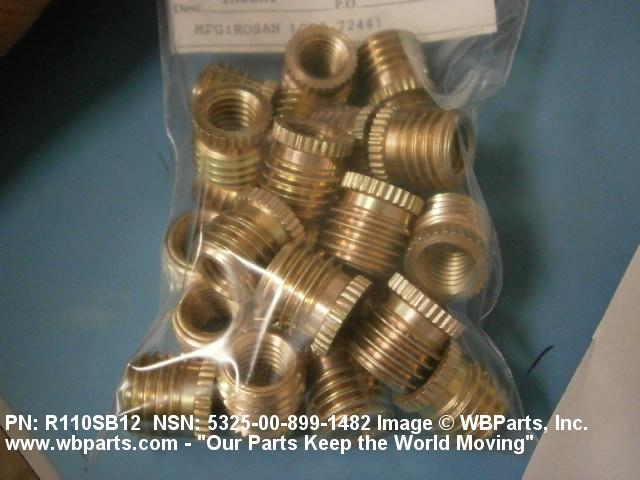

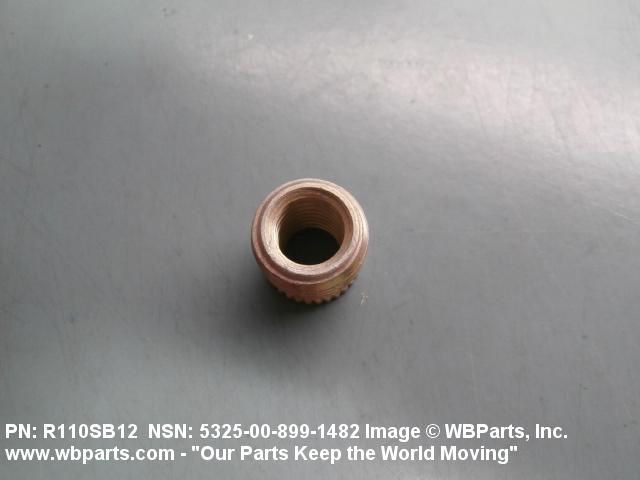

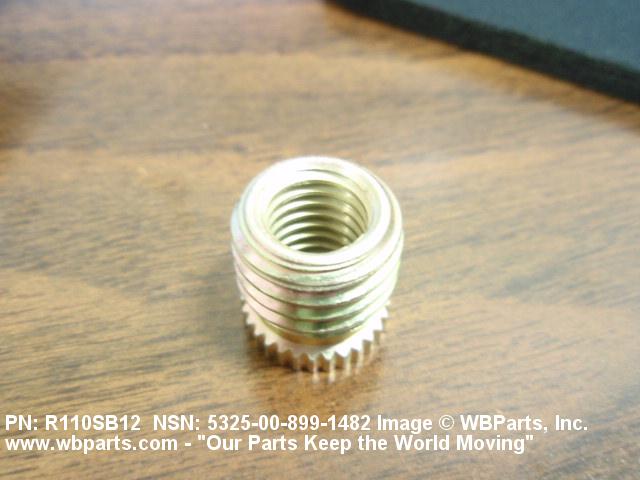

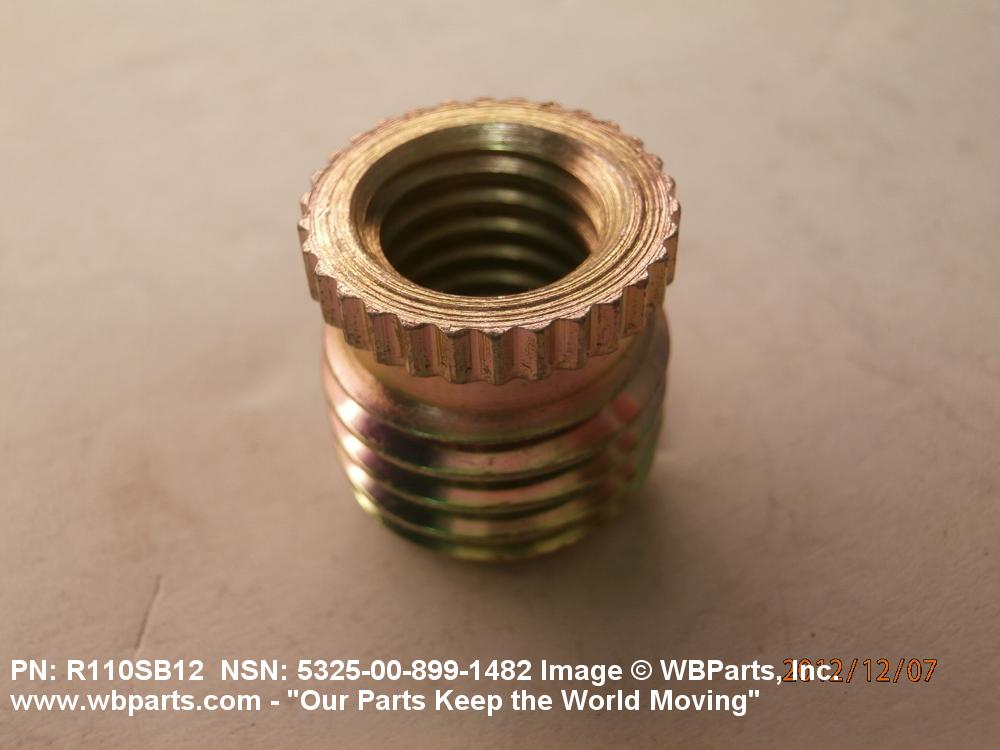

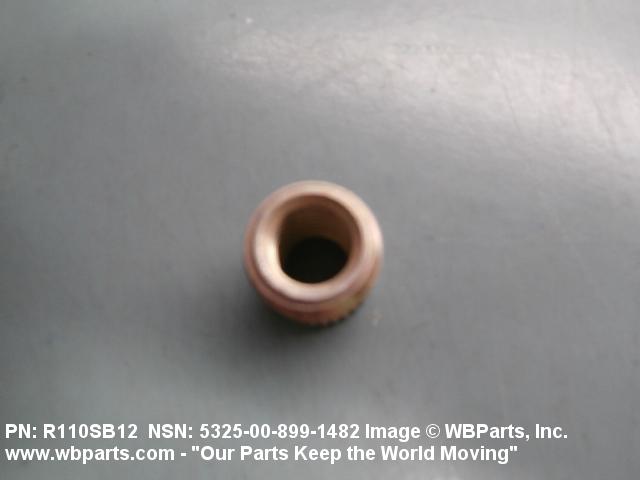

Drawings & Photos | NSN 5325-00-899-1482
Demand History | NSN 5325-00-899-1482
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| R110SB12 | 2016-04-98 | 25 | United States |
| 5325-00-899-1482 | 2015-11-310 | 100 | us |
| R110SB12 | 2015-09-244 | 25 | United States |
| R110SB12 | 2015-04-104 | 25 | United States |
| R110SB12 | 2014-11-308 | 25 | United States |
| R110SB12 | 2014-07-197 | 25 | United States |
| R110SB12 | 2014-01-09 | 25 | United States |
| R110SB12 | 2013-06-179 | 25 | United States |
| R110SB12 | 2013-03-73 | 25 | United States |
| 5325-00-899-1482 | 2013-02-59 | 2094 | DIBBS |
| R110SB12 | 2012-11-333 | 25 | United States |
| R110SB12 | 2012-01-27 | 25 | United States |
| R110SB12 | 2011-12-336 | 25 | United States |
| R110SB12 | 2010-09-265 | 25 | United States |
| R110SB12 | 2010-09-265 | 25 | United States |
Cross Reference | NSN 5325-00-899-1482
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-899-1482
Technical Data | NSN 5325-00-899-1482
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | H3 SERRATED |
| FLANGE DIAMETER | 0.910 INCHES NOMINAL |
| LENGTH | 0.750 INCHES NOMINAL |
| INSERT SIZE | 0.750-10 UNC |
| MANUFACTURERS CODE | 94756 |
| MFR SOURCE CONTROLLING REFERENCE | 115-0019-007 |
Restrictions/Controls & Freight Information | NSN 5325-00-899-1482
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-899-1482
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
