NSN 5325-01-016-4937 MS21209F1, MS21209F110L, MS21209F1-10L

Product Details | SCREW THREAD INSERT

5325-01-016-4937 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS21209F1, MS21209F110L, MS21209F1-10L, 10119198 , 5325-01-016-4937, 01-016-4937, 5325010164937, 010164937

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 FEB 1976	01-016-4937	11444 ( INSERT, SCREW THREAD )

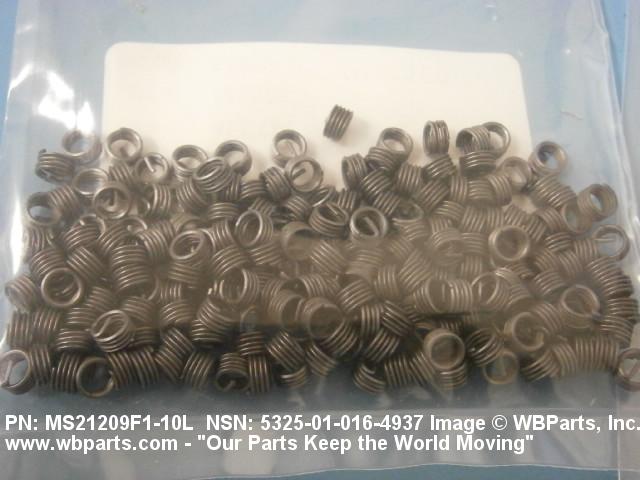

Drawings & Photos | NSN 5325-01-016-4937

Part Number	Request Date	QTY	Origin
MS21209F110L	2025-03-72	4	United States
MS21209F110L	2024-10-297	120	Japan
MS21209F110L	2024-07-191	60	Japan
5325-01-016-4937	2024-06-173	65	United States
MS21209F110L	2023-10-299	3140	United States
MS21209F110L	2022-08-230	50	Taiwan
MS21209F110L	2021-12-342	2136	us
MS21209F110L	2021-09-252	52	United States
MS21209F110L	2021-05-133	2225	US
5325-01-016-4937	2021-04-118	5	US
MS21209F110L	2021-04-103	16	US
MS21209F110L	2021-03-83	120	United States
5325-01-016-4937	2020-11-335	340	US
MS21209F110L	2019-10-297	500	US
5325-01-016-4937	2019-02-41	12000	DIBBS
5325-01-016-4937	2018-11-305	9633	DIBBS
MS21209F110L	2018-07-205	170	United States
5325-01-016-4937	2018-07-205	4	US
5325-01-016-4937	2018-06-173	1050	US
MS21209F110L	2018-06-159	4	us
5325-01-016-4937	2018-06-156	7853	DIBBS
5325-01-016-4937	2018-04-101	8	United States
5325-01-016-4937	2018-04-98	7567	DIBBS
MS21209F110L	2018-02-58	25	United States
MS21209F110L	2017-07-193	80	Australia
MS21209F1-10L	2016-10-301	20	US
MS21209F110L	2016-08-238	30	United States
MS21209F110L	2016-03-82	11392	US
MS21209F110L	2015-09-252	140	United States
MS21209F110L	2014-09-251	10	Australia
MS21209F110L	2014-09-246	2	Australia
5325-01-016-4937	2014-07-192	1300	US
MS21209F110L	2014-04-119	250	US
MS21209F110L	2014-04-119	500	US
MS21209F110L	2014-04-119	750	US
MS21209F110L	2014-02-36	50	US
MS21209F1	2013-10-302	5	United States
MS21209F110L	2012-06-174	50	IN
MS21209F110L	2012-04-119	100	IN
MS21209F110L	2012-01-11	130	United States
MS21209F110L	2011-12-347	400	United States
MS21209F110L	2011-11-313	30	United States
MS21209F110L	2011-11-308	30	United States
MS21209F110L	2011-05-146	5000	US
5325-01-016-4937	2011-05-140	15000	US
5325-01-016-4937	2011-03-70	175	India
MS21209F1	2011-03-70	175	India
MS21209F110L	2011-02-42	200	US
5325-01-016-4937	2011-02-42	100	US
MS21209F1	2010-11-319	104	United States
5325-01-016-4937	2010-10-302	20	US
5325-01-016-4937	2010-09-270	1000	IN
MS21209F110L	2009-06-163	572	United States
5325-01-016-4937	2009-01-20	1300	US
MS21209F110L	2008-10-276	60	United States
5325-01-016-4937	2008-08-234	1050	United States
5325-01-016-4937	2008-08-232	11034	DIBBS
5325-01-016-4937	2008-07-190	8900	DIBBS
5325-01-016-4937	2008-06-155	12339	DIBBS
MS21209F110L	2008-05-142	1500	Italy
5325-01-016-4937	2008-02-59	275	US
5325-01-016-4937	2008-02-38	275	US
5325-01-016-4937	2007-02-59	10	US

Cross Reference | NSN 5325-01-016-4937

Part Number	Cage Code	Manufacturer
MS21209F1	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21209F1-10L	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21209F1-10L	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-016-4937

Compare

Related Products | NSN 5325-01-016-4937

5325-01-016-5168, 5325-01-016-5836, 5325-01-016-5837, 5325-01-016-5889, 5325-01-016-6076

Technical Data | NSN 5325-01-016-4937

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
STYLE DESIGNATOR	H1 COIL
LENGTH	1.000 INCHES NOMINAL
INSERT SIZE	0.236 IN. MIN,0.256 IN. MAX DIA
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21209F1-10L

Restrictions/Controls & Freight Information | NSN 5325-01-016-4937

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-01-016-4937

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
