NSN 5325-01-083-5551 015521, 01-083-5551, 010835551
Product Details | SCREW THREAD INSERT
5325-01-083-5551 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: 015521, 5325-01-083-5551, 01-083-5551, 5325010835551, 010835551
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 SEP 1979 | 01-083-5551 | 11444 ( INSERT, SCREW THREAD ) |
Drawings & Photos | NSN 5325-01-083-5551
Cross Reference | NSN 5325-01-083-5551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 015521 | K6111 | QIOPTIQ LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-083-5551
Technical Data | NSN 5325-01-083-5551
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | OXIDE OVERALL |

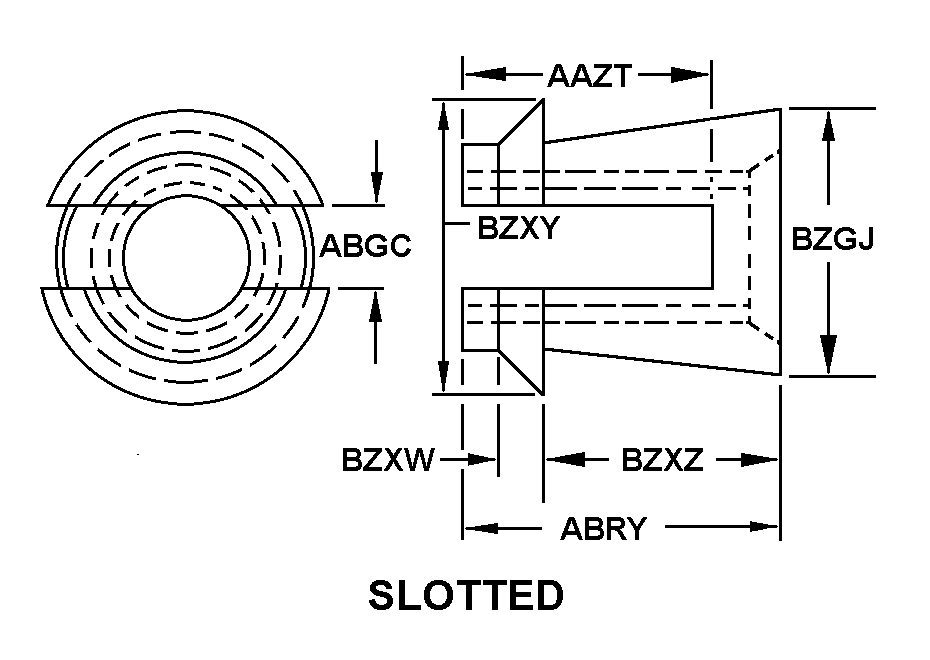

| STYLE DESIGNATOR | H11 SLOTTED |
| SLOT DEPTH | 0.420 INCHES NOMINAL |
| SLOT WIDTH | 0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| LENGTH | 0.615 INCHES NOMINAL |
| FIN WIDTH | 0.125 INCHES NOMINAL |
| FIN DIAMETER | 0.730 INCHES NOMINAL |
| DISTANCE FROM FIN TO INSERT HEAD | 0.195 INCHES NOMINAL |
| INSERT SIZE | 0.345 |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| MANUFACTURERS CODE | K6111 |
| DESIGN CONTROL REFERENCE | 015521 |
