NSN 5325-01-114-0244 M45932/1-14, M45932114, SR258
Product Details | SCREW THREAD INSERT
5325-01-114-0244 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: M45932/1-14, M45932114, SR258, SR2582, SR258-2, MIL-I-45932/1, MILI459321, R1271P06, G48050013, G480500-13, K89024, K8902-4, 10160080 , 9350179, 935017-9, 5325-01-114-0244, 01-114-0244, 5325011140244, 011140244
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 JUN 1981 | 01-114-0244 | 11444 ( INSERT, SCREW THREAD ) |

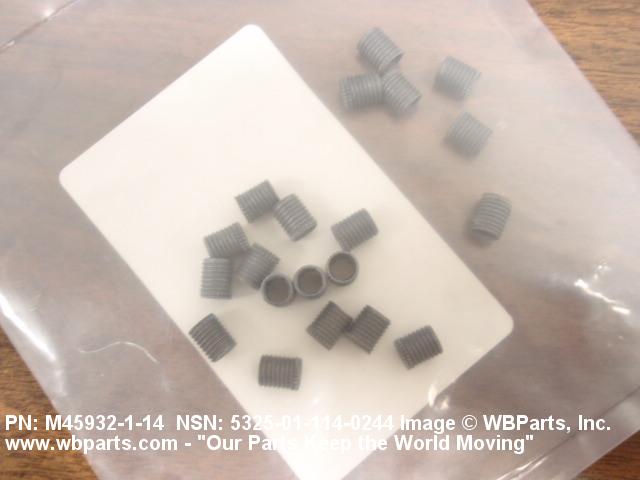

Drawings & Photos | NSN 5325-01-114-0244
Demand History | NSN 5325-01-114-0244
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M45932114 | 2024-02-46 | 5 | US |
| 5325-01-114-0244 | 2023-07-193 | 25 | US |
| 5325-01-114-0244 | 2022-05-150 | 2 | Greece |
| 5325-01-114-0244 | 2018-05-140 | 826 | DIBBS |
| 5325-01-114-0244 | 2018-04-93 | 417 | DIBBS |
| 5325-01-114-0244 | 2017-05-129 | 1828 | DIBBS |
| 5325-01-114-0244 | 2017-01-16 | 897 | DIBBS |
| MIL-I-45932/1 | 2016-03-81 | 18 | United States |
| 5325-01-114-0244 | 2014-06-174 | 1034 | DIBBS |
| M45932/1-14 | 2013-08-229 | 1026 | Canada |
| 5325-01-114-0244 | 2012-06-181 | 850 | DIBBS |
| M45932114 | 2012-04-107 | 40 | United States |
| MILI459321 | 2011-07-196 | 1 | BR |
| MILI459321 | 2011-05-133 | 36 | US |
| M45932114 | 2010-10-281 | 20 | Poland |
| 5325-01-114-0244 | 2010-08-237 | 24 | ES |
| 5325-01-114-0244 | 2010-07-183 | 20 | Poland |
| SR258 | 2010-04-117 | 1 | United States |
| MIL-I-45932/1 | 2009-08-233 | 2 | US |
| 5325-01-114-0244 | 2008-02-53 | 75 | United Kingdom |
| MILI459321 | 2008-01-28 | 25 | Turkey |
| M45932114 | 2007-07-205 | 10 | Greece |
Cross Reference | NSN 5325-01-114-0244
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 935017-9 | 93835 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC SYSTEMS DIVISION |
| G480500-13 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
| K8902-4 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| K8902-4 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| M45932/1-14 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-45932/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| R1271P06 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| R1271P06 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| SR258 | 03350 | GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV |
| SR258 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SR258-2 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
