NSN 5325-01-117-3826 M45932/1-17L, M45932117L, SR314L

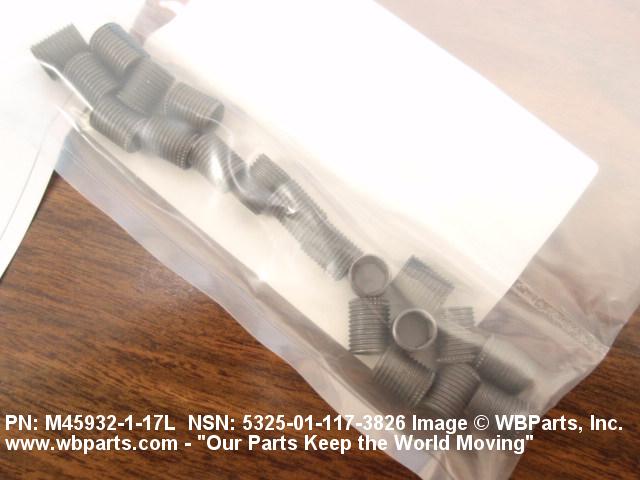

Product Details | SCREW THREAD INSERT
5325-01-117-3826 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: M45932/1-17L, M45932117L, SR314L, K80025, K8002-5, MIL-I-45932/1, MILI459321, R1270P07, 715658-265, 873184, 88401553, 8840155-3, 88401583, 8840158-3, 10018772011, 10018772-011, 10160079 , 4235099010, 423-509-9010, 5325-01-117-3826, 01-117-3826, 5325011173826, 011173826, 715658265
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 AUG 1981 | 01-117-3826 | 11444 ( INSERT, SCREW THREAD ) |
Drawings & Photos | NSN 5325-01-117-3826
Demand History | NSN 5325-01-117-3826
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M45932117L | 2025-09-258 | 61 | United States |
| M45932117L | 2025-06-156 | 52 | United States |
| 5325-01-117-3826 | 2025-04-93 | 55 | United States |
| 5325-01-117-3826 | 2024-09-270 | 7 | DIBBS |
| 5325-01-117-3826 | 2024-09-262 | 7 | DIBBS |
| 5325-01-117-3826 | 2024-05-151 | 5 | US |
| SR314L | 2023-10-276 | 405 | United States |
| SR314L | 2023-07-209 | 45 | United States |
| SR314L | 2023-07-209 | 165 | United States |
| M45932117L | 2023-02-39 | 34 | United States |
| 5325-01-117-3826 | 2022-02-41 | 2536 | DIBBS |
| 5325-01-117-3826 | 2021-12-344 | 18 | Philippines |
| 5325-01-117-3826 | 2021-11-307 | 2025 | DIBBS |
| M45932117L | 2021-10-284 | 5 | United States |
| 5325-01-117-3826 | 2021-09-266 | 1311 | DIBBS |
| 5325-01-117-3826 | 2019-01-22 | 2222 | DIBBS |
| 5325-01-117-3826 | 2017-08-239 | 1466 | DIBBS |
| 5325-01-117-3826 | 2016-12-353 | 5965 | DIBBS |
| 5325-01-117-3826 | 2016-08-244 | 1824 | DIBBS |
| MIL-I-45932/1 | 2016-03-81 | 18 | United States |
| 5325-01-117-3826 | 2015-11-308 | 1 | Philippines |
| M45932117L | 2015-05-139 | 40 | United States |
| 5325-01-117-3826 | 2015-01-14 | 3447 | DIBBS |
| 5325-01-117-3826 | 2014-10-300 | 2722 | DIBBS |
| 5325-01-117-3826 | 2014-04-96 | 2722 | DIBBS |
| M45932117L | 2012-04-111 | 30 | United States |
| 5325-01-117-3826 | 2011-09-244 | 6591 | DIBBS |
| MILI459321 | 2011-07-196 | 1 | BR |
| MILI459321 | 2011-05-133 | 36 | US |
| 5325-01-117-3826 | 2010-12-341 | 80 | US |
| M45932117L | 2010-10-281 | 4 | US |
| M45932117L | 2010-10-281 | 20 | Poland |
| 5325-01-117-3826 | 2010-08-238 | 3692 | DIBBS |
| 5325-01-117-3826 | 2010-07-183 | 20 | Poland |
| 5325-01-117-3826 | 2010-02-47 | 5 | US |
| SR314L | 2010-02-42 | 6 | US |
| SR314L | 2010-01-13 | 700 | United States |
| MIL-I-45932/1 | 2009-08-233 | 2 | US |
| MILI459321 | 2008-01-28 | 25 | Turkey |
Cross Reference | NSN 5325-01-117-3826
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10018772-011 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 423-509-9010 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 715658-265 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 873184 | 19203 | PICATINNY ARSENAL |
| 8840155-3 | 19203 | PICATINNY ARSENAL |
| 8840158-3 | 19203 | PICATINNY ARSENAL |
| K8002-5 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| M45932/1-17L | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-45932/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| R1270P07 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| SR314L | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
