NSN 5325-01-173-5663 MS51831CA204L, 01-173-5663, 011735663
Product Details | SCREW THREAD INSERT
5325-01-173-5663 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS51831CA204L, 5325-01-173-5663, 01-173-5663, 5325011735663, 011735663
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAR 1984 | 01-173-5663 | 11444 ( INSERT, SCREW THREAD ) |

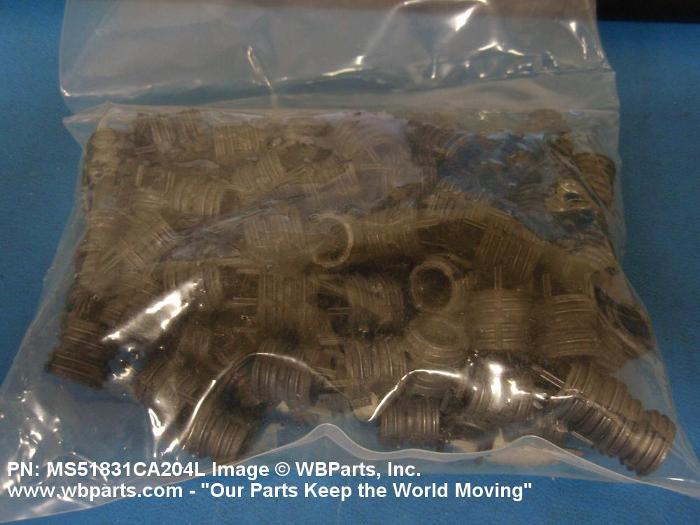

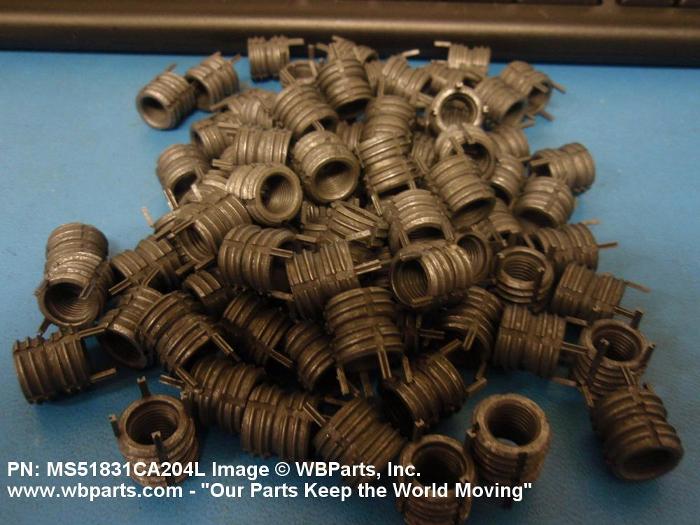

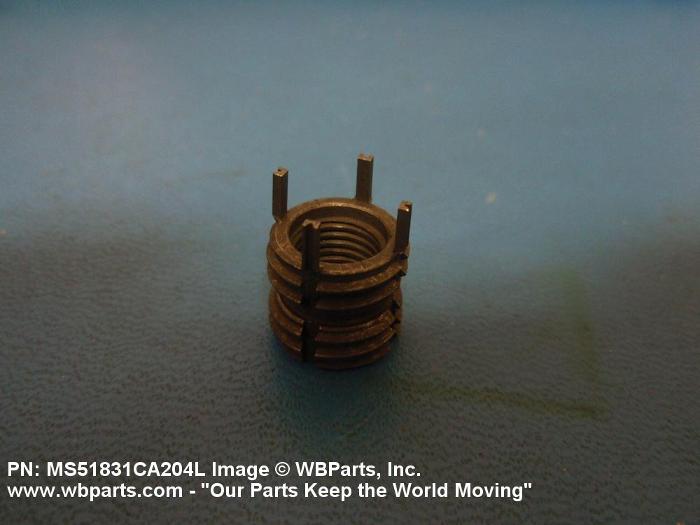

Drawings & Photos | NSN 5325-01-173-5663
Demand History | NSN 5325-01-173-5663
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS51831CA204L | 2025-03-84 | 8 | Japan |
| MS51831CA204L | 2024-02-38 | 30 | United States |
| MS51831CA204L | 2023-12-355 | 70 | US |
| 5325-01-173-5663 | 2021-05-145 | 25 | US |
| MS51831CA204L | 2020-10-280 | 48 | Germany |
| 5325-01-173-5663 | 2018-11-305 | 27 | DIBBS |
| 5325-01-173-5663 | 2018-09-256 | 72 | DIBBS |
| 5325-01-173-5663 | 2018-06-156 | 31 | DIBBS |
| MS51831CA204L | 2017-01-09 | 69 | United States |
| 5325-01-173-5663 | 2015-11-322 | 18 | DIBBS |
| 5325-01-173-5663 | 2014-02-56 | 9 | DIBBS |
| 5325-01-173-5663 | 2013-11-332 | 9 | DIBBS |
| 5325-01-173-5663 | 2011-12-354 | 2 | DIBBS |
| 5325-01-173-5663 | 2010-08-214 | 30 | US |
| 5325-01-173-5663 | 2009-06-176 | 2 | DIBBS |
| 5325-01-173-5663 | 2008-09-246 | 1 | DIBBS |
| 5325-01-173-5663 | 2008-08-229 | 1 | DIBBS |
| MS51831CA204L | 2008-01-31 | 16 | US |
| MS51831CA204L | 2007-04-98 | 310 | us |
| 5325-01-173-5663 | 2007-03-82 | 300 | us |
Cross Reference | NSN 5325-01-173-5663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51831CA204L | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-173-5663
Technical Data | NSN 5325-01-173-5663
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | H25 GROOVED KEYLOCK |
| LENGTH | 0.500 INCHES NOMINAL |
| INTERNAL THREAD RELIEF DEPTH | 0.070 INCHES NOMINAL |
| FULL INTERNAL THREAD LENGTH | 0.430 INCHES NOMINAL |
| INSERT SIZE | 0.5625-12 UNC 2A |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| FEATURES PROVIDED | INDIVIDUALLY KEYED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51831CA204L |
Restrictions/Controls & Freight Information | NSN 5325-01-173-5663
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-173-5663
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
