NSN 5325-01-304-1823 MS2798012N, MS27980-12N, 01-304-1823

Product Details | SNAP FASTENER STUD

5325-01-304-1823 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.

Part Alternates: MS2798012N, MS27980-12N, 5325-01-304-1823, 01-304-1823, 5325013041823, 013041823

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 JUL 1989	01-304-1823	16550 ( STUD, SNAP FASTENER )

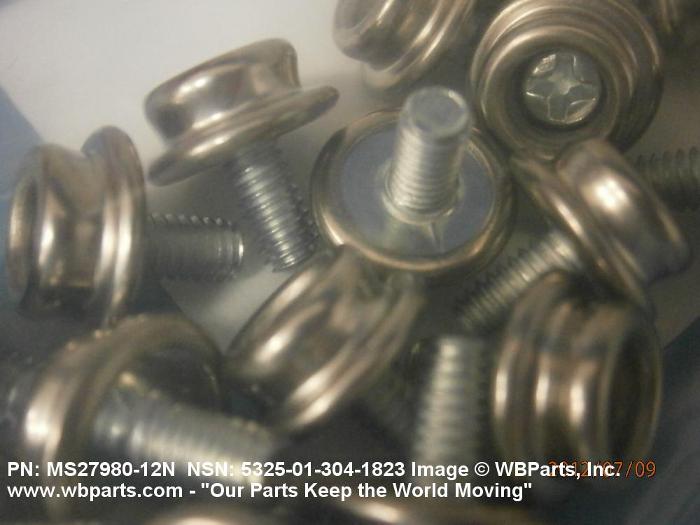

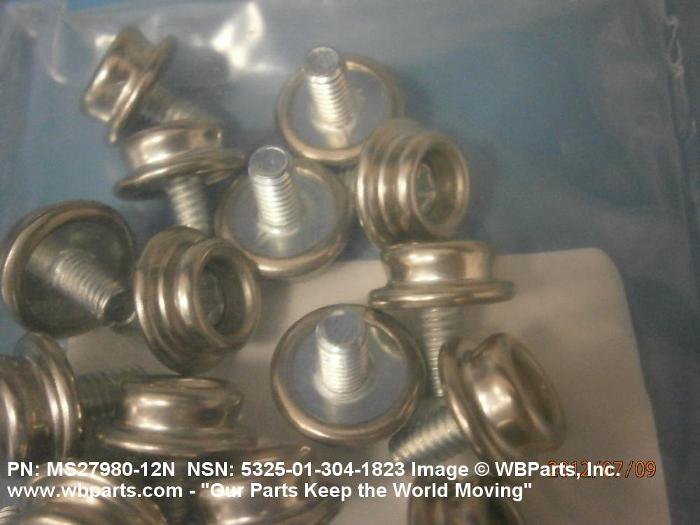

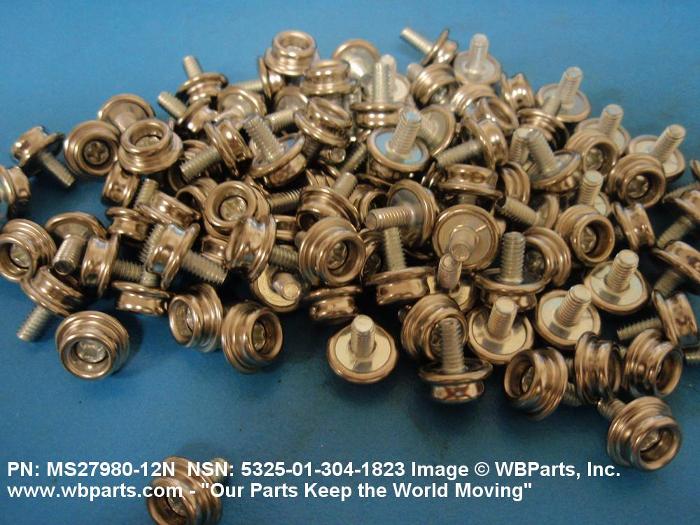

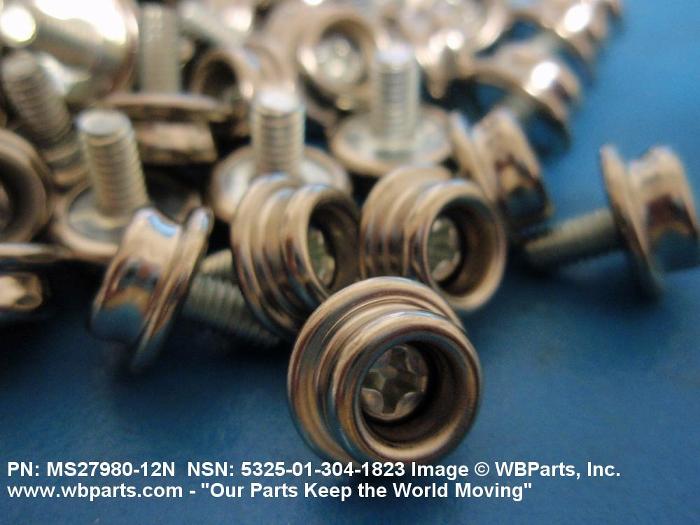

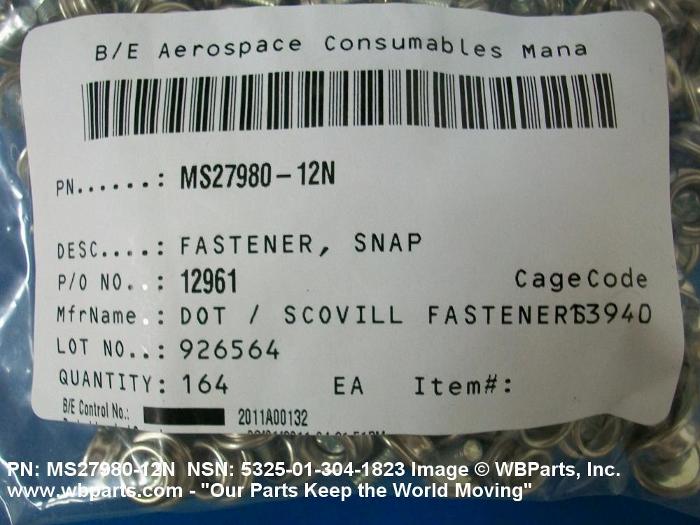

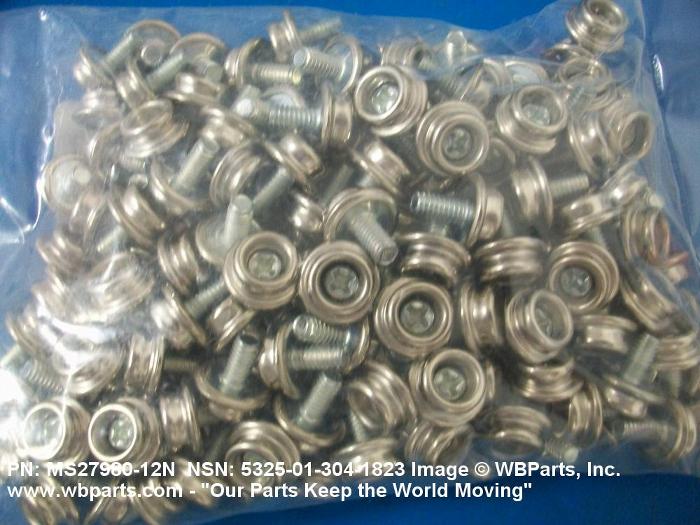

Drawings & Photos | NSN 5325-01-304-1823

Part Number	Request Date	QTY	Origin
MS2798012N	2025-10-288	2000	Netherlands
MS2798012N	2025-08-218	2000	Netherlands
MS2798012N	2025-04-106	2000	Netherlands
5325-01-304-1823	2021-08-220	55	DIBBS
5325-01-304-1823	2020-04-118	27	DIBBS
5325-01-304-1823	2019-07-196	10	SA
MS2798012N	2018-11-319	500	Canada
MS2798012N	2018-11-319	1000	Canada
5325-01-304-1823	2016-11-321	100	United States
MS2798012N	2014-11-317	25	us
5325-01-304-1823	2012-08-236	68	us
5325-01-304-1823	2012-08-236	68	United States
MS2798012N	2012-06-179	8	United States
MS2798012N	2011-07-209	164	United States
5325-01-304-1823	2011-04-117	10000	US
MS2798012N	2011-03-75	100	United States
5325-01-304-1823	2008-02-35	40	DIBBS
MS2798012N	2007-05-129	30	US

Cross Reference | NSN 5325-01-304-1823

Part Number	Cage Code	Manufacturer
MS27980-12N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS27980-12N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-304-1823

Compare

Related Products | NSN 5325-01-304-1823

5325-01-304-1840, 5325-01-304-2404, 5325-01-304-2405, 5325-01-304-2406, 5325-01-304-2407

Technical Data | NSN 5325-01-304-1823

Characteristic	Specifications
MATERIAL	COPPER ALLOY 260 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE OR MIL-C-50 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	NICKEL OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SNAP FASTENER STUD STYLE	12 STUD
STUD SHANK LENGTH	0.312 INCHES NOMINAL
STUD OVERALL LENGTH	0.500 INCHES NOMINAL
STUD HEAD DIAMETER	0.391 INCHES NOMINAL
STUD RETENTION METHOD	SCREW BASE
THREAD SIZE AND SERIES/TYPE DESIGNATOR	0.164-32 UNC

Restrictions/Controls & Freight Information | NSN 5325-01-304-1823

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-01-304-1823

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	TG	TG:AF SICA RESIDUAL MMAC-WR-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
