NSN 5325-01-395-9211 ET223AA32C, ET223AA3-2C, 01-395-9211
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-395-9211 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: ET223AA32C, ET223AA3-2C, 5325-01-395-9211, 01-395-9211, 5325013959211, 013959211
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 SEP 1994 | 01-395-9211 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

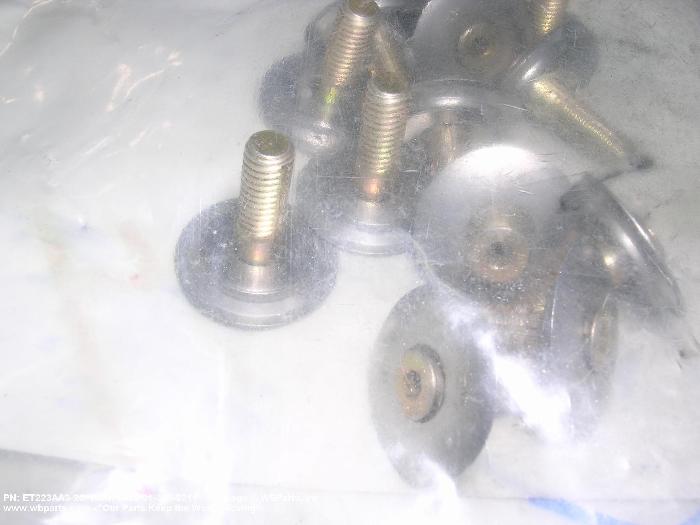

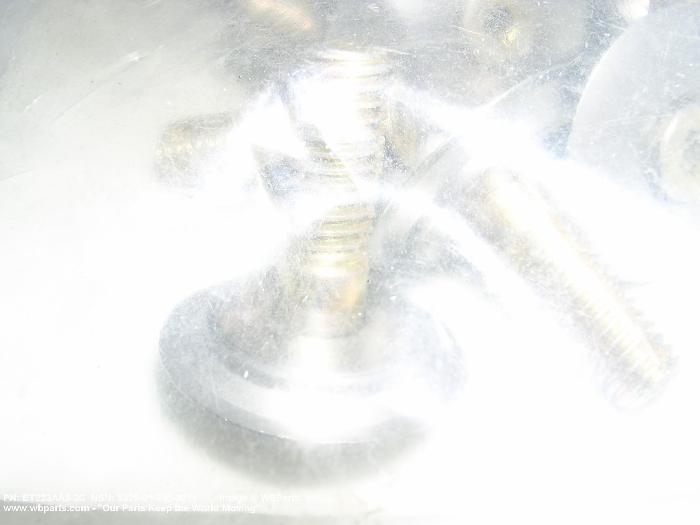

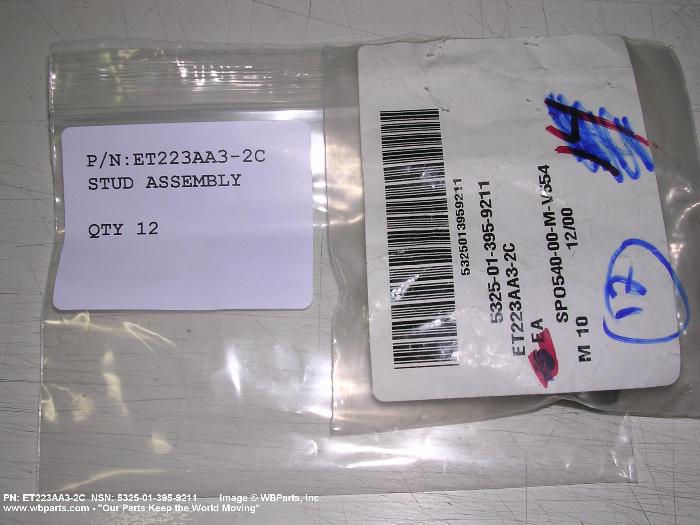

Drawings & Photos | NSN 5325-01-395-9211
Demand History | NSN 5325-01-395-9211
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ET223AA32C | 2024-06-159 | 100 | KR |
| ET223AA32C | 2024-06-155 | 100 | KR |
| ET223AA3-2C | 2022-02-55 | 100 | DIBBS |
| ET223AA3-2C | 2022-02-44 | 100 | DIBBS |
| ET223AA3-2C | 2019-04-106 | 100 | DIBBS |
| 5325-01-395-9211 | 2017-05-145 | 21 | DIBBS |
| 5325-01-395-9211 | 2014-10-276 | 21 | KR |
| ET223AA32C | 2014-09-272 | 25 | KR |
| 5325-01-395-9211 | 2012-01-26 | 20 | US |
| 5325-01-395-9211 | 2009-11-328 | 60 | US |
| 5325-01-395-9211 | 2009-11-328 | 100 | US |
| 5325-01-395-9211 | 2007-10-284 | 12 | United States |
Cross Reference | NSN 5325-01-395-9211
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ET223AA3-2C | 84256 | AVIBANK MFG., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-395-9211
Related Products | NSN 5325-01-395-9211
Technical Data | NSN 5325-01-395-9211
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BARREL |
| SURFACE TREATMENT | CADMIUM BARREL |
| STUD ASSEMBLY STYLE | 23 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.372 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.672 INCHES NOMINAL |
| STUD DIAMETER | 0.189 INCHES NOMINAL |
| STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-30 UNF |
| MATERIAL ACCOMMODATED THICKNESS | ANY ACCEPTABLE |
| III END ITEM IDENTIFICATION | ACTS P4B PODS |
| MANUFACTURERS CODE | 84256 |
| DESIGN CONTROL REFERENCE | ET223AA3-2C |
Restrictions/Controls & Freight Information | NSN 5325-01-395-9211
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-395-9211
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TA | SU:TRAINING AIDS AND DEVICES |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
