NSN 5325-01-493-7008 MS2797713N, MS27977-13N, 01-493-7008
Product Details | SNAP FASTENER STUD
5325-01-493-7008 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Part Alternates: MS2797713N, MS27977-13N, 5325-01-493-7008, 01-493-7008, 5325014937008, 014937008
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JAN 2002 | 01-493-7008 | 16550 ( STUD, SNAP FASTENER ) |

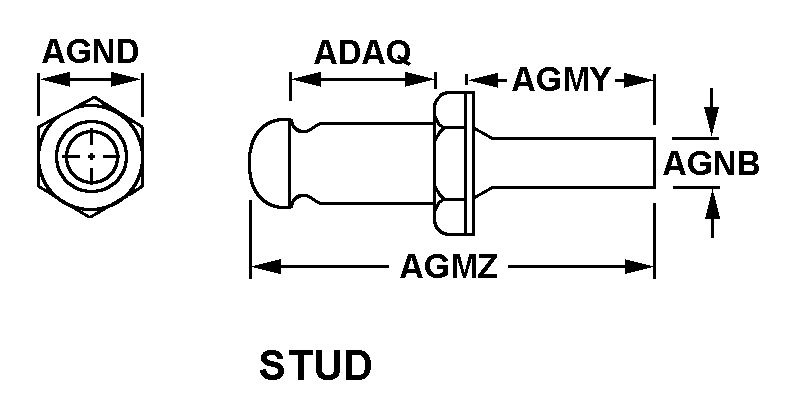

Drawings & Photos | NSN 5325-01-493-7008
Demand History | NSN 5325-01-493-7008
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2797713N | 2013-03-81 | 10 | Canada |
Cross Reference | NSN 5325-01-493-7008
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27977-13N | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-493-7008
Technical Data | NSN 5325-01-493-7008
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| SNAP FASTENER STUD STYLE | 4 STUD |
| BODY LENGTH | 0.188 INCHES NOMINAL |
| STUD SHANK LENGTH | 0.375 INCHES NOMINAL |
| STUD OVERALL LENGTH | 0.766 INCHES NOMINAL |
| STUD SHANK DIAMETER | 0.164 INCHES NOMINAL |
| STUD BASE WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
| STUD RETENTION METHOD | SCREW |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.164-32 UNC |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27977-13N |
Restrictions/Controls & Freight Information | NSN 5325-01-493-7008
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
