NSN 5330-00-171-5048 MS2878212, MS28782-12, AN6246B12

Product Details | PACKING RETAINER

5330-00-171-5048 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.

Part Alternates: MS2878212, MS28782-12, AN6246B12, SR614412, SR6144-12, LA405-41110 ITEM 13, LA40541110ITEM13, 57622001506682REVAPC12, 576-2200-1506682REVAPC12, 6002148PC36, 6002-148PC36, 876412, 8764-12, 10338993 , 203219, 21303 FIND 48, 21303FIND48, 21835 FIND 66, 21835FIND66, 25704281264260, 25704-281264-26-0, 384S12, 4903983015PC24, 4903-983015PC24, 4903983016PC26, 4903-983016PC26, 5048B3REVAPC12, 5048X0PC44, 52125 FN 86, 52125FN86, 5330-00-171-5048, 00-171-5048, 5330001715048, 001715048

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-171-5048	13706 ( RETAINER, PACKING )

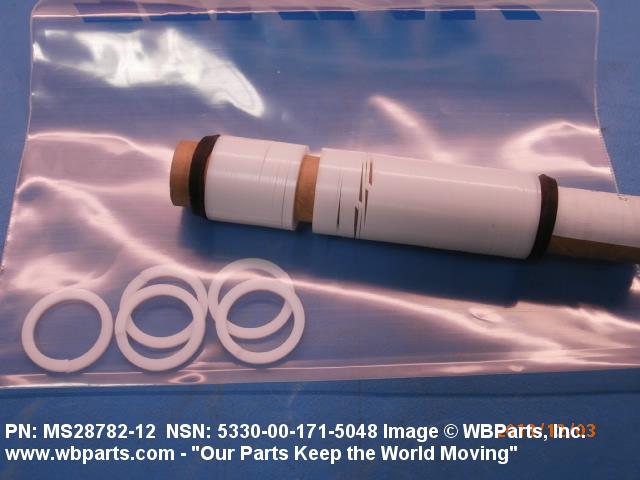

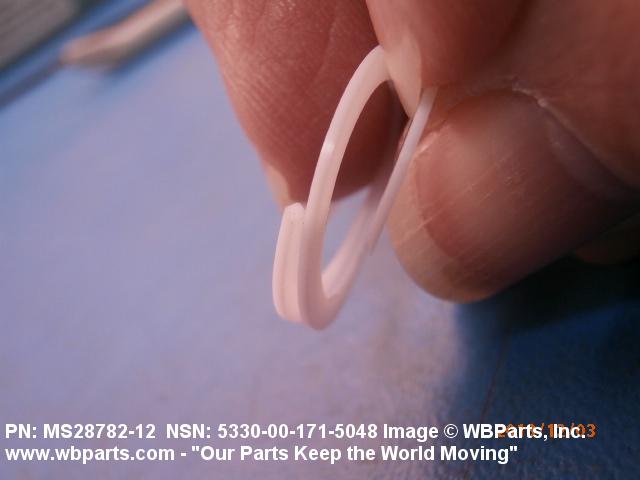

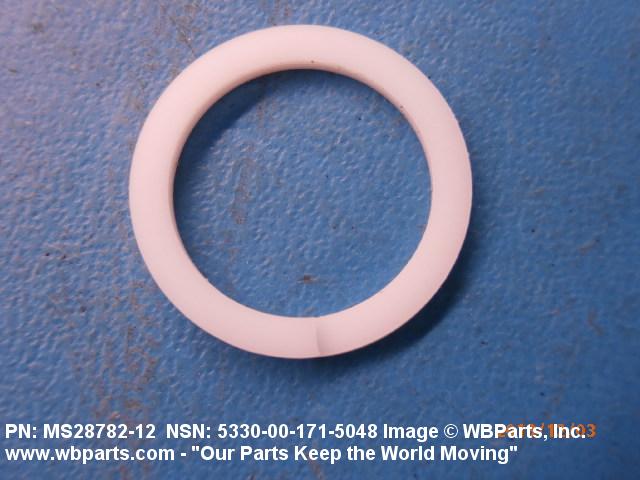

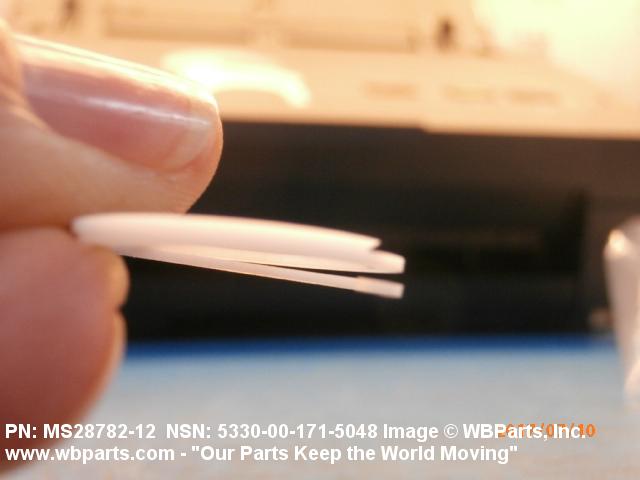

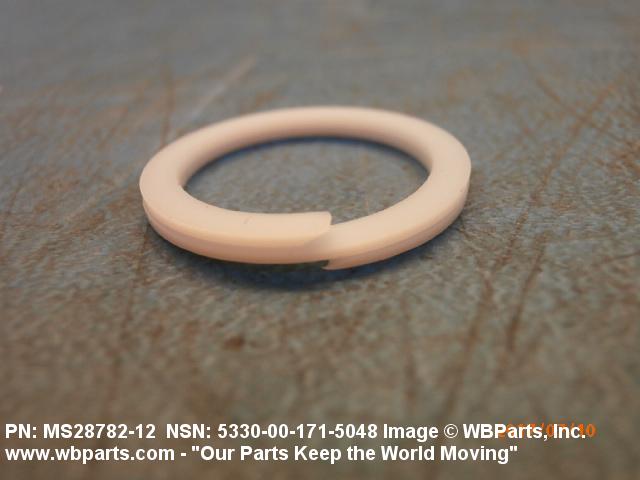

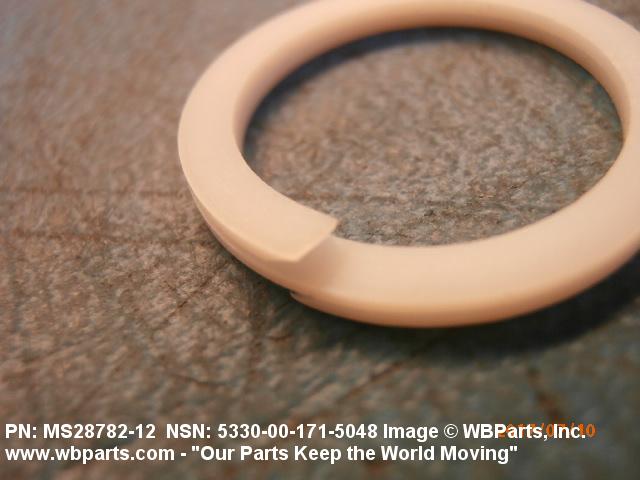

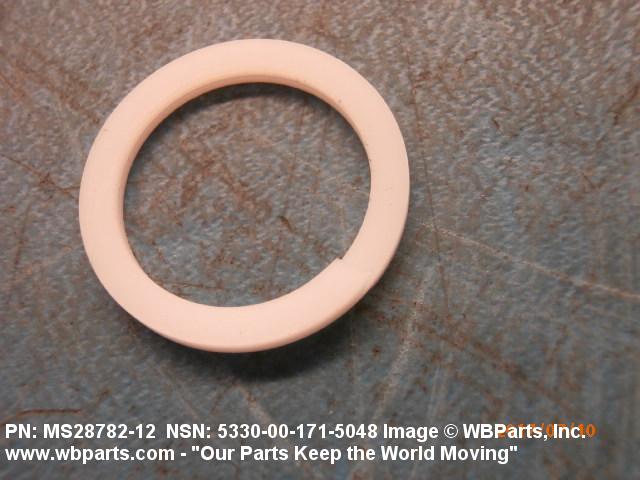

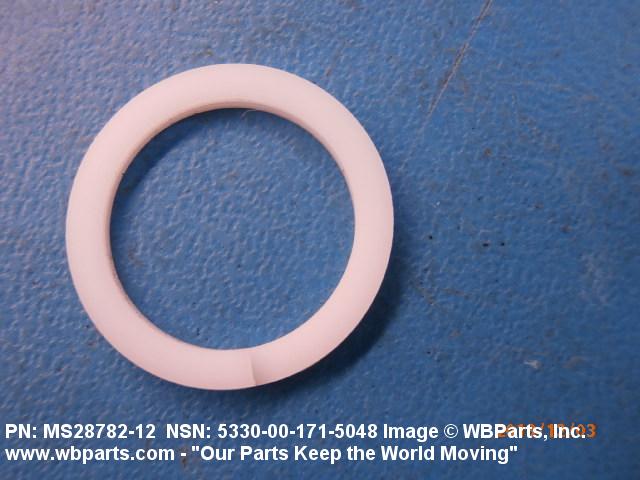

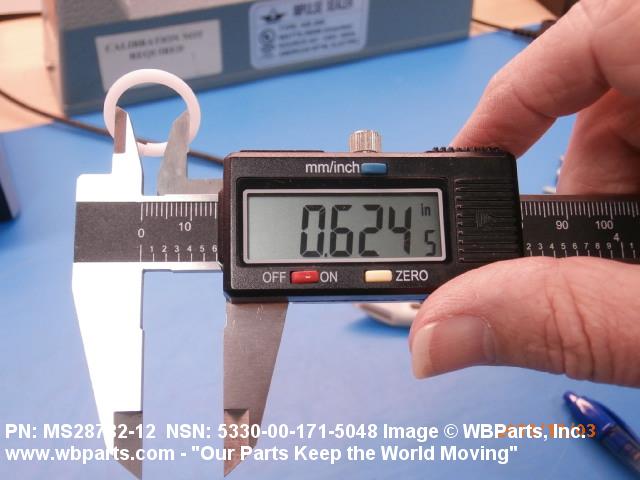

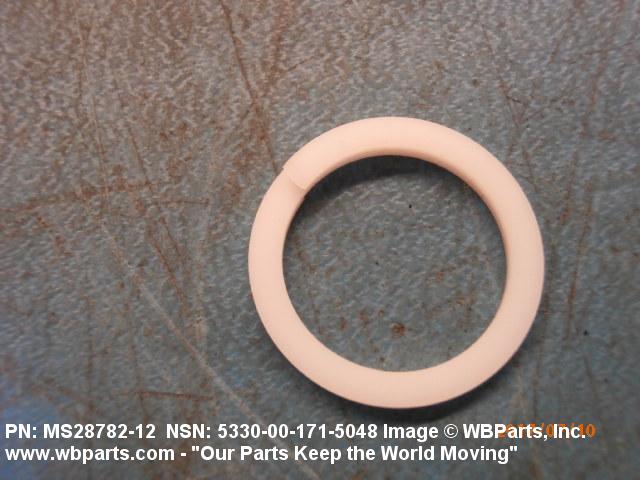

Drawings & Photos | NSN 5330-00-171-5048

Part Number	Request Date	QTY	Origin
5330-00-171-5048	2019-07-207	5	Canada
MS2878212	2017-07-184	20	United States
5330-00-171-5048	2017-03-61	6	DIBBS-KIT
MS28782-12	2017-03-61	6
5330-00-171-5048	2013-11-326	55	United States
5330-00-171-5048	2011-01-25	1	US
5330-00-171-5048	2009-09-257	10	US
5330-00-171-5048	2009-04-120	225	US

Cross Reference | NSN 5330-00-171-5048

Part Number	Cage Code	Manufacturer
203219	F5316	GIAT INDUSTRIES CENTRE DE TARBES
21303 FIND 48	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21835 FIND 66	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
25704-281264-26-0	D1839	BUNDESAMT FUER AUSRUESTUNG,
25704-281264-26-0	D2692	KRAUSS-MAFFEI WEGMANN GMBH & CO. KG-WERK KASSEL-
384S12	06840	BENDIX CORP THE
384S12	14894	ALLIED AUTOMOTIVE ALLIED AFTERMARKET DIV
4903-983015PC24	80064	NAVAL SHIP SYSTEMS COMMAND
4903-983016PC26	80064	NAVAL SHIP SYSTEMS COMMAND
5048B3REVAPC12	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
5048X0PC44	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
52125 FN 86	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
576-2200-1506682REVAPC12	80064	NAVAL SHIP SYSTEMS COMMAND
6002-148PC36	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
8764-12	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
AN6246B12	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
LA405-41110 ITEM 13	07270	MOOG INC.
MS28782-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS28782-12	D5589	FEINMECHANISCHE WERKE MAINZ GMBH
MS28782-12	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS28782-12	D9893	LIEBHERR-AEROSPACE LINDENBERG GMBH
SR6144-12	97820	SHAMBAN POLYMER TECH GROUP
SR6144-12	R1120	SATAIR A/S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-171-5048

Compare

Related Products | NSN 5330-00-171-5048

5330-00-171-5049, 5330-00-171-5050, 5330-00-171-5051, 5330-00-171-5052, 5330-00-171-5053

Technical Data | NSN 5330-00-171-5048

Characteristic	Specifications
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-R-8791 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
CROSS-SECTIONAL SHAPE STYLE	D90 SQUARE

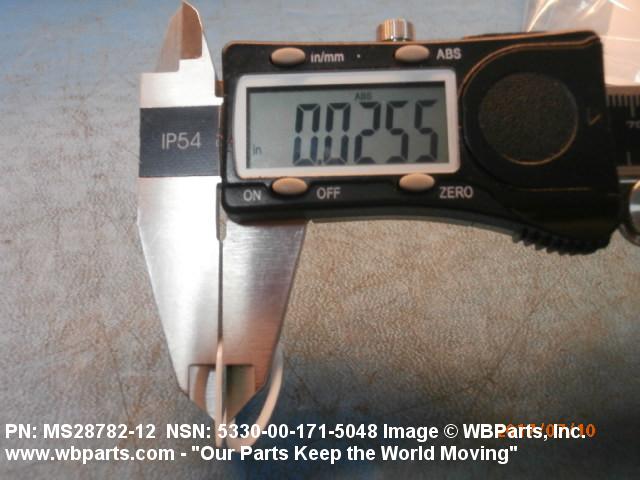

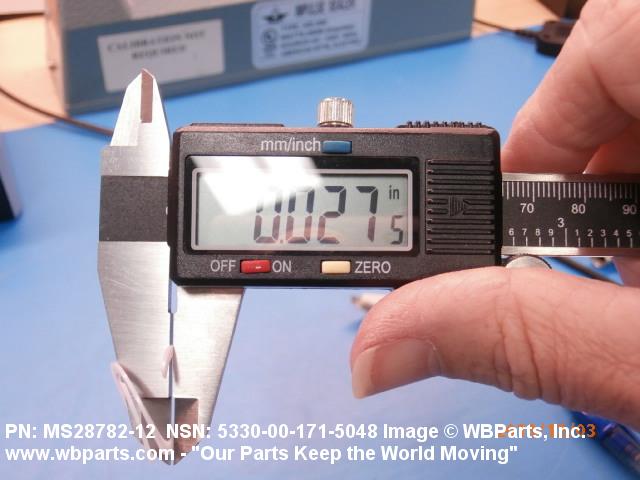

CROSS-SECTIONAL THICKNESS	0.025 INCHES MINIMUM AND 0.029 INCHES MAXIMUM

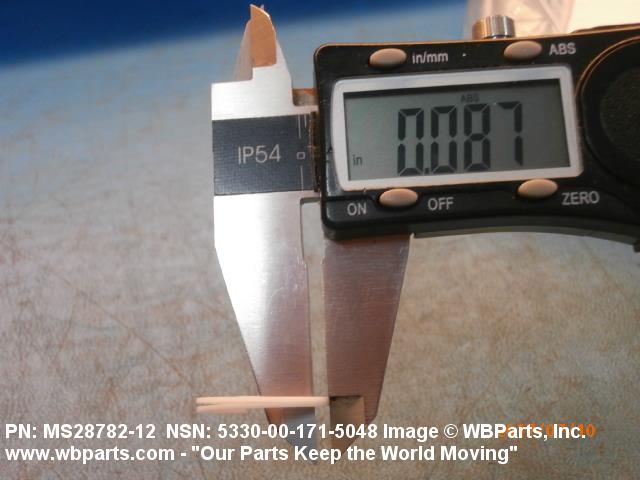

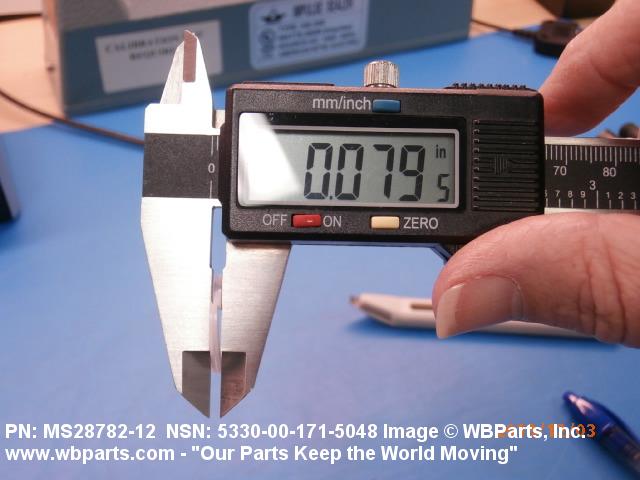

CROSS-SECTIONAL HEIGHT	0.075 INCHES MINIMUM AND 0.087 INCHES MAXIMUM

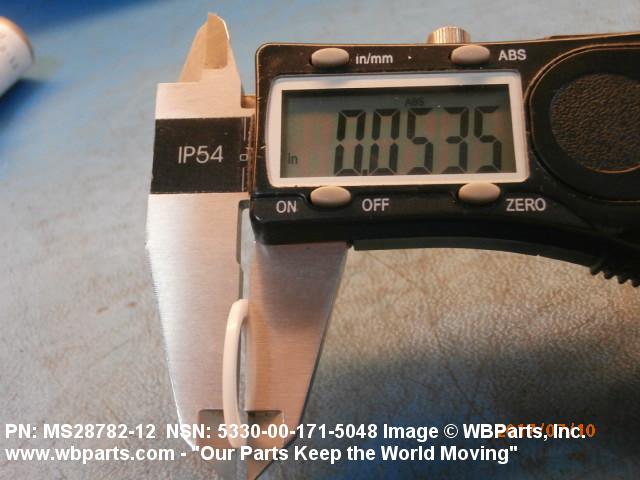

DISTANCE BETWEEN ENDS	0.032 INCHES MINIMUM AND 0.078 INCHES MAXIMUM

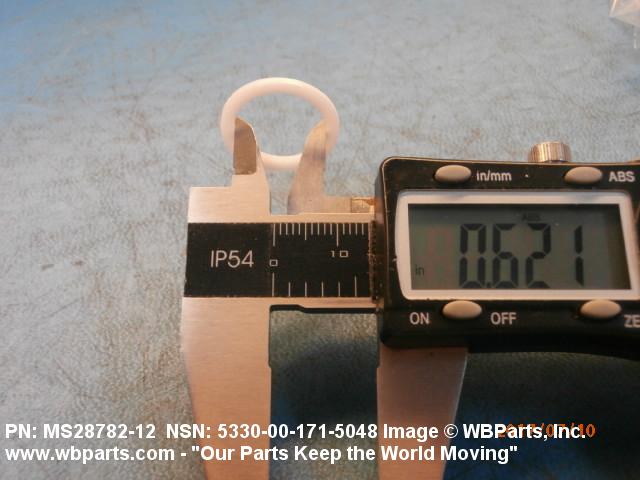

CENTER HOLE DIAMETER	0.625 INCHES NOMINAL

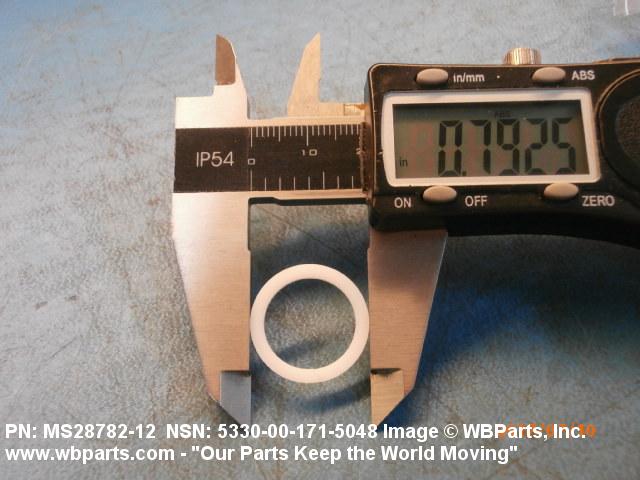

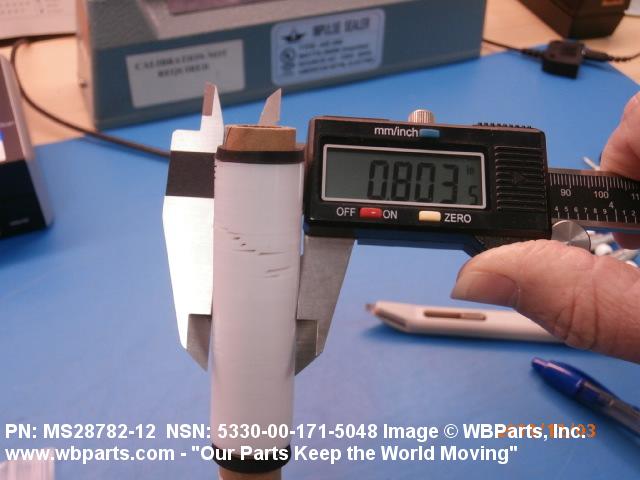

PERIPHERAL DIAMETER	0.799 INCHES MINIMUM AND 0.803 INCHES MAXIMUM
ANGLE	25.0 DEGREES MINIMUM AND 35.0 DEGREES MAXIMUM
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS28782-12

Restrictions/Controls & Freight Information | NSN 5330-00-171-5048

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-00-171-5048

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package
