NSN 5330-00-171-5073 MS2878229, MS28782-29, MS35803326
Product Details | PACKING RETAINER
5330-00-171-5073 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: MS2878229, MS28782-29, MS35803326, MS35803-326, R350229, R3502-29, 1276-08-129, 38326B, 56912011190700ALTCPC42, 569-1201-1190700ALTCPC42, 5744105812674REVBPC46, 574-4105-812674REVBPC46, 5775151608454REVAPC15, 577-515-1608454REVAPC15, 57824091573044REVAPC22, 578-2409-1573044REVAPC22, 5805151700942PC15, 580-515-1700942PC15, 5931231862209PC29, 593-123-1862209PC29, 786312REVAPC22, 7863-12REVAPC22, 970-41705 ITEM 28, 97041705ITEM28, 982201, 5330-00-171-5073, 00-171-5073, 5330001715073, 127608129, 001715073
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-171-5073 | 13706 ( RETAINER, PACKING ) |

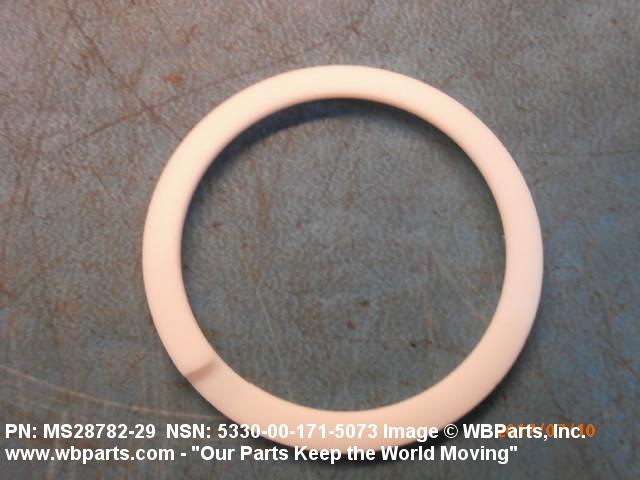

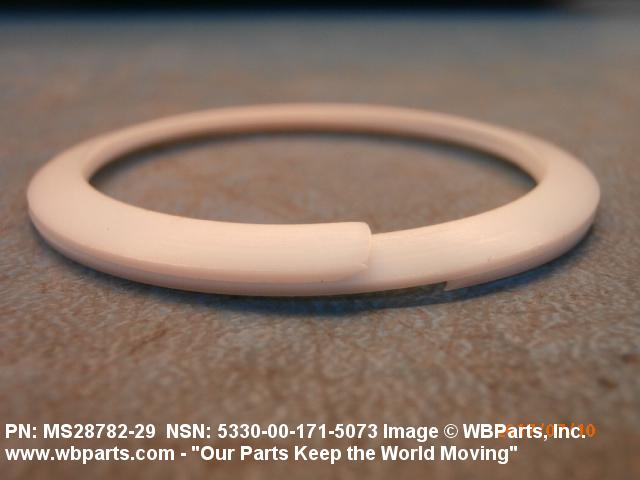

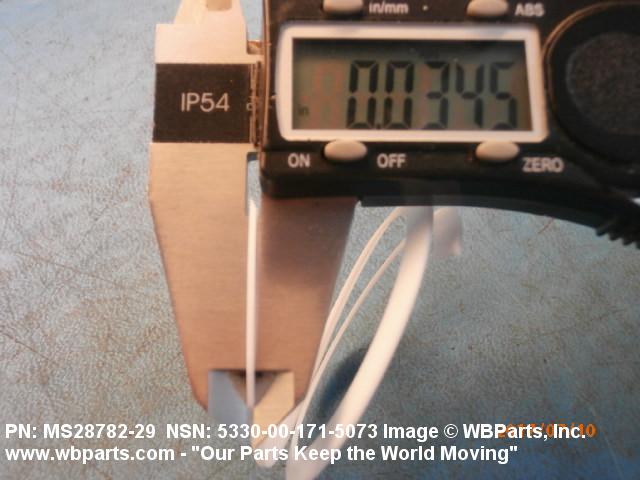

Drawings & Photos | NSN 5330-00-171-5073
Demand History | NSN 5330-00-171-5073
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-171-5073 | 2019-03-74 | 1 | DIBBS-RFPs |
| MS2878229 | 2017-07-184 | 20 | United States |
| 5330-00-171-5073 | 2015-03-84 | 1847 | DIBBS |
| 5330-00-171-5073 | 2014-07-183 | 789 | DIBBS |
| 5330-00-171-5073 | 2014-01-08 | 6 | US |
| 5330-00-171-5073 | 2011-12-336 | 6 | United States |
| 5330-00-171-5073 | 2011-06-166 | 1000 | DIBBS |
| MS35803326 | 2010-08-230 | 1100 | United States |
| MS2878229 | 2009-08-232 | 3 | ZA |
Cross Reference | NSN 5330-00-171-5073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1276-08-129 | A0199 | OTO MELARA SPA |
| 38326B | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 569-1201-1190700ALTCPC42 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 574-4105-812674REVBPC46 | 82126 | MARE ISLAND NAVAL SHIPYARD |
| 577-515-1608454REVAPC15 | 81316 | PORTSMOUTH NAVAL SHIPYARD |
| 578-2409-1573044REVAPC22 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 580-515-1700942PC15 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 593-123-1862209PC29 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 7863-12REVAPC22 | 96169 | ELECTRIC BOAT CORPORATION |
| 970-41705 ITEM 28 | 07270 | MOOG INC. |
| 982201 | F0302 | HISPANO SUIZA GROUPE SAFRAN |
| 982201 | F6137 | MESSIER-BUGATTI-DOWTY |
| MS28782-29 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35803-326 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| R3502-29 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-171-5073
Technical Data | NSN 5330-00-171-5073
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-8791 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D90 SQUARE |

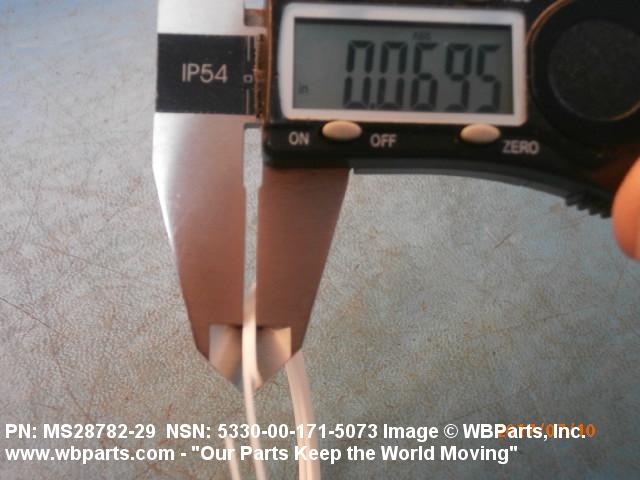

| CROSS-SECTIONAL THICKNESS | 0.031 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |

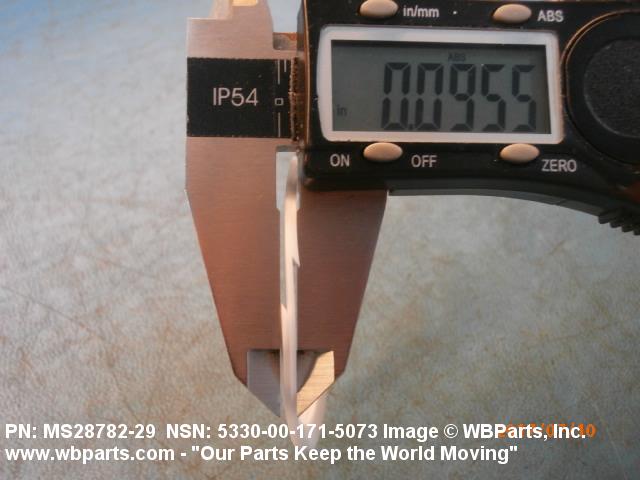

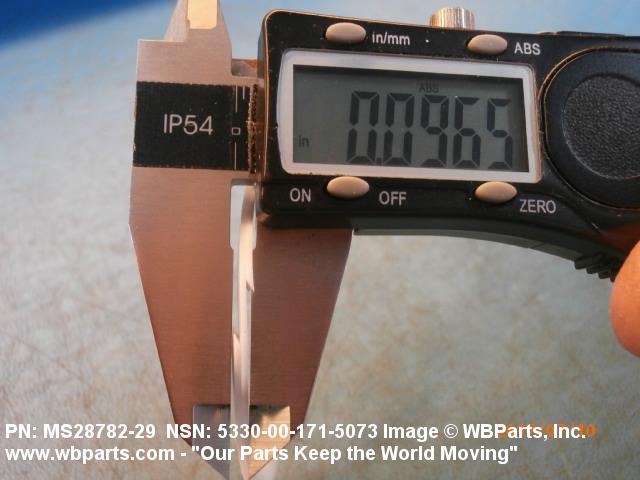

| CROSS-SECTIONAL HEIGHT | 0.093 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| DISTANCE BETWEEN ENDS | 0.062 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |

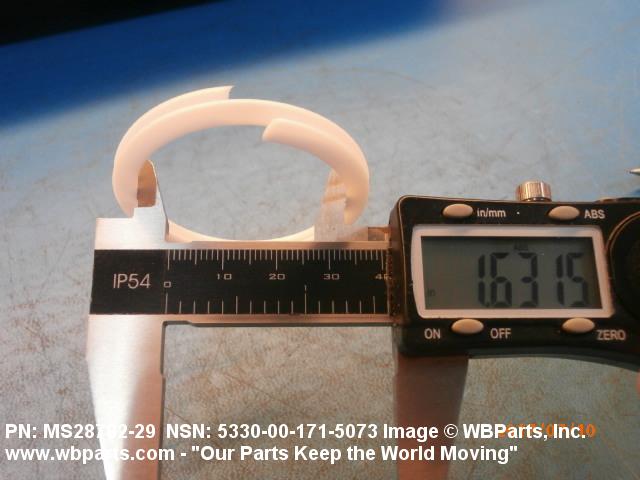

| CENTER HOLE DIAMETER | 1.609 INCHES MINIMUM AND 1.641 INCHES MAXIMUM |

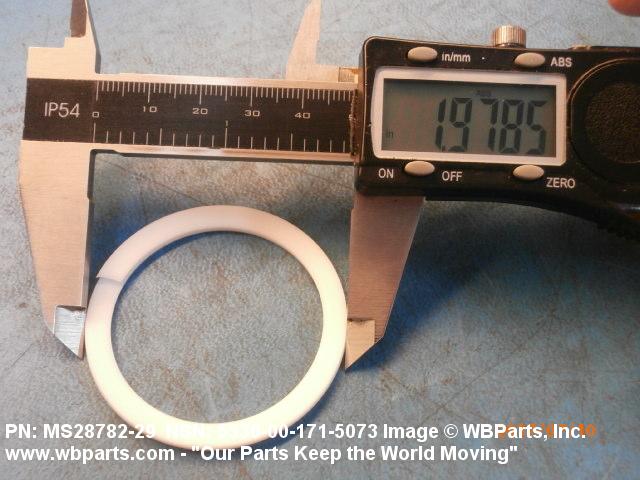

| PERIPHERAL DIAMETER | 1.977 INCHES MINIMUM AND 2.013 INCHES MAXIMUM |
| ANGLE | 25.0 DEGREES MINIMUM AND 35.0 DEGREES MAXIMUM |

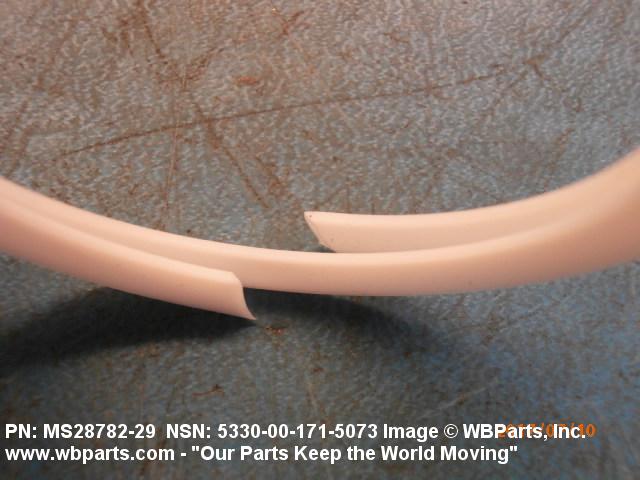

| JOINT TYPE | SCARF-BUTT RETAINER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28782-29 |
Restrictions/Controls & Freight Information | NSN 5330-00-171-5073
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 760 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
