NSN 5330-00-312-4594 9533964, 00-312-4594, 003124594
Product Details | PLAIN ENCASED SEAL
5330-00-312-4594 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: 9533964, 5330-00-312-4594, 00-312-4594, 5330003124594, 003124594
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 OCT 1973 | 00-312-4594 | 04214 ( SEAL, PLAIN ENCASED ) |

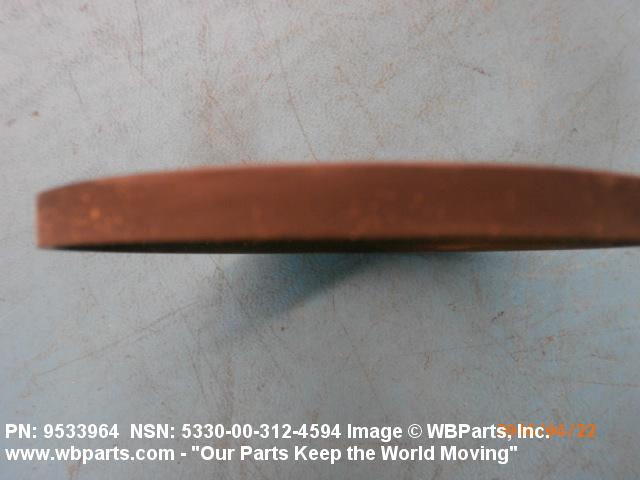

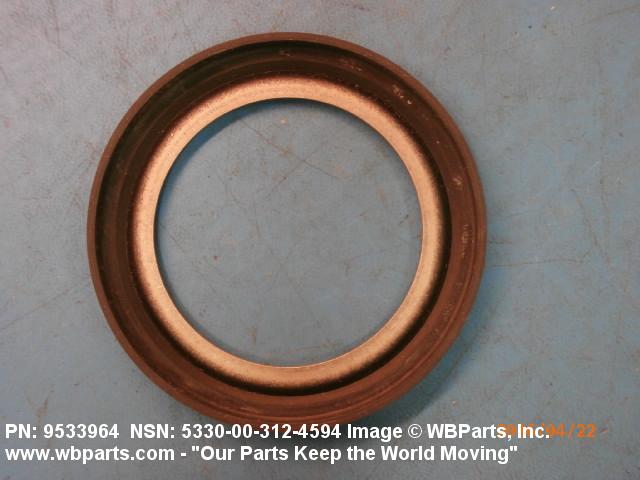

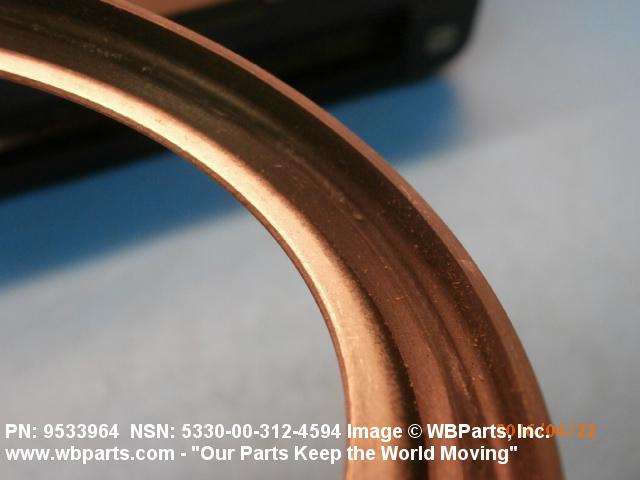

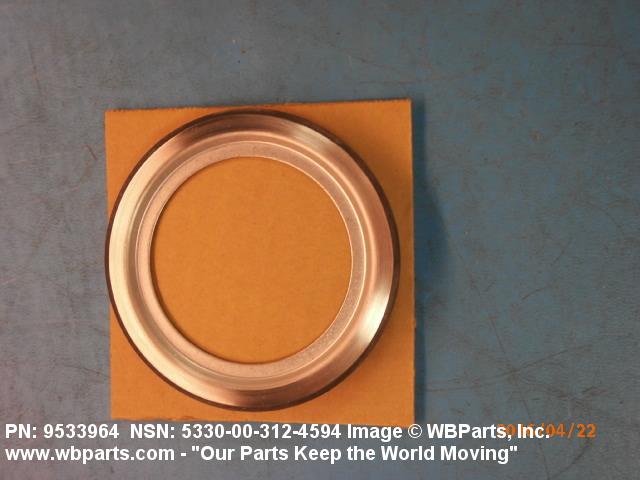

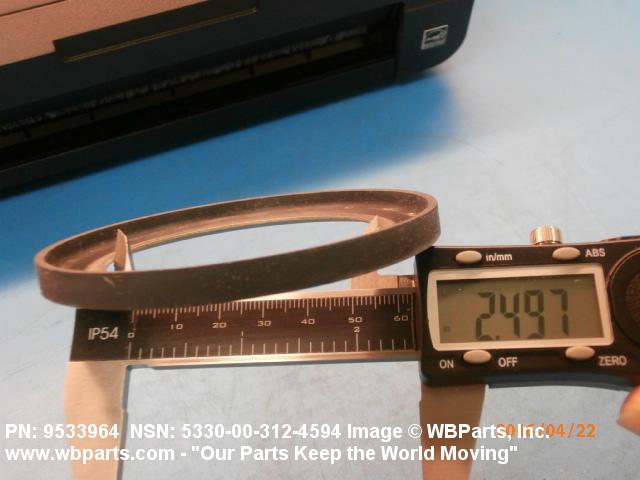

Drawings & Photos | NSN 5330-00-312-4594
Demand History | NSN 5330-00-312-4594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9533964 | 2016-04-109 | 4 | United States |
| 5330-00-312-4594 | 2016-04-106 | 4 | United States |
| 5330-00-312-4594 | 2016-04-106 | 4 | United States |
Cross Reference | NSN 5330-00-312-4594
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9533964 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-312-4594
Technical Data | NSN 5330-00-312-4594
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING INTERNALLY MOLDED-IN REINFORCEMENT RUBBER SEALING ELEMENT |
| CASE STYLE | 4 RECESSED |
| SEALING ELEMENT STYLE | 18 ANGULAR-EXTERNAL |
| SEAL WIDTH | 0.295 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 2.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 73842 |
| DESIGN CONTROL REFERENCE | 9533964 |
Restrictions/Controls & Freight Information | NSN 5330-00-312-4594
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-00-312-4594
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
