Product Details | PLAIN ENCASED SEAL
5330-00-893-0347 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: 1-300-232-02, 541530, 54153011, 541530-11 , 54153030, 541530-30, 5330-00-893-0347, 00-893-0347, 5330008930347, 130023202, 008930347
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-893-0347 | 04214 ( SEAL, PLAIN ENCASED ) |

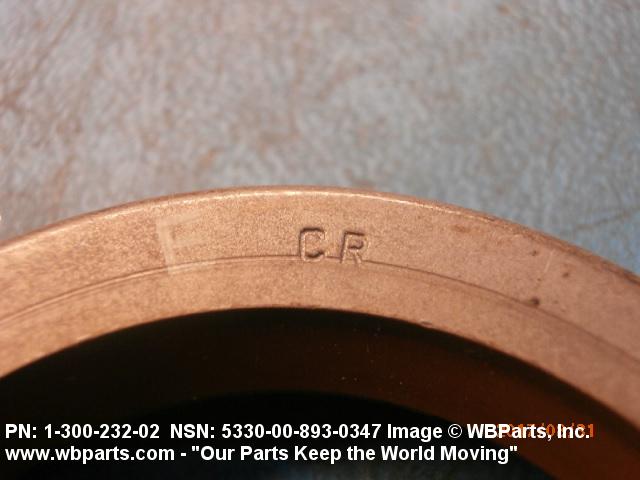

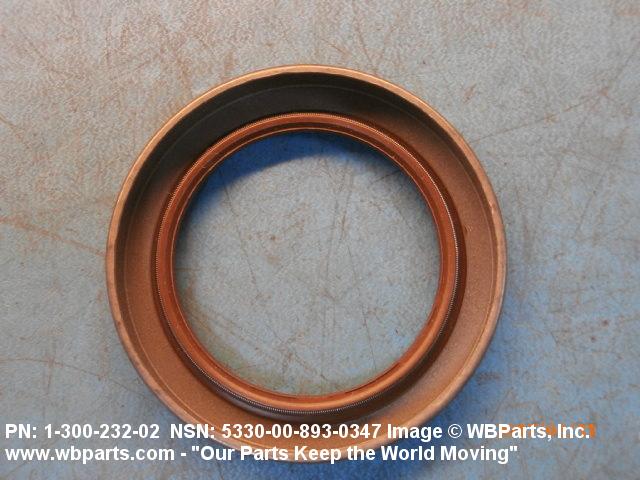

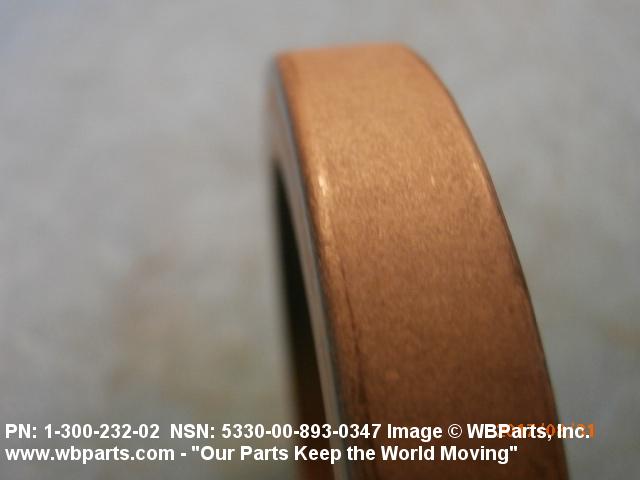

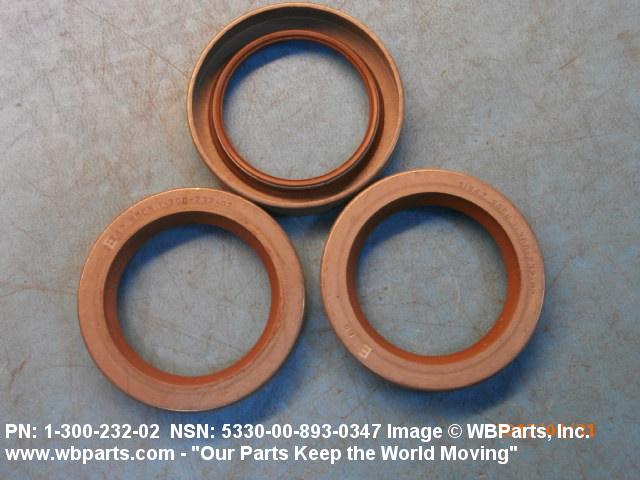

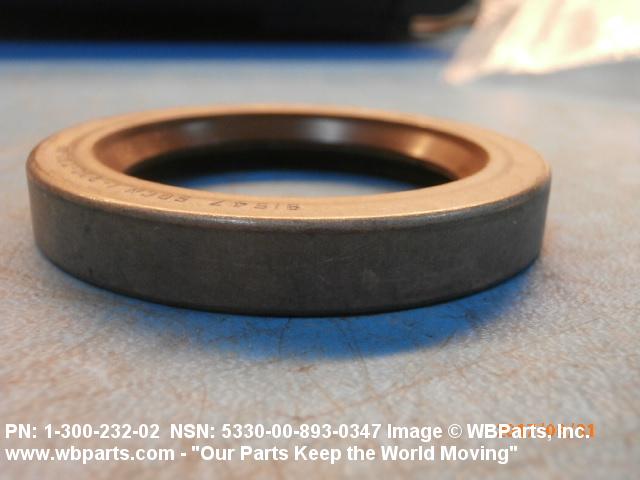

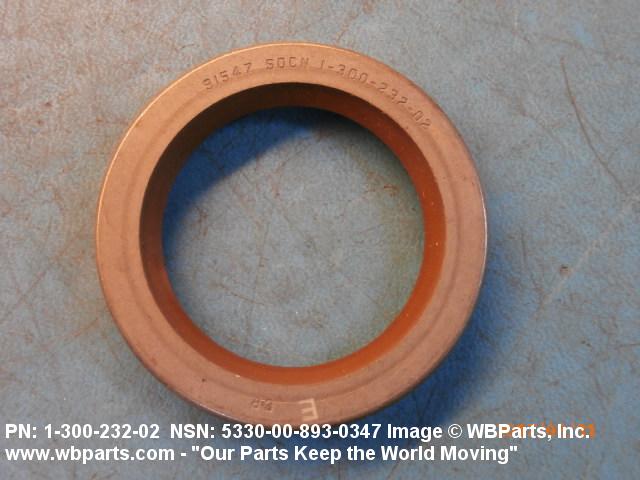

Drawings & Photos | NSN 5330-00-893-0347
Demand History | NSN 5330-00-893-0347
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 130023202 | 2024-02-27 | 20 | US |
| 5330-00-893-0347 | 2020-02-20 | 10 | US |
| 130023202 | 2018-11-06 | 4 | United States |
| 5330-00-893-0347 | 2017-08-04 | 3 | Georgia |
| 5330-00-893-0347 | 2017-08-03 | 3 | Georgia |
| 5330-00-893-0347 | 2017-04-28 | 3 | US |
| 5330-00-893-0347 | 2017-04-27 | 3 | GE |
| 130023202 | 2017-03-13 | 50 | CN |
| 5330-00-893-0347 | 2013-04-04 | 574 | DIBBS |
| 5330-00-893-0347 | 2011-08-19 | 100 | DIBBS |
| 5330-00-893-0347 | 2011-01-13 | 377 | DIBBS |
| 5330-00-893-0347 | 2010-08-04 | 650 | DIBBS |
| 5330-00-893-0347 | 2010-05-12 | 600 | DIBBS |
| 5330-00-893-0347 | 2009-10-29 | 280 | DIBBS |
| 5330-00-893-0347 | 2009-07-30 | 183 | DIBBS |
| 5330-00-893-0347 | 2009-06-03 | 200 | DIBBS |
| 5330-00-893-0347 | 2008-10-23 | 68 | DIBBS |
| 5330-00-893-0347 | 2008-08-18 | 164 | DIBBS |
| 5330-00-893-0347 | 2007-12-11 | 5 | US |
| 130023202 | 2007-07-31 | 10 | Colombia |
| 130023202 | 2006-07-25 | 2 | United States |
| 130023202 | 2006-05-05 | 5 | us |
| 130023202 | 2006-05-05 | 5 | us |
Cross Reference | NSN 5330-00-893-0347
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-300-232-02 | 91547 | HONEYWELL INTERNATIONAL INC DBA ENGINES & SYSTEMS |
| 1-300-232-02 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 541530 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
| 541530-11 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
| 541530-30 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5330-00-893-0347
Related Products | NSN 5330-00-893-0347
5330-00-893-0447, 5330-00-893-0611, 5330-00-893-0612, 5330-00-893-0614, 5330-00-893-0615
Technical Data | NSN 5330-00-893-0347
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CASE RUBBER SYNTHETIC SEALING ELEMENT |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66,AISI 1020 FED STD SINGLE MATERIAL RESPONSE CASE 1-300-232-02,91547 MFR REF SINGLE MATERIAL RESPONSE SEALING ELEMENT |
| CASE STYLE | 1 SQUARE |

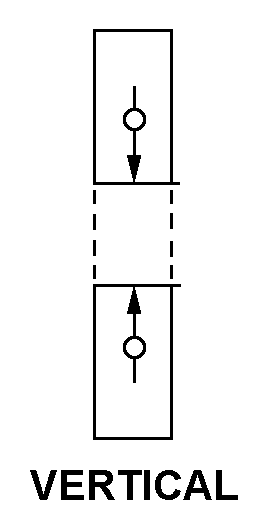

| SEALING ELEMENT STYLE | 2 VERTICAL |

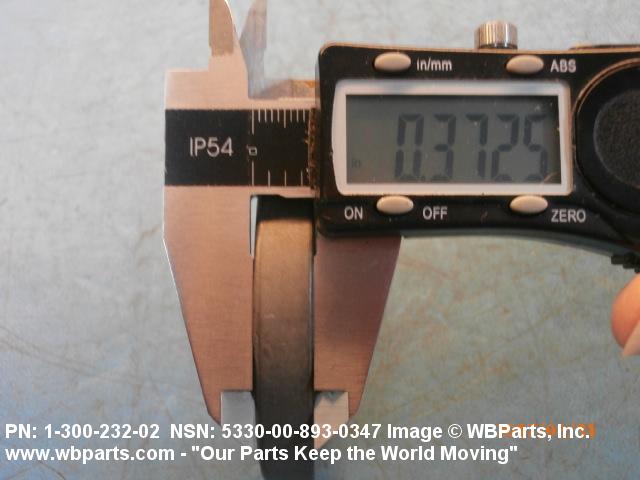

| SEAL WIDTH | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| ACCOMMODATED SHAFT MAXIMUM RATED SPEED | 71260 FEET PER MINUTE |

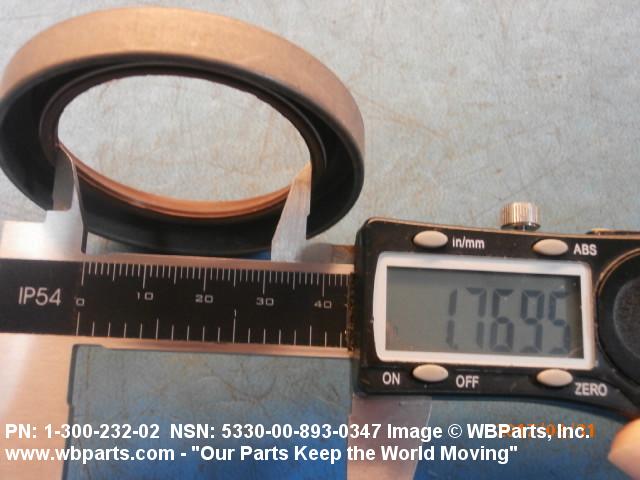

| ACCOMMODATED SHAFT DIAMETER | 1.765 INCHES MINIMUM AND 1.795 INCHES MAXIMUM |
| HOUSING BORE DIAMETER | 2.499 INCHES MINIMUM AND 2.503 INCHES MAXIMUM |
| III TEMP RATING | 300.0 DEG FAHRENHEIT |

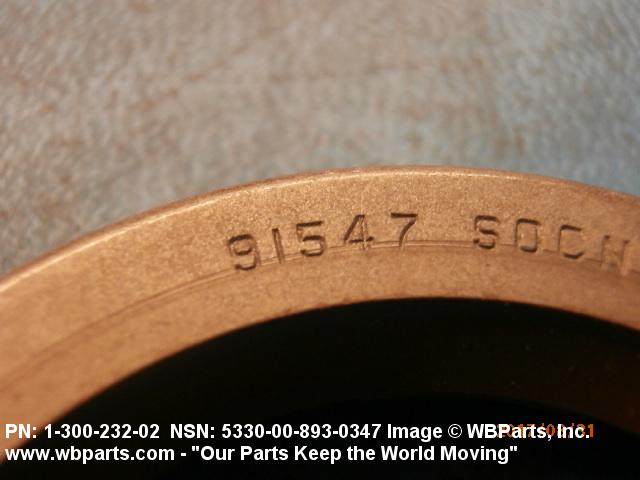

| MANUFACTURERS CODE | 91547 |

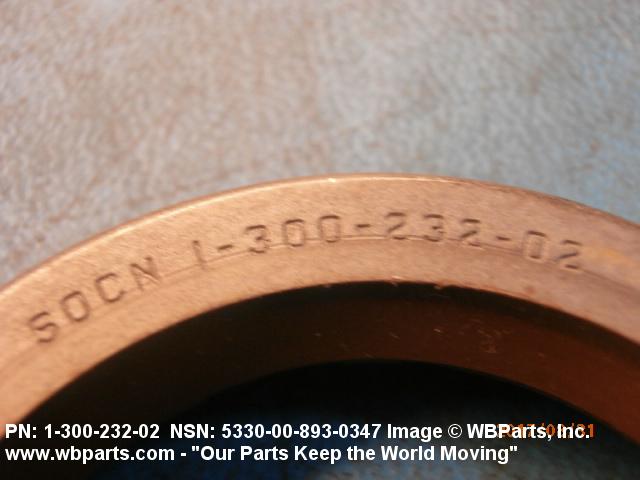

| MFR SOURCE CONTROLLING REFERENCE | 1-300-232-02 |
Restrictions/Controls & Freight Information | NSN 5330-00-893-0347
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-893-0347
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
