NSN 5330-00-348-4449 10080433 , 157074, 00-348-4449
Product Details | PLAIN ENCASED SEAL
5330-00-348-4449 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: 10080433 , 157074, 5330-00-348-4449, 00-348-4449, 5330003484449, 003484449
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-348-4449 | 04214 ( SEAL, PLAIN ENCASED ) |

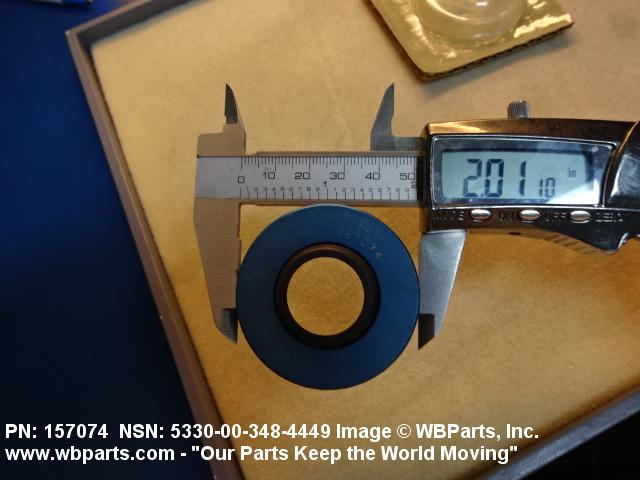

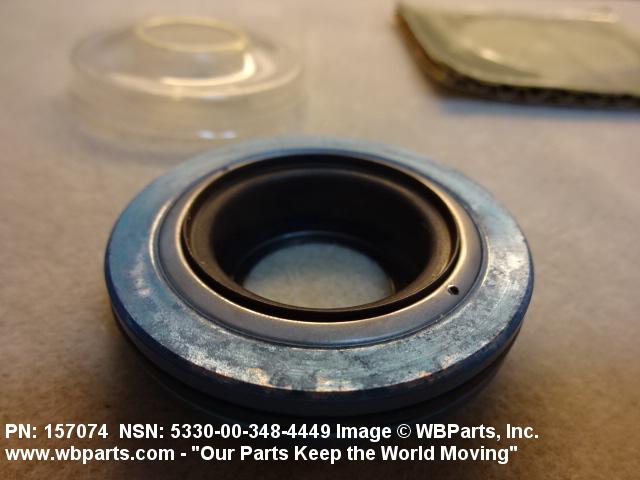

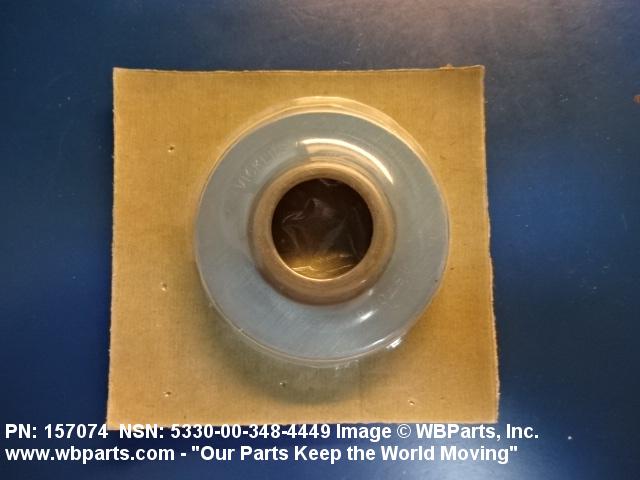

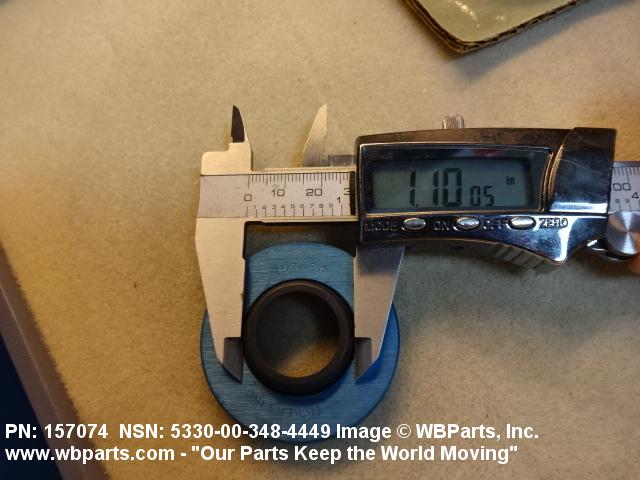

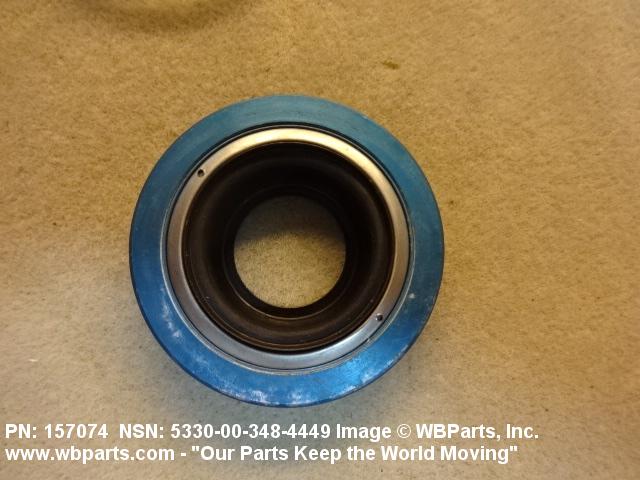

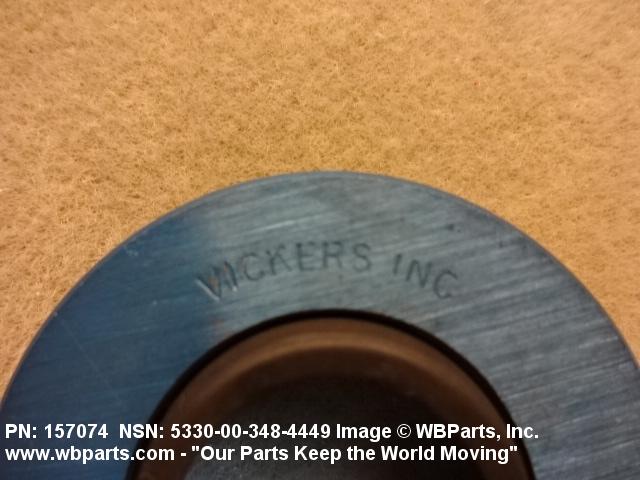

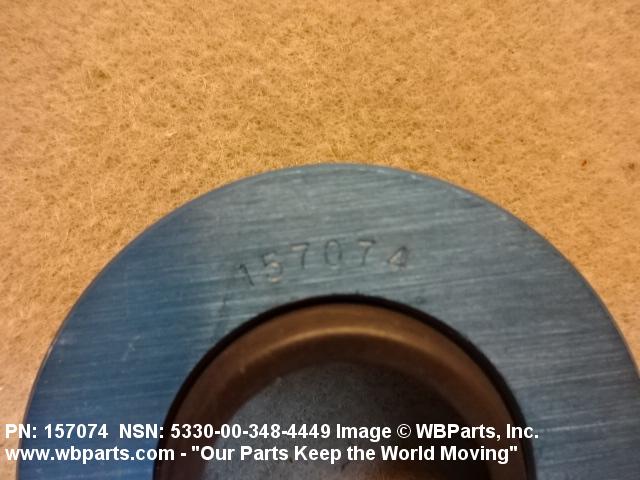

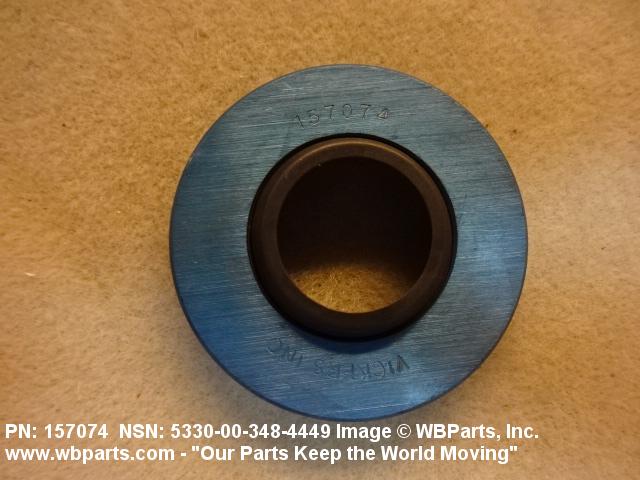

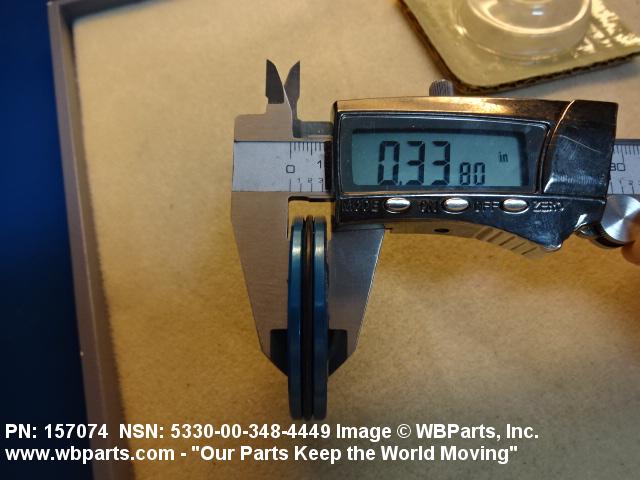

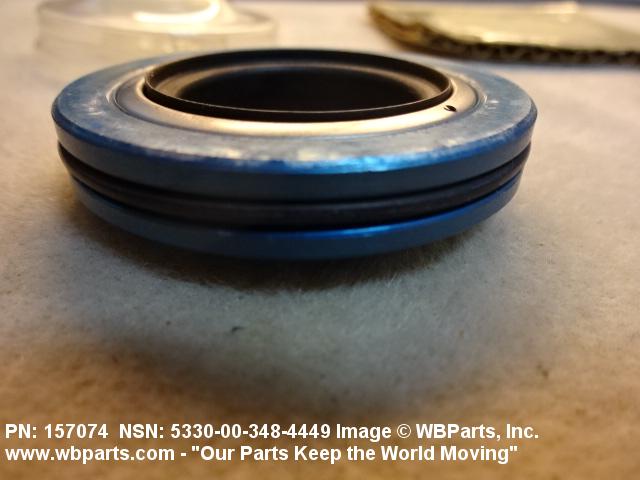

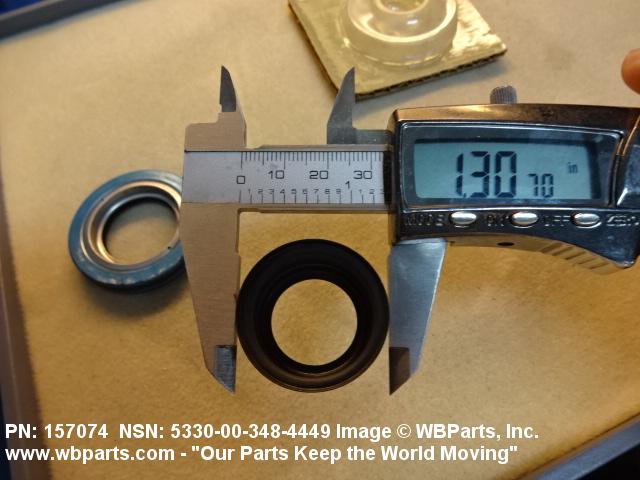

Drawings & Photos | NSN 5330-00-348-4449
Demand History | NSN 5330-00-348-4449
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-348-4449 | 2019-11-331 | 20 | DE |
| 5330-00-348-4449 | 2017-10-290 | 65 | Canada |
| 5330-00-348-4449 | 2014-10-283 | 10 | Germany |
| 5330-00-348-4449 | 2012-05-131 | 100 | Turkey |
| 5330-00-348-4449 | 2010-03-78 | 10 | Taiwan |
| 5330-00-348-4449 | 2008-09-253 | 8 | Taiwan |
Cross Reference | NSN 5330-00-348-4449
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 157074 | 62983 | EATON AEROSPACE LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-348-4449
Technical Data | NSN 5330-00-348-4449
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CASE RUBBER SYNTHETIC SEALING ELEMENT |
| CASE STYLE | 1 SQUARE |
| SEALING ELEMENT STYLE | 4 ANGULAR |
| SEAL WIDTH | 0.312 INCHES MINIMUM AND 0.344 INCHES MAXIMUM |
| ACCOMMODATED SHAFT MAXIMUM RATED SPEED | 6800 FEET PER MINUTE |
| ACCOMMODATED SHAFT DIAMETER | 1.123 INCHES MINIMUM AND 1.127 INCHES MAXIMUM |
| HOUSING BORE DIAMETER | 2.001 INCHES MINIMUM AND 2.003 INCHES MAXIMUM |
| SPECIAL FEATURES | W/TWO 0.040 IN. DIA PRESSURE INLET HOLES SPACED 180.0 DEG APART |
| III TEMP RATING | -40.0 DEG FAHRENHEIT AND 250.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 62983 |
| DESIGN CONTROL REFERENCE | 157074 |
Restrictions/Controls & Freight Information | NSN 5330-00-348-4449
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-348-4449
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
