NSN 5330-00-515-5896 1005146-12, 00-515-5896, 100514612
Product Details | PACKING RETAINER
5330-00-515-5896 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: 1005146-12, 5330-00-515-5896, 00-515-5896, 5330005155896, 100514612, 005155896
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-515-5896 | 13706 ( RETAINER, PACKING ) |

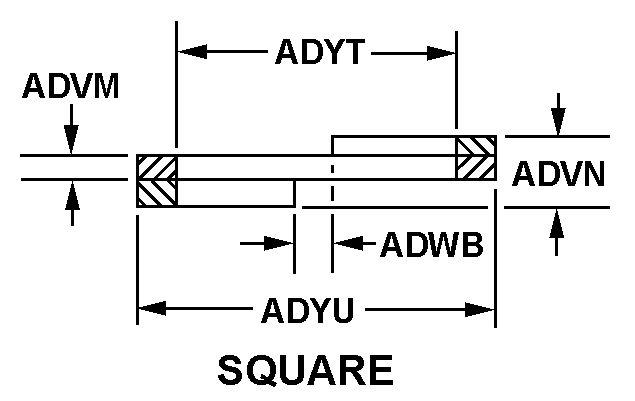

Drawings & Photos | NSN 5330-00-515-5896
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-515-5896
Technical Data | NSN 5330-00-515-5896
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D92 SQUARE |
| CROSS-SECTIONAL THICKNESS | 0.025 INCHES MINIMUM AND 0.029 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.075 INCHES MINIMUM AND 0.087 INCHES MAXIMUM |
| DISTANCE BETWEEN ENDS | 0.093 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.623 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 0.799 INCHES MINIMUM AND 0.805 INCHES MAXIMUM |
| JOINT TYPE | SCARF-BUTT RETAINER |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 1005146-12 |
Restrictions/Controls & Freight Information | NSN 5330-00-515-5896
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
