NSN 5330-00-753-2002 NAS1593008, NAS1593-008, NAS1593008ES
Product Details | PREFORMED PACKING
5330-00-753-2002 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: NAS1593008, NAS1593-008, NAS1593008ES, NAS1593-008ES, A8SR25170, A8SR251-70, EAB7288, EAB728-8, PRP56800892070, PRP568-008-920-70, V0747 2-008, V07472008, V12008, V1-2008, 00817107, 008-17107, 100706D, 16606A413, 16606A41-3, 2-008 V747-75, 2008V74775, 2-8 V747-75, 2877545, 2-8-77-545, 28V74775, 3627-3-11-90, 4619310068, 757075-008, 8500310PC78, 8500-310PC78, 5330-00-753-2002, 00-753-2002, 5330007532002, 007532002, 757075008, 362731190
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-753-2002 | 04521 ( PACKING, PREFORMED ) |

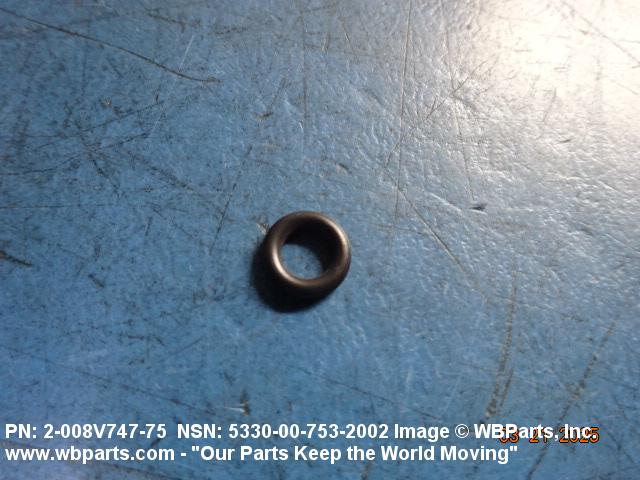

Drawings & Photos | NSN 5330-00-753-2002
Demand History | NSN 5330-00-753-2002
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-753-2002 | 2025-12-359 | 6 | ID |
| 5330-00-753-2002 | 2025-03-65 | 12 | Canada |
| 4619310068 | 2023-08-223 | 8 | ID |
| 5330-00-753-2002 | 2023-06-157 | 20 | ID |
| 2008V74775 | 2022-09-244 | 16 | AU |
| 2008V74775 | 2016-08-216 | 1 | United States |
| 2008V74775 | 2016-08-215 | 1 | United States |
| 2008V74775 | 2016-02-34 | 50 | United States |
| 4619310068 | 2015-02-40 | 16 | Indonesia |
| NAS1593-008 | 2012-10-304 | 25 | |
| 2008V74775 | 2011-01-15 | 450 | ID |
| 4619310068 | 2011-01-15 | 50 | ID |
| 4619310068 | 2010-10-297 | 12 | PK |
| 00817107 | 2009-06-174 | 4 | Brazil |
| 2008V74775 | 2009-01-09 | 100 | US |
| 4619310068 | 2007-07-185 | 10 | Indonesia |
Cross Reference | NSN 5330-00-753-2002
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 008-17107 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 100706D | 64560 | WELDON TOOL CO THE |
| 16606A41-3 | 73760 | ITT CORPORATION DBA ITT AEROSPACE CONTROLS |
| 2-8 V747-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-8-77-545 | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 3627-3-11-90 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 4619310068 | D8124 | ZF FRIEDRICHSHAFEN AG |
| 757075-008 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 8500-310PC78 | 96169 | ELECTRIC BOAT CORPORATION |
| A8SR251-70 | 95272 | STILLMAN SEAL CORPORATION |
| A8SR251-70 | SW461 | HUTCHINSON SEAL DE MEXICO STILLMAN SEAL DIVISION |
| EAB728-8 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
| NAS1593-008 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1593-008ES | H2313 | ERIKS B.V. |
| PRP568-008-920-70 | 77308 | PARCO INC. |
| V0747 2-008 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| V1-2008 | 81978 | PARKER-HANNIFIN CORPORATION DBA FLUID CONTROLS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-753-2002
Technical Data | NSN 5330-00-753-2002
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-25897,CL 1 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 70.0 SHORE DUROMETER A MINIMUM AND 80.0 SHORE DUROMETER A MAXIMUM OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D1 O-RING |
| CROSS-SECTIONAL HEIGHT | 0.062 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.187 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-753-2002
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-753-2002
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
