Product Details | METAL SEAL RING
5330-00-784-4177 A circular shaped item designed to be installed in a specially prepared groove or counterbore to provide a low pressure seal. It may be supplied in various cross-sectional shapes and is cut through at one point to allow for installation and fitting. Excludes items whose primary function is to provide sealing, wiping, or wearing surface capabilities for piston configurations. See also RING, PISTON and RING, WIPER.
Part Alternates: 20017, 5330-00-784-4177, 00-784-4177, 5330007844177, 007844177
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-784-4177 | 21205 ( SEAL RING, METAL ) |
Drawings & Photos | NSN 5330-00-784-4177
Cross Reference | NSN 5330-00-784-4177
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20017 | 66195 | SOLAR TURBINES INCORPORATED |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5330-00-784-4177
Related Products | NSN 5330-00-784-4177
5330-00-784-4178, 5330-00-784-4179, 5330-00-784-4349, 5330-00-784-4541, 5330-00-784-4543
Technical Data | NSN 5330-00-784-4177
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MS-5651 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

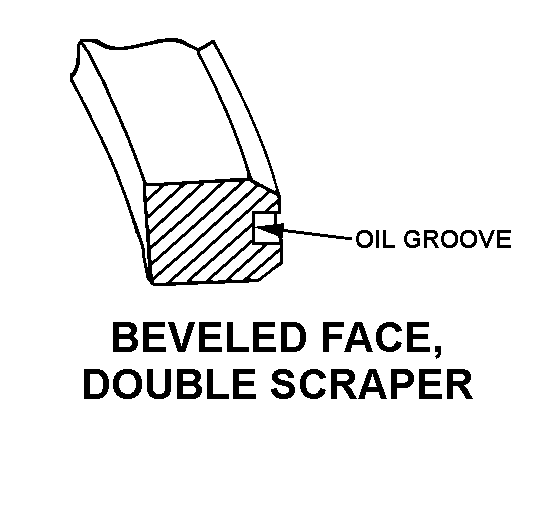

| CROSS-SECTIONAL SHAPE STYLE | A35 BEVELED FACE, DOUBLE SCRAPER |
| JOINT STYLE | 1 VERTICAL JOINT |
| RING STYLE | 5 EXPANDING CONCENTRIC |
| OUTSIDE DIAMETER | 11.747 INCHES MINIMUM AND 11.749 INCHES MAXIMUM |
| RADIAL WALL THICKNESS | 0.5300 INCHES MINIMUM AND 0.5340 INCHES MAXIMUM |
| OVERALL WIDTH | 0.9310 INCHES MINIMUM AND 0.9450 INCHES MAXIMUM |
| MANUFACTURERS CODE | 66195 |
| DESIGN CONTROL REFERENCE | 20017 |
