Product Details | METAL SEAL RING
5330-01-072-0296 A circular shaped item designed to be installed in a specially prepared groove or counterbore to provide a low pressure seal. It may be supplied in various cross-sectional shapes and is cut through at one point to allow for installation and fitting. Excludes items whose primary function is to provide sealing, wiping, or wearing surface capabilities for piston configurations. See also RING, PISTON and RING, WIPER.
Part Alternates: 145C029H01, 5330-01-072-0296, 01-072-0296, 5330010720296, 010720296
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 FEB 1979 | 01-072-0296 | 21205 ( SEAL RING, METAL ) |

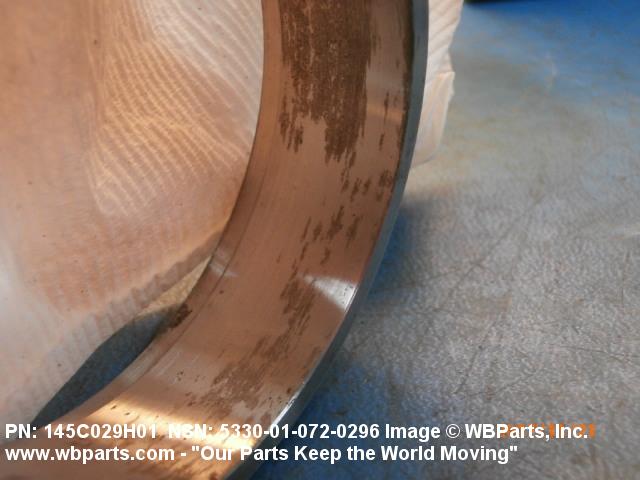

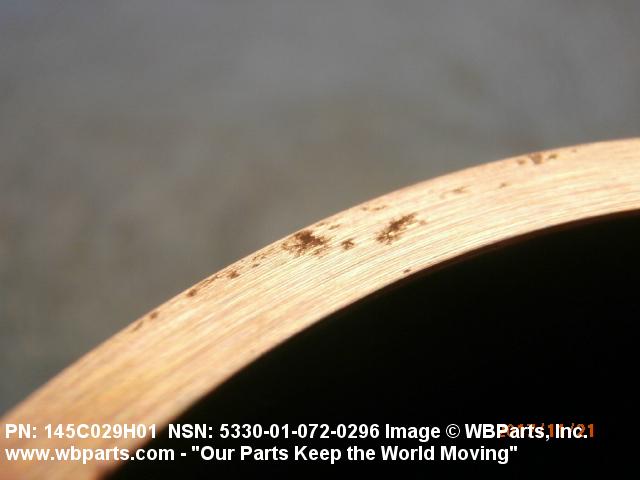

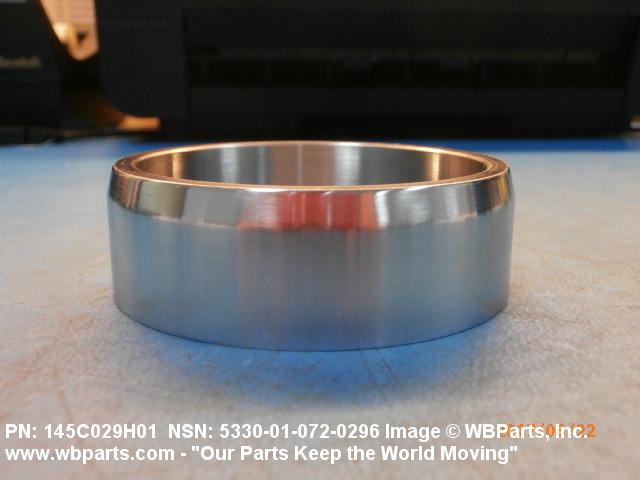

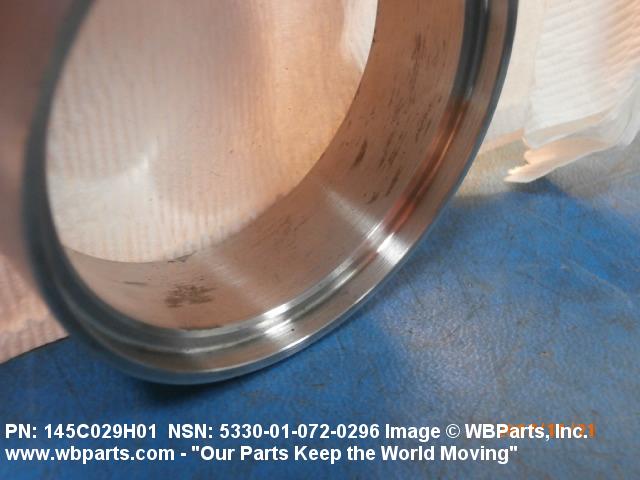

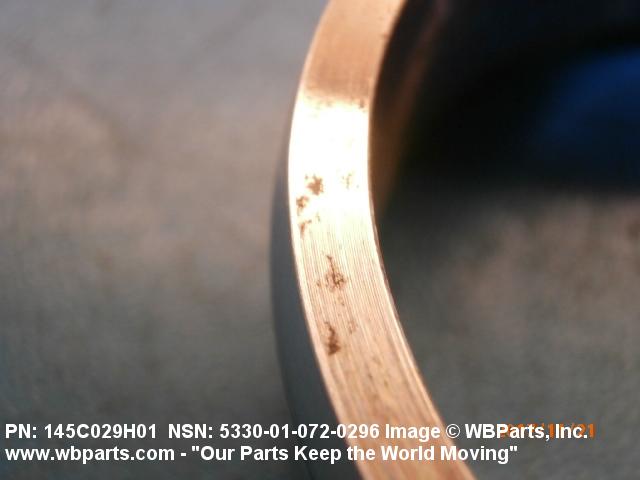

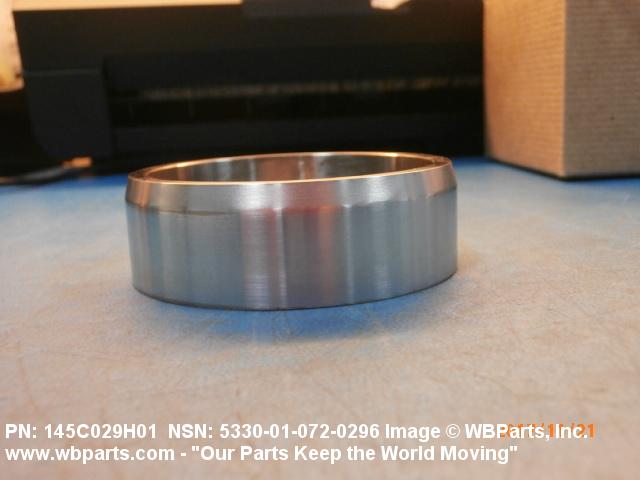

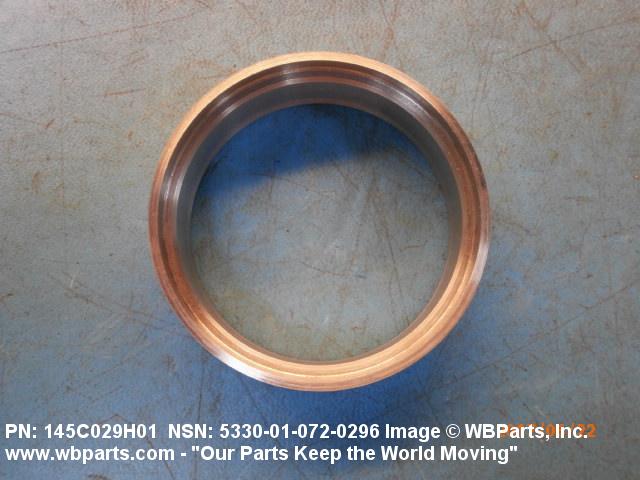

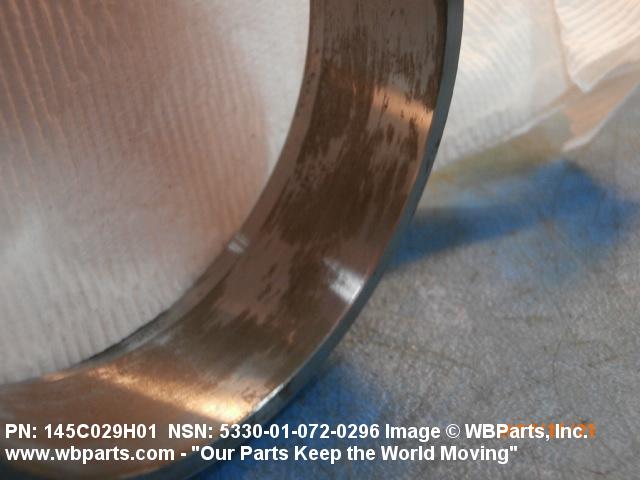

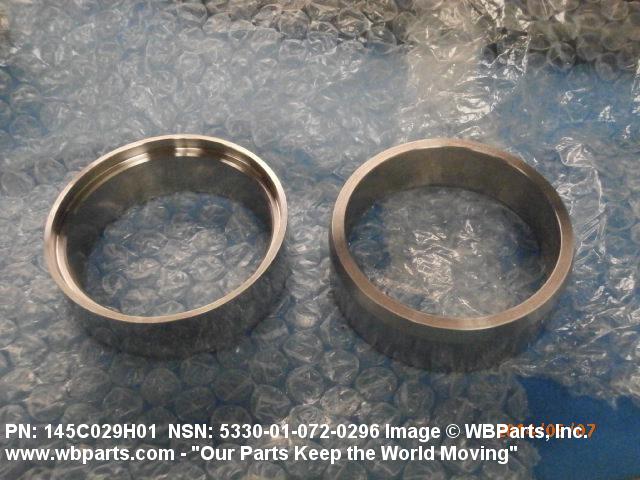

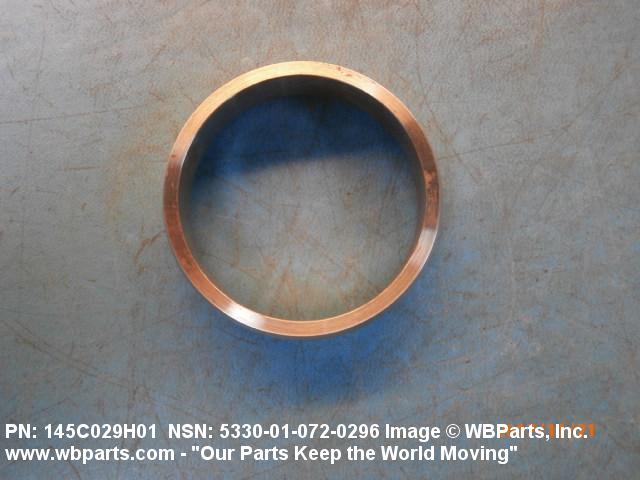

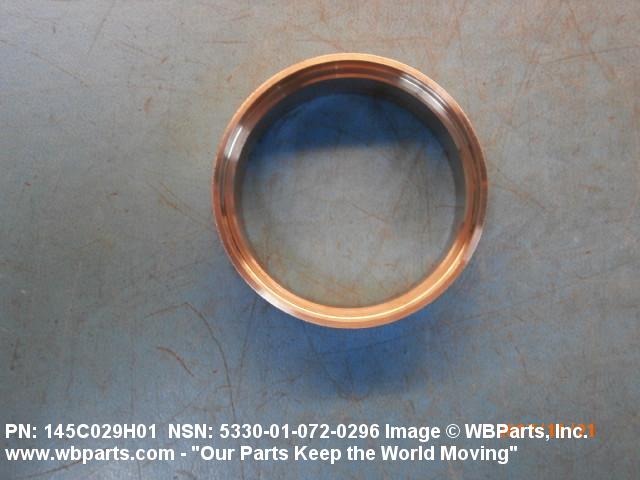

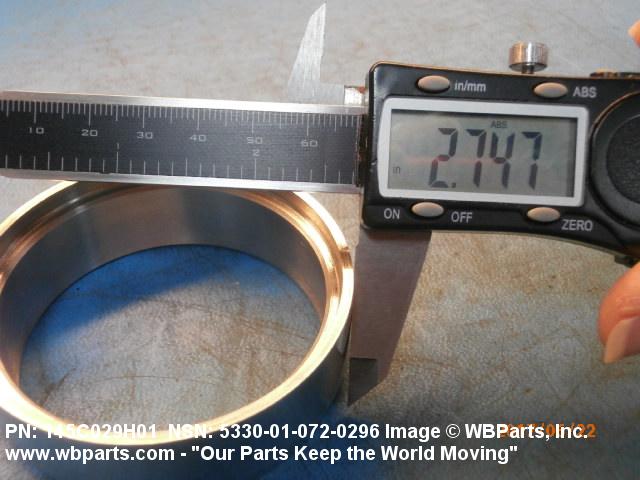

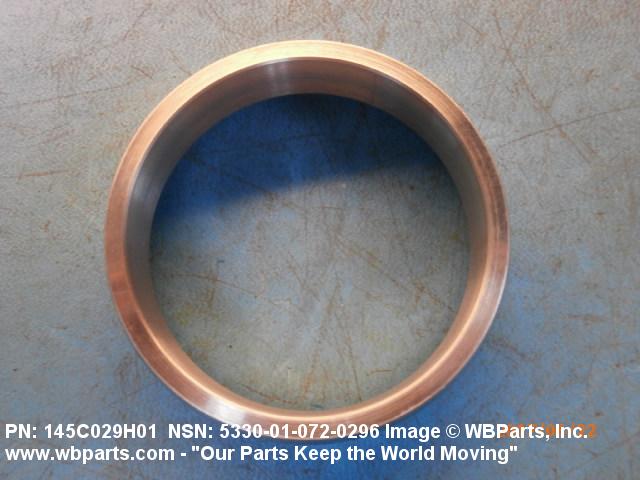

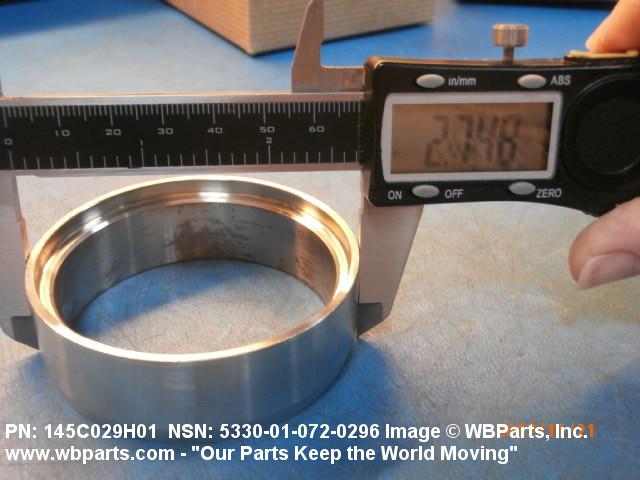

Drawings & Photos | NSN 5330-01-072-0296
Demand History | NSN 5330-01-072-0296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-072-0296 | 2018-03-20 | 3 | United States |
| 145C029H01 | 2017-11-01 | 1 | United States |
| 145C029H01 | 2017-10-23 | 3 | United States |
| 5330-01-072-0296 | 2017-06-13 | 3 | United States |
| 145C029H01 | 2016-10-12 | 4 | US |
| 145C029H01 | 2015-10-30 | 4 | United States |
| 145C029H01 | 2013-06-10 | 2 | United States |
| 145C029H01 | 2011-02-18 | 6 | US |
| 145C029H01 | 2011-02-18 | 12 | US |
| 145C029H01 | 2011-02-03 | 13 | US |
| 145C029H01 | 2010-10-22 | 22 | US |
| 145C029H01 | 2009-11-19 | 7 | United States |
| 145C029H01 | 2009-05-18 | 1 | United States |
| 145C029H01 | 2007-07-12 | 1 | United States |
| 145C029H01 | 2007-04-20 | 10 | United States |
| 145C029H01 | 2007-01-11 | 10 | United States |
Cross Reference | NSN 5330-01-072-0296
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145C029H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5330-01-072-0296
Related Products | NSN 5330-01-072-0296
5330-01-072-0548, 5330-01-072-0549, 5330-01-072-0550, 5330-01-072-0551, 5330-01-072-0552
Technical Data | NSN 5330-01-072-0296
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | PDS10105AU,AISI1045 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | PS83229WG MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| METALLIC HARDNESS RATING | NOT RATED |
| CROSS-SECTIONAL SHAPE STYLE | A1 PLAIN RECTANGULAR, STRAIGHT FACE |
| RING STYLE | 5 EXPANDING CONCENTRIC |

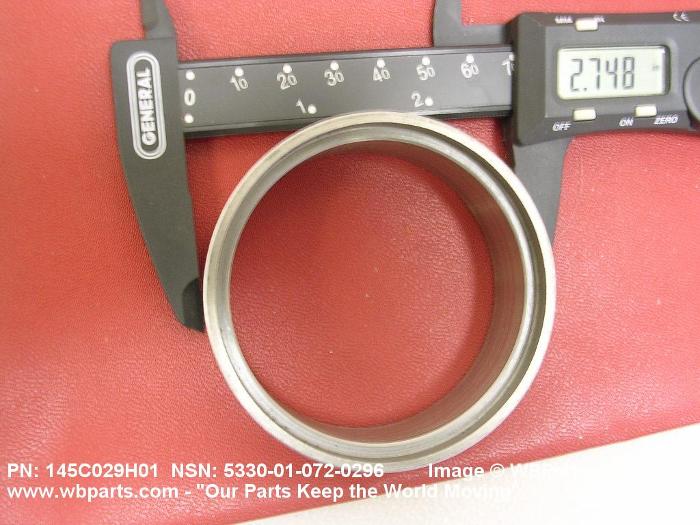

| OUTSIDE DIAMETER | 2.750 INCHES MAXIMUM |

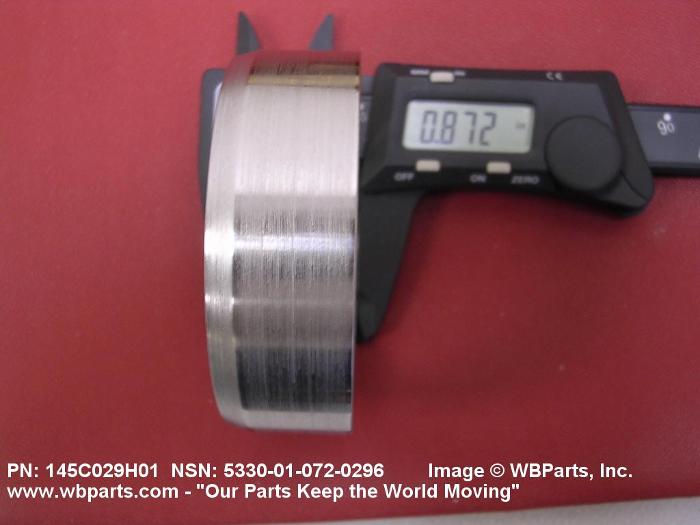

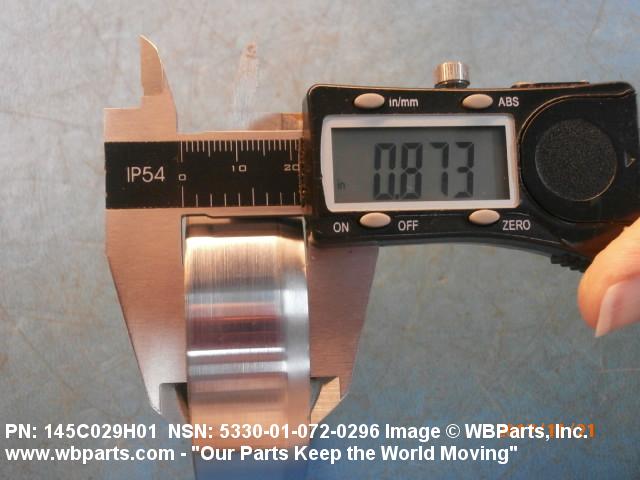

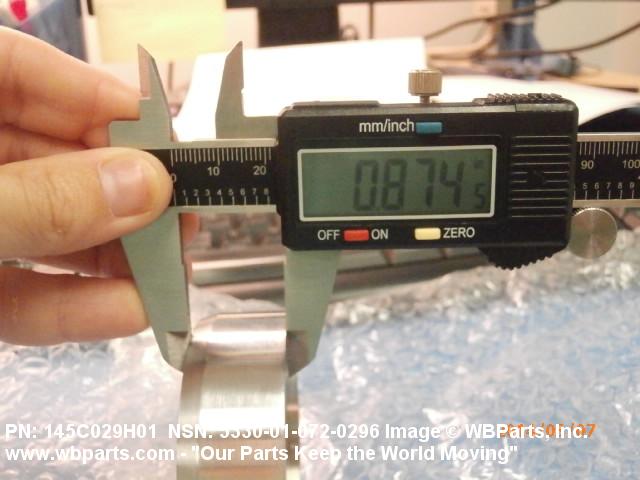

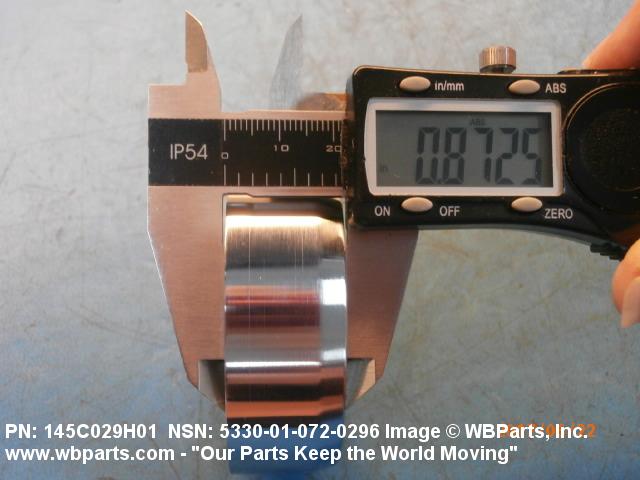

| OVERALL WIDTH | 0.8700 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 145C029H01 |
Restrictions/Controls & Freight Information | NSN 5330-01-072-0296
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | ||
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-072-0296
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
