NSN 5330-00-918-0595 ER5248, 1051177, 10951177
Product Details | PLAIN ENCASED SEAL
5330-00-918-0595 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: ER5248, 1051177, 10951177, 46839, 476801HAR, 5330-00-918-0595, 00-918-0595, 5330009180595 , 009180595
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-918-0595 | 04214 ( SEAL, PLAIN ENCASED ) |

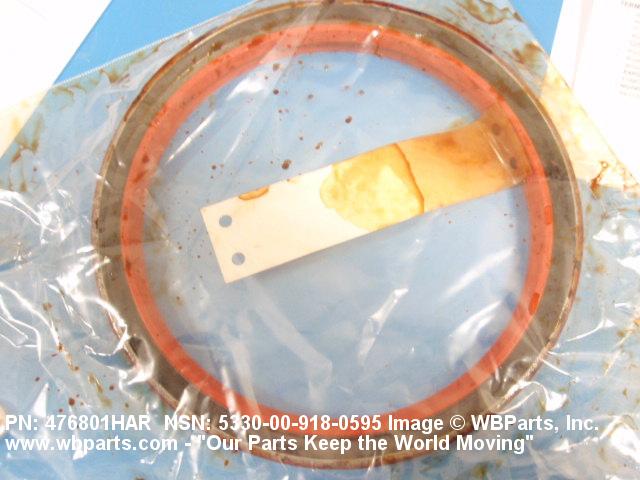

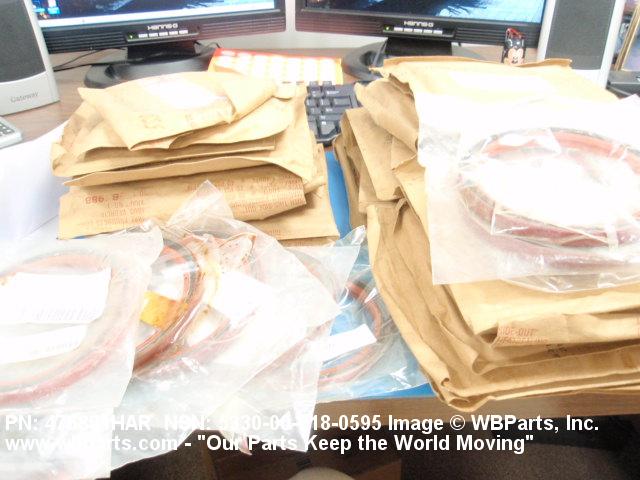

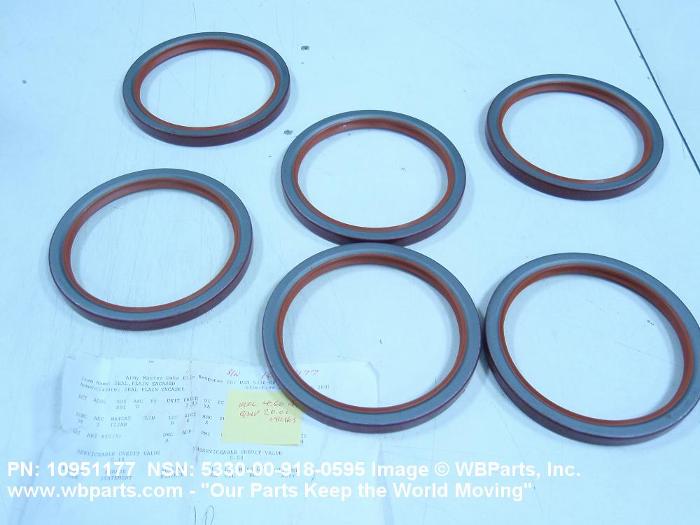

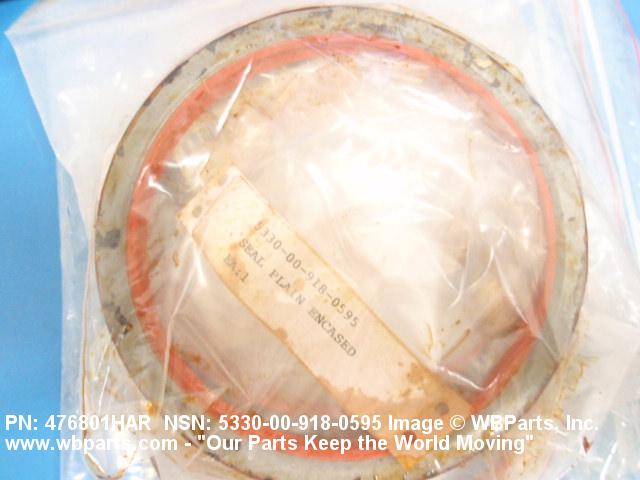

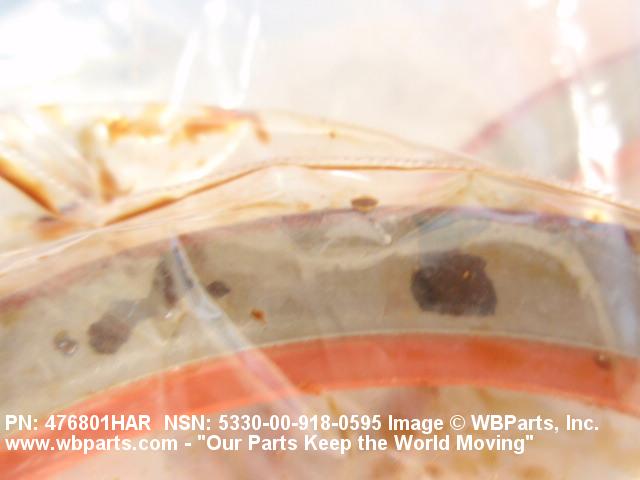

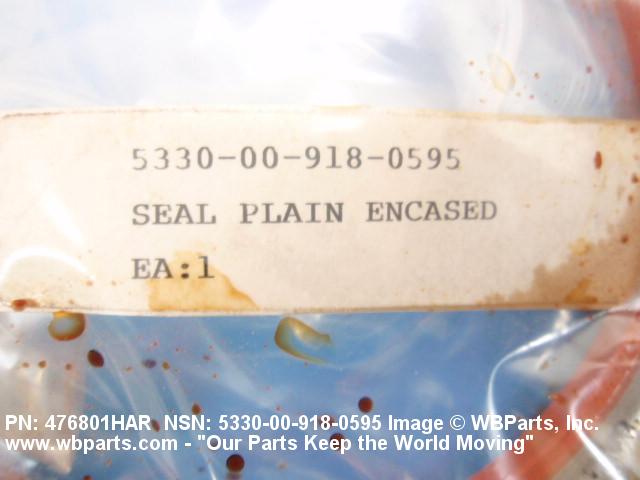

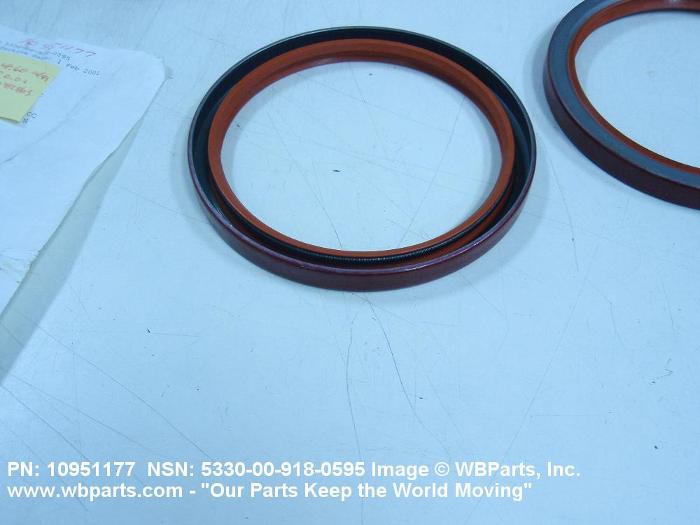

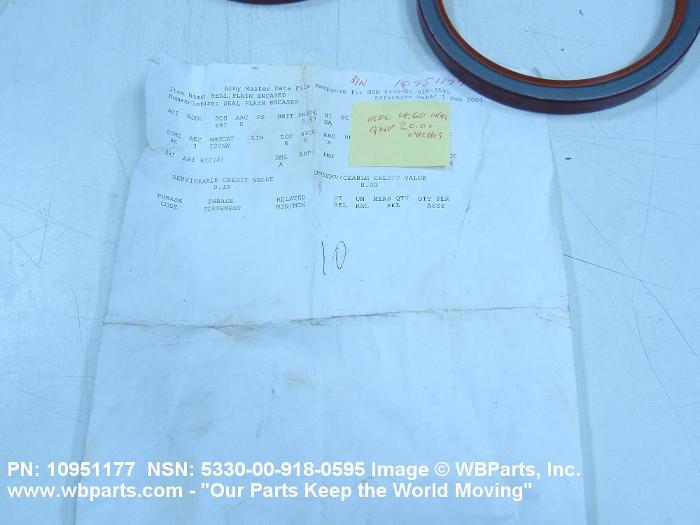

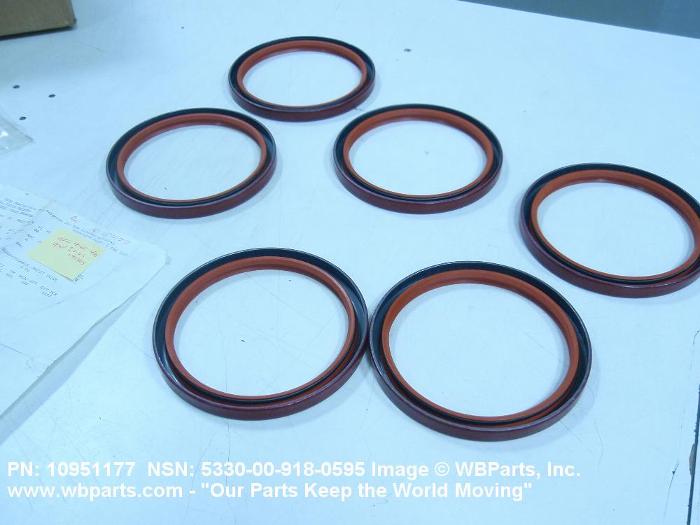

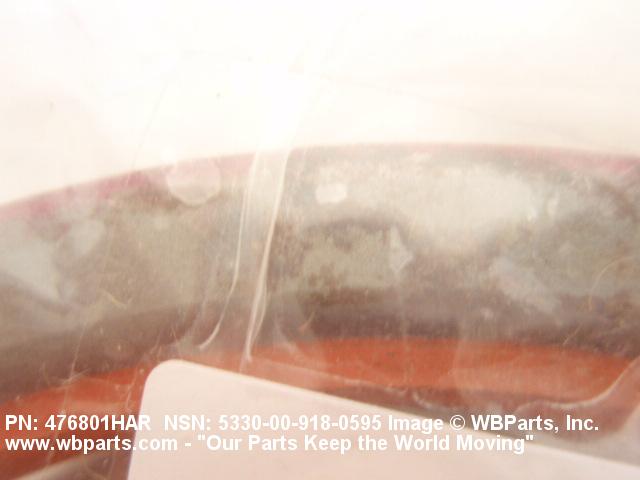

Drawings & Photos | NSN 5330-00-918-0595
Demand History | NSN 5330-00-918-0595
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 476801HAR | 2025-07-209 | 12 | DIBBS |
| 476801HAR | 2025-07-198 | 12 | DIBBS |
| 476801HAR | 2025-07-188 | 7 | DIBBS |
| 5330-00-918-0595 | 2024-07-213 | 11 | United States |
| 476801HAR | 2023-04-114 | 49 | DIBBS |
| 476801HAR | 2022-11-307 | 60 | DIBBS |
| 476801HAR | 2022-10-296 | 60 | DIBBS |
| 476801HAR | 2022-08-235 | 8 | DIBBS |
| 476801HAR | 2022-04-114 | 8 | DIBBS |
| 476801HAR | 2021-07-196 | 60 | DIBBS |
| 476801HAR | 2021-06-154 | 27 | DIBBS |
| 476801HAR | 2020-10-282 | 42 | DIBBS |
| 5330-00-918-0595 | 2018-07-212 | 25 | DIBBS |
| 5330-00-918-0595 | 2017-06-153 | 13 | DIBBS |
| 5330-00-918-0595 | 2017-05-145 | 13 | DIBBS |
| 10951177 | 2012-09-252 | 1 | US |
| 5330-00-918-0595 | 2012-08-241 | 233 | DIBBS |
| 5330-00-918-0595 | 2012-06-158 | 92 | DIBBS |
| 5330-00-918-0595 | 2012-03-61 | 1 | US |
| 5330-00-918-0595 | 2010-05-125 | 5 | DO |
| 476801HAR | 2010-03-83 | 35 | United States |
| ER5248 | 2009-01-14 | 2 | US |
| 5330-00-918-0595 | 2009-01-14 | 2 | US |
| 10951177 | 2008-10-291 | 1 | United States |
Cross Reference | NSN 5330-00-918-0595
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1051177 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| 10951177 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 46839 | 79150 | DANA AUTOMOTIVE SYSTEMS GROUP, LLC DBA DANA SEALING PRODUCTS |
| 476801HAR | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| 5330009180595 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| ER5248 | 79150 | DANA AUTOMOTIVE SYSTEMS GROUP, LLC DBA DANA SEALING PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-918-0595
Related Products | NSN 5330-00-918-0595
Technical Data | NSN 5330-00-918-0595
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CASE RUBBER SYNTHETIC SEALING ELEMENT |
| SURFACE TREATMENT | PAINT CASE |
| CASE STYLE | 1 SQUARE |
| SEALING ELEMENT STYLE | 4 ANGULAR |
| SEAL WIDTH | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 5.000 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 6.001 INCHES MINIMUM AND 6.005 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 10951177 |
Restrictions/Controls & Freight Information | NSN 5330-00-918-0595
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-918-0595
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NN | 5 Ton Vehicle Configuration, Multi-Fuel |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | A | Automotive MaterielArmy Tank-Automotive Command (TACOM) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
