Product Details | METAL SEAL RING
5330-00-943-7681 A circular shaped item designed to be installed in a specially prepared groove or counterbore to provide a low pressure seal. It may be supplied in various cross-sectional shapes and is cut through at one point to allow for installation and fitting. Excludes items whose primary function is to provide sealing, wiping, or wearing surface capabilities for piston configurations. See also RING, PISTON and RING, WIPER.
Part Alternates: 511776, 5330-00-943-7681, 00-943-7681, 5330009437681, 009437681
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 FEB 1966 | 00-943-7681 | 21205 ( SEAL RING, METAL ) |
Drawings & Photos | NSN 5330-00-943-7681
Demand History | NSN 5330-00-943-7681
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-943-7681 | 2016-07-199 | 13 | DIBBS |
| 5330-00-943-7681 | 2016-06-159 | 14 | DIBBS |
| 5330-00-943-7681 | 2016-02-41 | 14 | DIBBS |
| 5330-00-943-7681 | 2015-05-148 | 28 | DIBBS |
| 5330-00-943-7681 | 2015-01-22 | 10 | DIBBS |
| 5330-00-943-7681 | 2014-09-245 | 10 | DIBBS |
| 5330-00-943-7681 | 2014-08-232 | 10 | DIBBS |
Cross Reference | NSN 5330-00-943-7681
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 511776 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-943-7681
Related Products | NSN 5330-00-943-7681
Technical Data | NSN 5330-00-943-7681
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| METALLIC HARDNESS RATING | 44.0 MINIMUM ROCKWELL C AND 52.0 MAXIMUM ROCKWELL C |
| CROSS-SECTIONAL SHAPE STYLE | A1 PLAIN RECTANGULAR, STRAIGHT FACE |

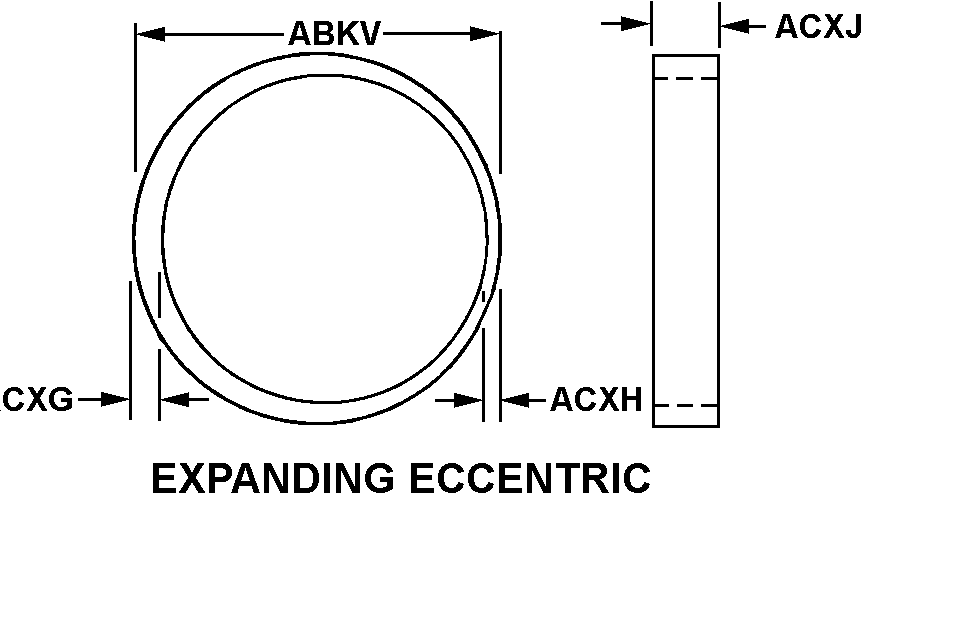

| RING STYLE | 6 EXPANDING ECCENTRIC |
| OUTSIDE DIAMETER | 6.180 INCHES NOMINAL |
| LARGEST RADIAL WALL THICKNESS | 0.290 INCHES NOMINAL |
| OVERALL WIDTH | 0.0570 INCHES MINIMUM AND 0.0590 INCHES MAXIMUM |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 511776 |
