Product Details | PLAIN ENCASED SEAL
5330-00-947-4184 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: 1253039, 125-3039, 346738R91, 683398C1, 5330-00-947-4184, 00-947-4184, 5330009474184, 009474184
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAR 1966 | 00-947-4184 | 04214 ( SEAL, PLAIN ENCASED ) |
Drawings & Photos | NSN 5330-00-947-4184
Cross Reference | NSN 5330-00-947-4184
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 125-3039 | 93742 | ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT |
| 346738R91 | 29510 | KOMATSU AMERICAN INTL CO |
| 346738R91 | 31007 | NAVISTAR INTL CORP |
| 346738R91 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 683398C1 | 0SAT8 | KOMATSU AMERICA CORP. |
| 683398C1 | 29510 | KOMATSU AMERICAN INTL CO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5330-00-947-4184
5330-00-947-4195, 5330-00-947-4269, 5330-00-947-4270, 5330-00-947-4271, 5330-00-947-4272
Technical Data | NSN 5330-00-947-4184
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CASE RUBBER SYNTHETIC SEALING ELEMENT A RUBBER SYNTHETIC SEALING ELEMENT B |
| CASE STYLE | 1 SQUARE |

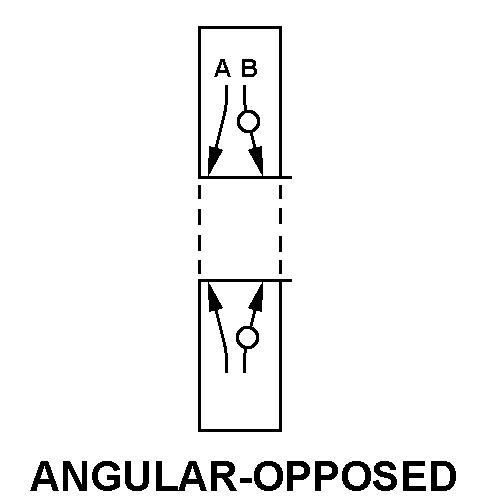

| SEALING ELEMENT STYLE | 14 ANGULAR-OPPOSED |
| SEAL WIDTH | 0.453 INCHES MINIMUM AND 0.481 INCHES MAXIMUM |
| ACCOMMODATED SHAFT MAXIMUM RATED SPEED | 2400 FEET PER MINUTE |
| ACCOMMODATED SHAFT DIAMETER | 3.250 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 4.252 INCHES MINIMUM AND 4.256 INCHES MAXIMUM |
| III TEMP RATING | -65.0 DEG FAHRENHEIT AND 225.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 29510 |
| DESIGN CONTROL REFERENCE | 346738R91 |
Restrictions/Controls & Freight Information | NSN 5330-00-947-4184
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-947-4184
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
