NSN 5330-01-006-2099 MS510001782, MS51000-178-2, A-A-52524/1-178-2
Product Details | PLAIN ENCASED SEAL
5330-01-006-2099 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: MS510001782, MS51000-178-2, A-A-52524/1-178-2, AA5252411782, 455285, 5330-01-006-2099, 01-006-2099, 5330010062099, 010062099
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JUL 1975 | 01-006-2099 | 04214 ( SEAL, PLAIN ENCASED ) |

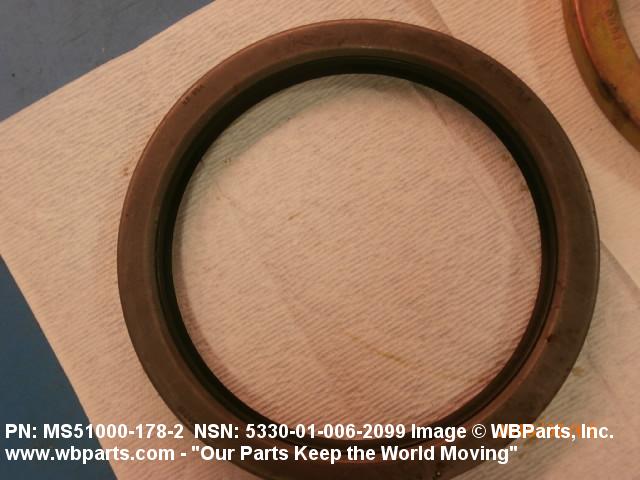

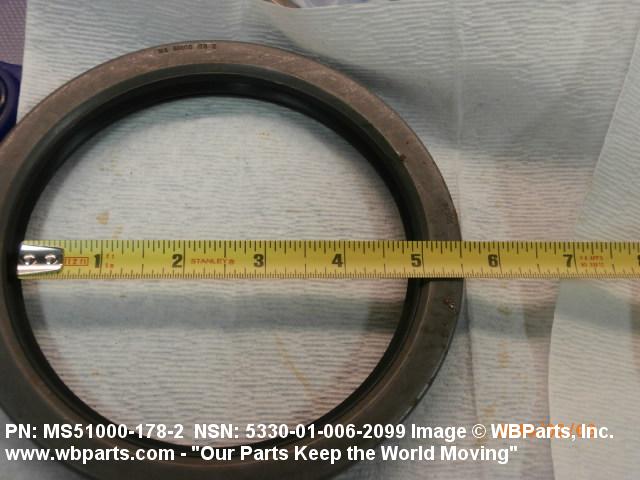

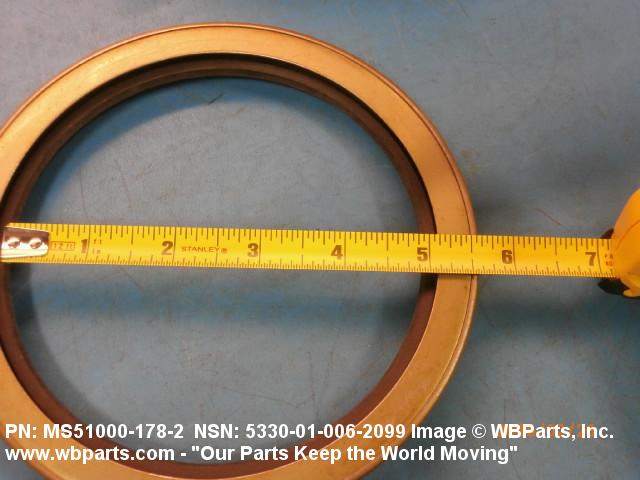

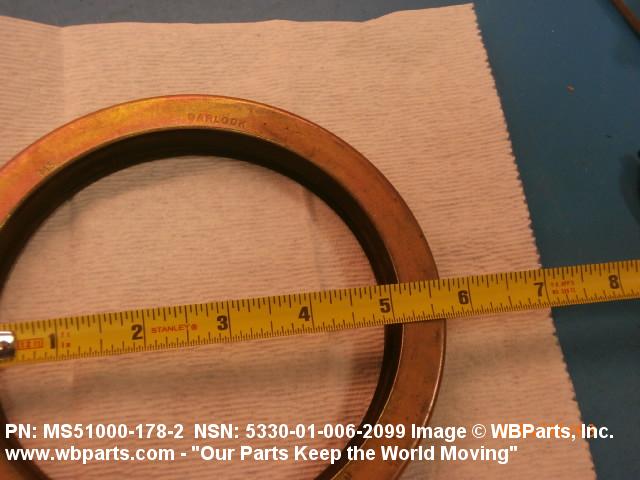

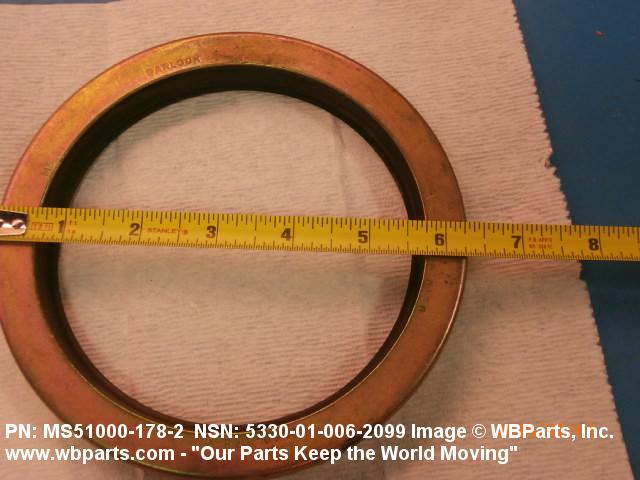

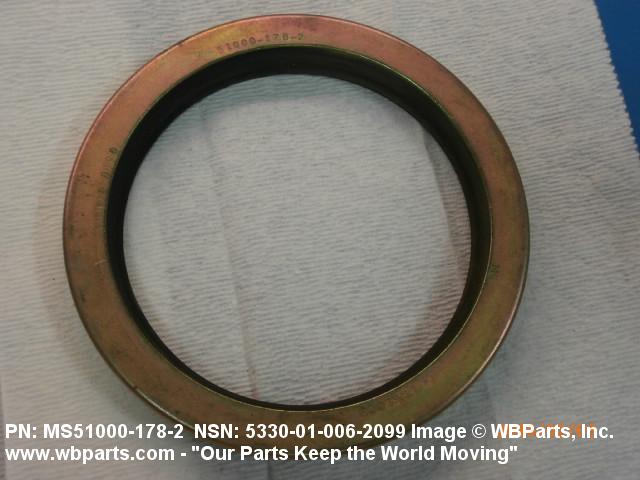

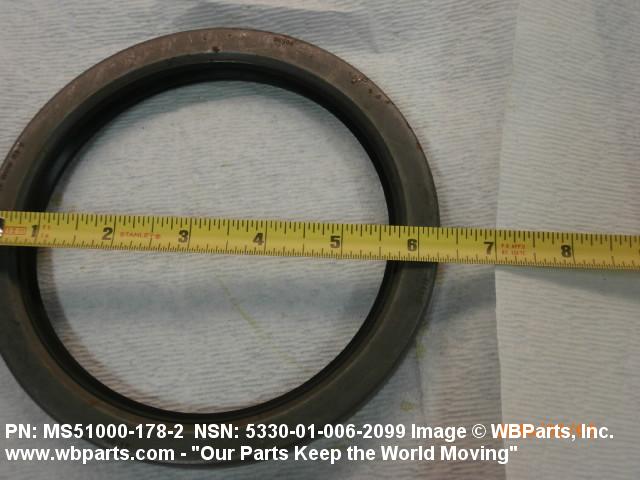

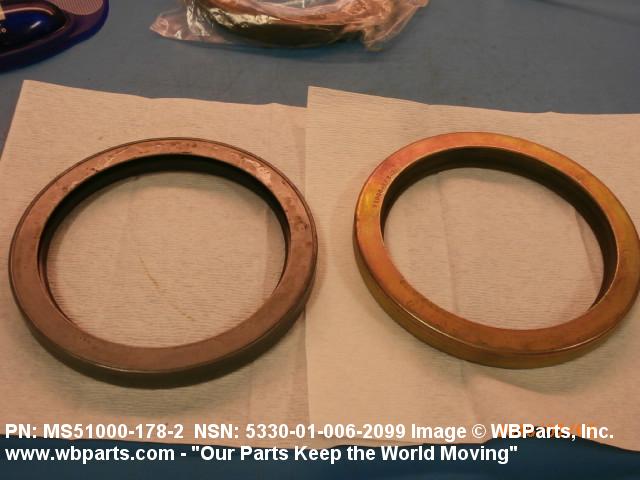

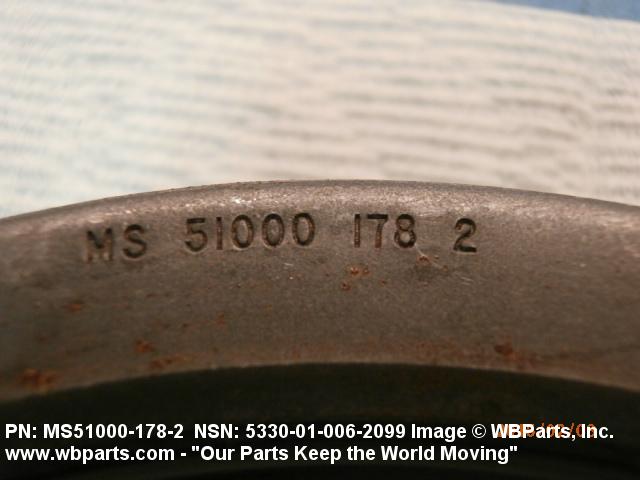

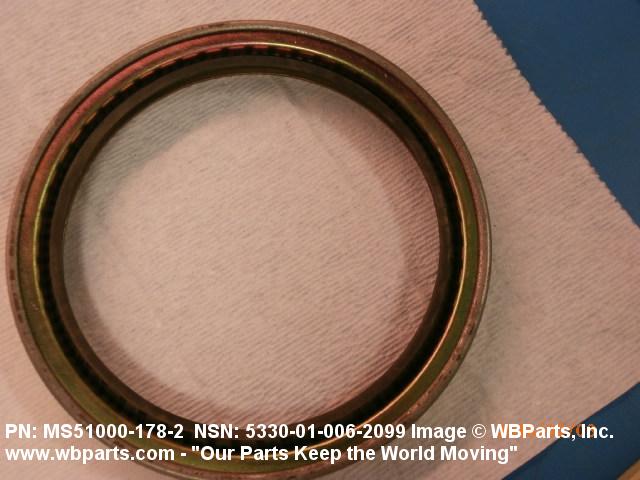

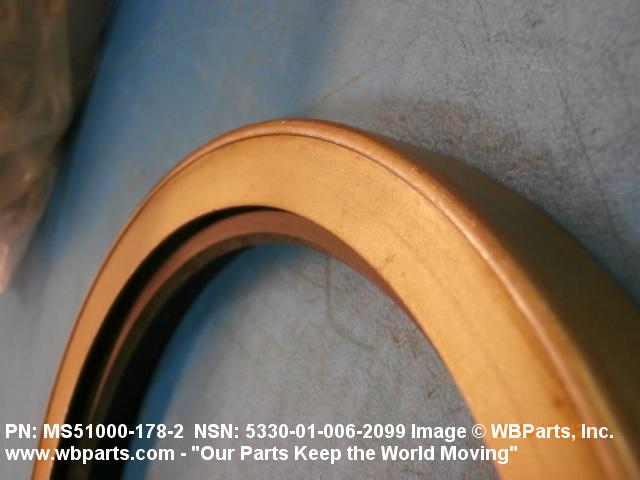

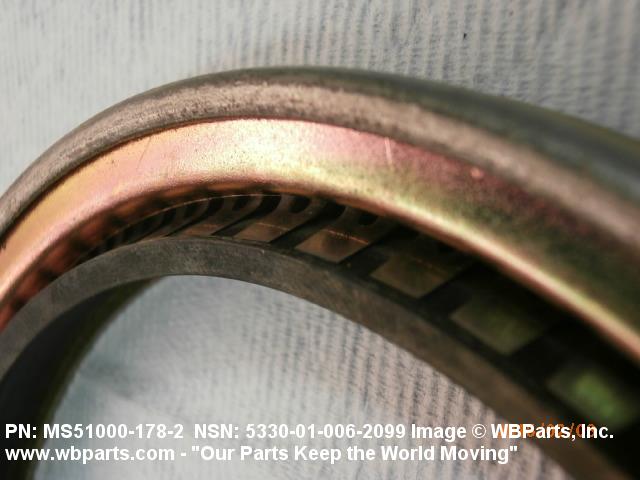

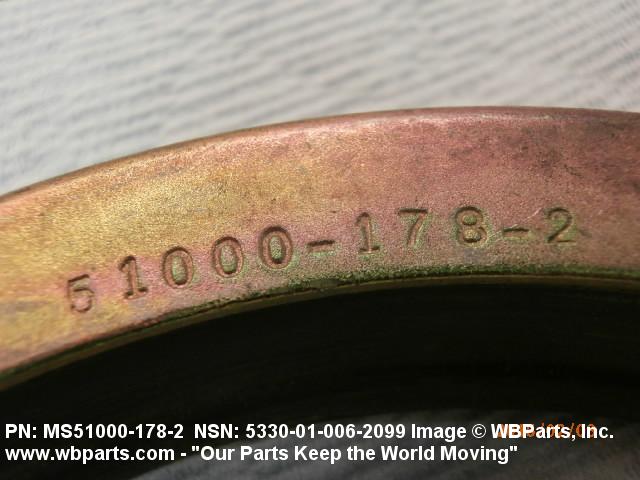

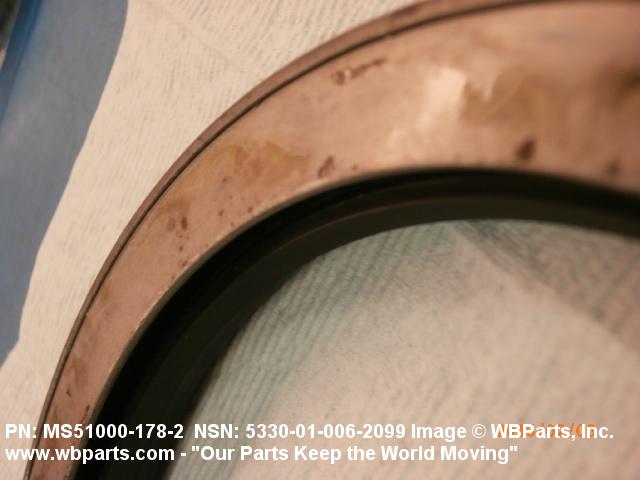

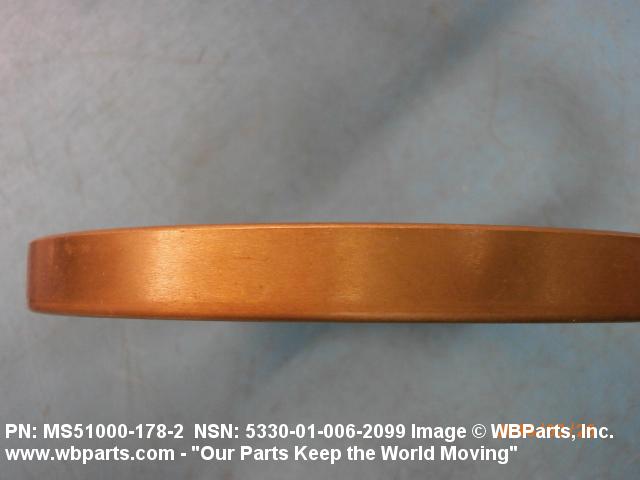

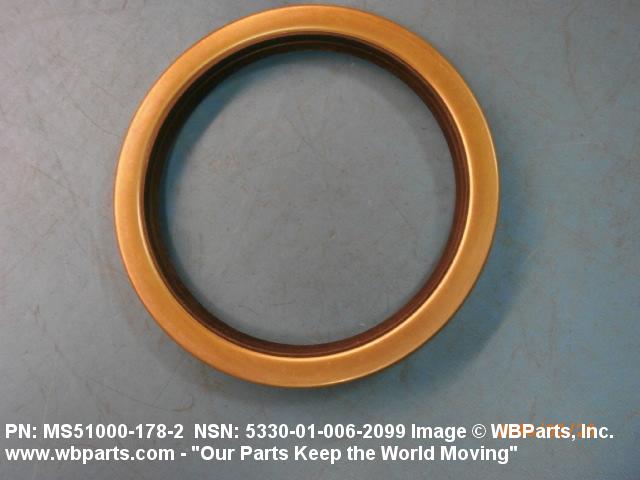

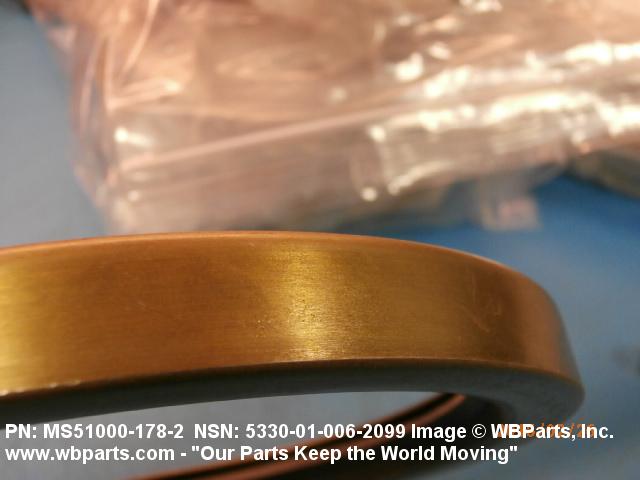

Drawings & Photos | NSN 5330-01-006-2099
Demand History | NSN 5330-01-006-2099
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-006-2099 | 2026-02-47 | 371 | DIBBS |
| 5330-01-006-2099 | 2025-11-321 | 174 | DIBBS |
| 5330-01-006-2099 | 2025-11-310 | 174 | DIBBS |
| 5330-01-006-2099 | 2023-09-257 | 345 | DIBBS |
| 5330-01-006-2099 | 2023-07-201 | 216 | DIBBS |
| 5330-01-006-2099 | 2023-02-58 | 192 | DIBBS |
| 5330-01-006-2099 | 2023-02-47 | 192 | DIBBS |
| 5330-01-006-2099 | 2022-11-307 | 82 | DIBBS |
| 5330-01-006-2099 | 2022-10-296 | 82 | DIBBS |
| 5330-01-006-2099 | 2021-11-327 | 165 | DIBBS |
| 5330-01-006-2099 | 2021-11-312 | 165 | DIBBS |
| 5330-01-006-2099 | 2016-02-34 | 100 | United States |
| 5330-01-006-2099 | 2015-03-74 | 494 | DIBBS |
| 5330-01-006-2099 | 2014-10-295 | 451 | DIBBS |
| 5330-01-006-2099 | 2014-10-274 | 451 | DIBBS |
| 5330-01-006-2099 | 2014-09-266 | 451 | DIBBS |
| 5330-01-006-2099 | 2014-08-232 | 151 | DIBBS |
| 5330-01-006-2099 | 2014-08-227 | 151 | DIBBS |
| 5330-01-006-2099 | 2013-10-297 | 24 | DIBBS |
| 5330-01-006-2099 | 2013-09-266 | 4 | DIBBS |
| MS510001782 | 2013-08-221 | 13 | US |
| 5330-01-006-2099 | 2008-08-226 | 978 | DIBBS |
Cross Reference | NSN 5330-01-006-2099
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-006-2099
Related Products | NSN 5330-01-006-2099
Technical Data | NSN 5330-01-006-2099
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CASE RUBBER SYNTHETIC SEALING ELEMENT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OR ZINC AND CHROMATE CASE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC 1ST TREATMENT RESPONSE OR QQ-Z-325,TY 2,CL 3 FED SPEC 2ND TREATMENT RESPONSE CASE |
| CASE STYLE | 1 SQUARE |
| SEALING ELEMENT STYLE | 4 ANGULAR |

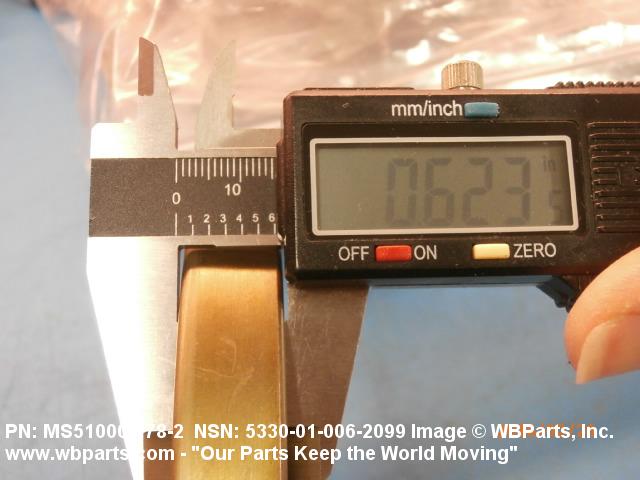

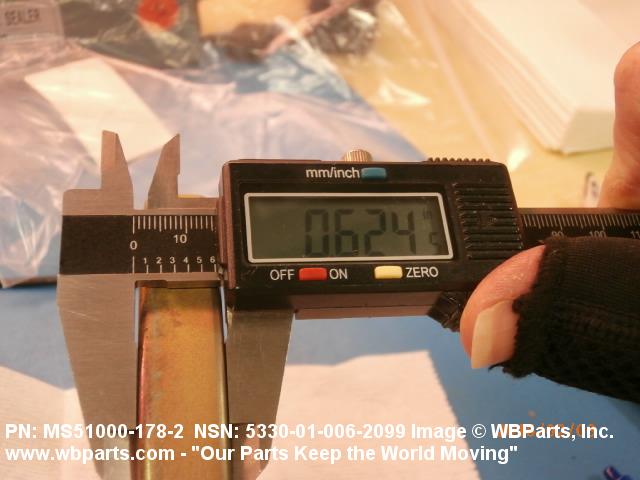

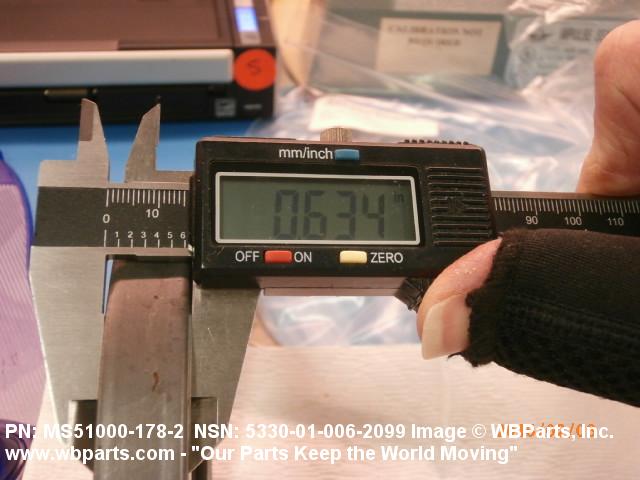

| SEAL WIDTH | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 5.000 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 6.250 INCHES MINIMUM AND 6.256 INCHES MAXIMUM |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-52524/1-178-2 |
Restrictions/Controls & Freight Information | NSN 5330-01-006-2099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-006-2099
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
