NSN 5330-01-029-9927 MS28774230, MS28774-230, MS28774230CP
Product Details | PACKING RETAINER
5330-01-029-9927 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: MS28774230, MS28774-230, MS28774230CP, MS28774-230CP, V3D10035 PIECE 23, V3D10035 PIECE 23CP, V3D10035PIECE23, V3D10035PIECE23CP, V3D10214 ITEM 25, V3D10214 ITEM 25CP, V3D10214ITEM25, V3D10214ITEM25CP, MIL-R-8791/1-23 0, MILR87911230, 5330-01-029-9927, 01-029-9927, 5330010299927, 010299927
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 OCT 1976 | 01-029-9927 | 13706 ( RETAINER, PACKING ) |

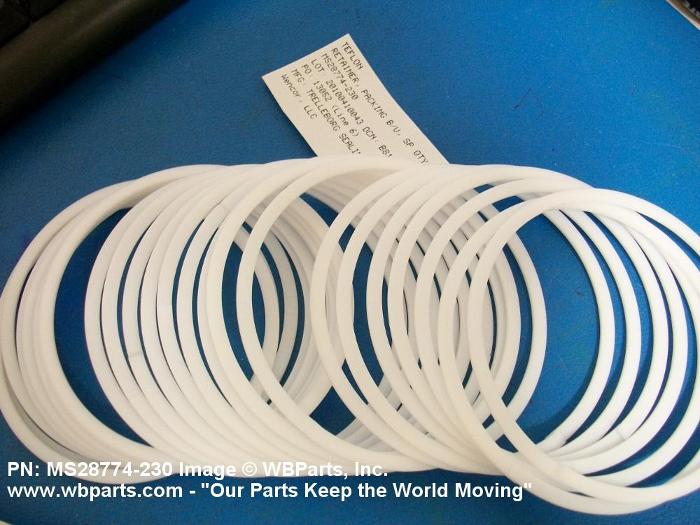

Drawings & Photos | NSN 5330-01-029-9927
Demand History | NSN 5330-01-029-9927
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-029-9927 | 2024-03-85 | 120 | Poland |
| 5330-01-029-9927 | 2023-11-318 | 775 | DIBBS |
| 5330-01-029-9927 | 2023-09-250 | 775 | DIBBS |
| 5330-01-029-9927 | 2023-08-239 | 775 | DIBBS |
| 5330-01-029-9927 | 2021-03-88 | 468 | DIBBS |
| 5330-01-029-9927 | 2021-03-77 | 468 | DIBBS |
| MS28774230 | 2015-01-27 | 40 | SG |
| MS28774230 | 2011-07-203 | 10 | India |
Cross Reference | NSN 5330-01-029-9927
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-R-8791/1-23 0 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS28774-230 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS28774-230CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| V3D10035 PIECE 23 | 99517 | VACCO INDUSTRIES |
| V3D10035 PIECE 23CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| V3D10214 ITEM 25 | 99517 | VACCO INDUSTRIES |
| V3D10214 ITEM 25CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-029-9927
Related Products | NSN 5330-01-029-9927
Technical Data | NSN 5330-01-029-9927
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3651 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D2 SQUARE/RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.045 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 2.521 INCHES MINIMUM AND 2.523 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 2.759 INCHES MINIMUM AND 2.761 INCHES MAXIMUM |
| JOINT TYPE | SCARF-PERIPHERAL OVERALL |
| DEPARTURE FROM CITED DOCUMENT | CLEANED IAW MIL-STD 1330 |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28774-230 |
Restrictions/Controls & Freight Information | NSN 5330-01-029-9927
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-029-9927
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | CP | An item that requires special cleaning and packaging for oxygen/nitrogen service (e.g, valves, piping systems, generators). |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
