NSN 5330-01-077-2612 MS28774133, MS28774-133, MS28774133CP
Product Details | PACKING RETAINER
5330-01-077-2612 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: MS28774133, MS28774-133, MS28774133CP, MS28774-133CP, M8791/1-133, M87911133, MIL-R-8791/1-133, MILR87911133, V3D10108 ITEM 41, V3D10108 ITEM 41CP, V3D10108ITEM41, V3D10108ITEM41CP, 54370-900 ITEM 12, 54370-900 ITEM 12CP, 54370900ITEM12, 54370900ITEM12CP, 5330-01-077-2612, 01-077-2612, 5330010772612, 010772612
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 1979 | 01-077-2612 | 13706 ( RETAINER, PACKING ) |

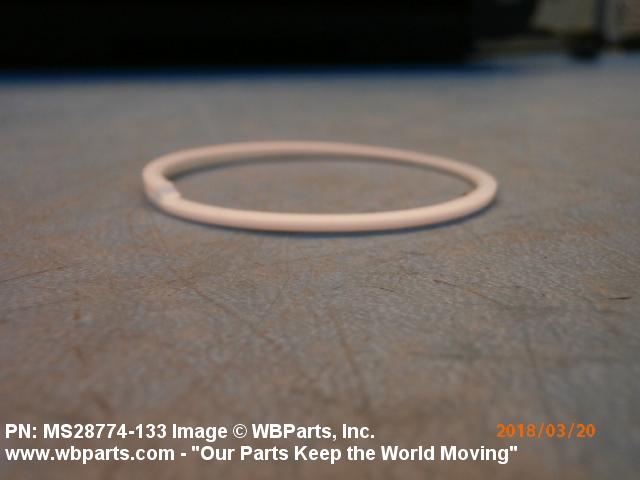

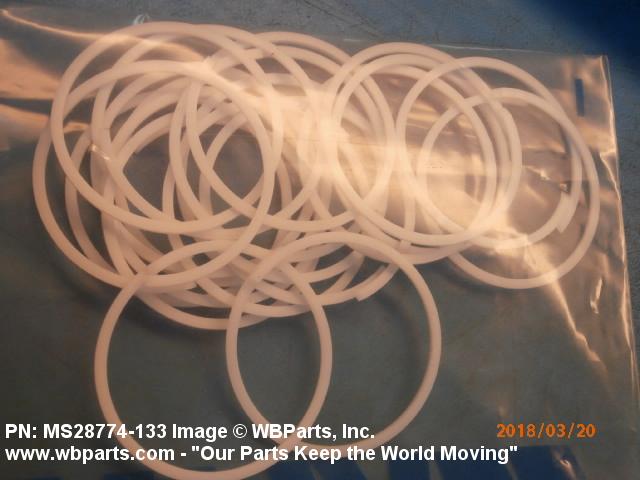

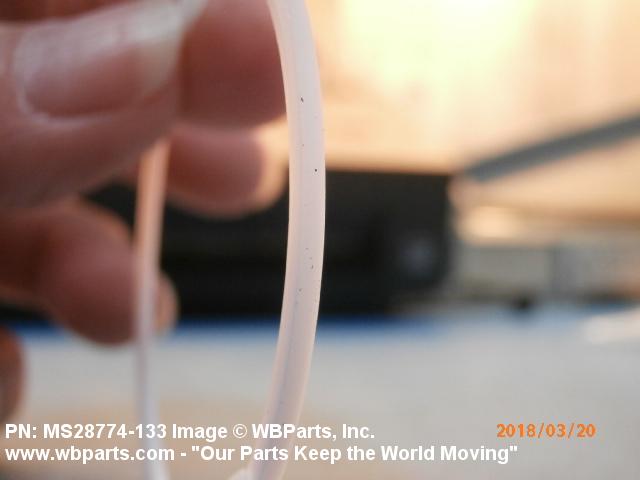

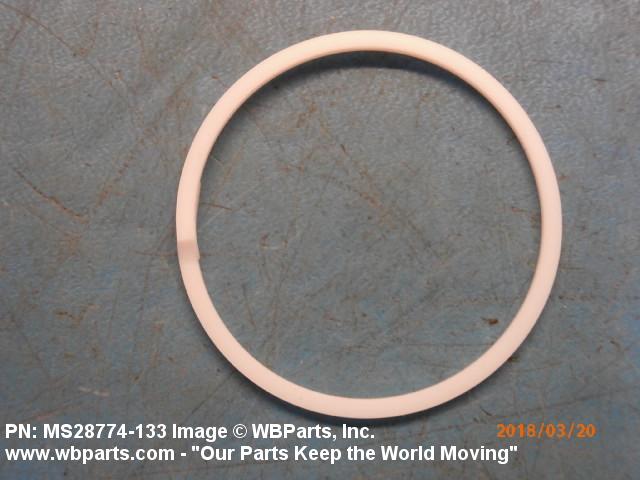

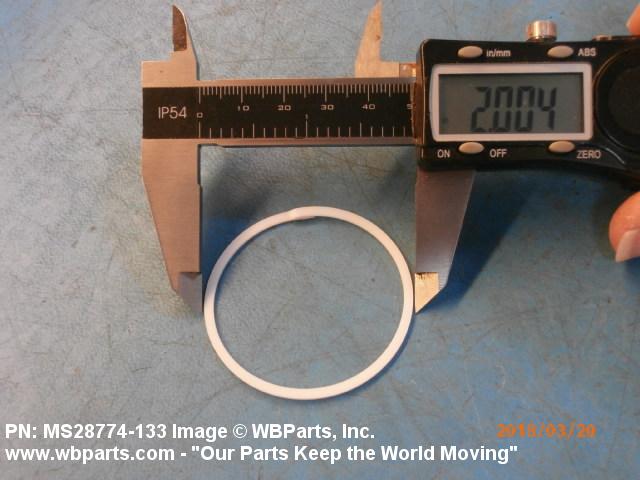

Drawings & Photos | NSN 5330-01-077-2612
Demand History | NSN 5330-01-077-2612
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-077-2612 | 2019-01-22 | 868 | DIBBS |
| 5330-01-077-2612 | 2019-01-13 | 868 | DIBBS |
| MS28774-133 | 2018-11-331 | 2 | |
| 5330-01-077-2612 | 2018-03-64 | 592 | DIBBS |
| MS28774133 | 2018-02-57 | 4 | United States |
| MS28774-133 | 2018-02-54 | 2 | |
| 5330-01-077-2612 | 2017-11-324 | 235 | DIBBS |
| 5330-01-077-2612 | 2017-11-309 | 228 | DIBBS |
| 5330-01-077-2612 | 2016-12-340 | 350 | DIBBS |
| 5330-01-077-2612 | 2016-06-158 | 558 | DIBBS |
| 5330-01-077-2612 | 2015-12-341 | 417 | DIBBS |
| 5330-01-077-2612 | 2014-10-294 | 417 | DIBBS |
| MS28774133 | 2006-05-139 | 2 | Malaysia |
Cross Reference | NSN 5330-01-077-2612
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 54370-900 ITEM 12 | 99643 | EATON CORPORATION DBA EATON AEROSPACE |
| 54370-900 ITEM 12CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| M8791/1-133 | 0KKV2 | HYPEROX TECHNOLOGIES |
| M8791/1-133 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-R-8791/1-133 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS28774-133 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS28774-133 | 99517 | VACCO INDUSTRIES |
| MS28774-133CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| V3D10108 ITEM 41 | 99517 | VACCO INDUSTRIES |
| V3D10108 ITEM 41CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-077-2612
Related Products | NSN 5330-01-077-2612
Technical Data | NSN 5330-01-077-2612
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC TETRAFLUOROETHYLENE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D2 SQUARE/RECTANGULAR |

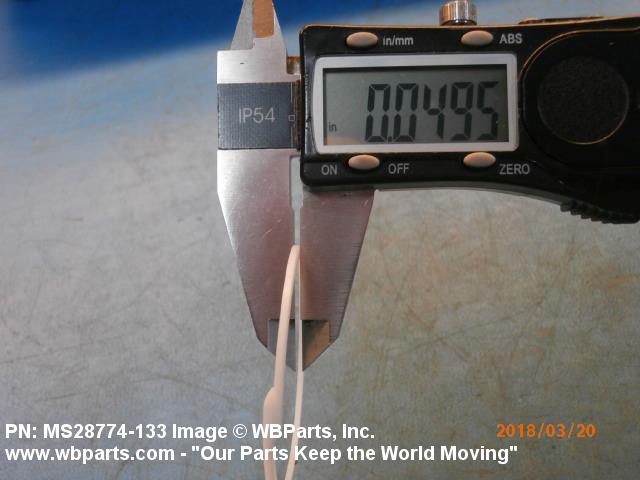

| CROSS-SECTIONAL HEIGHT | 0.045 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |

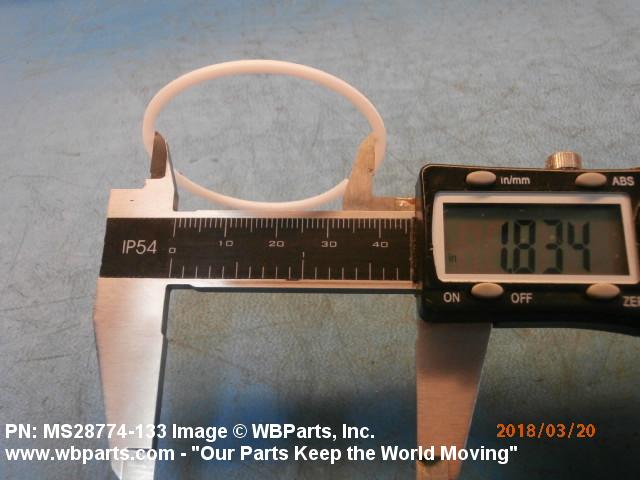

| CENTER HOLE DIAMETER | 1.833 INCHES MINIMUM AND 1.835 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 2.004 INCHES MINIMUM AND 2.008 INCHES MAXIMUM |
| JOINT QUANTITY | 1 |

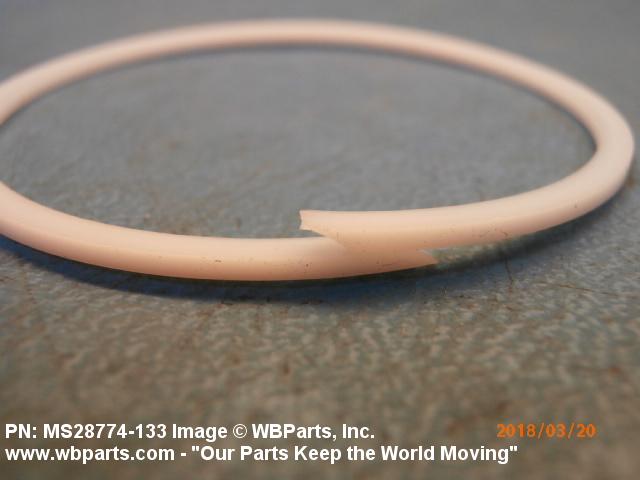

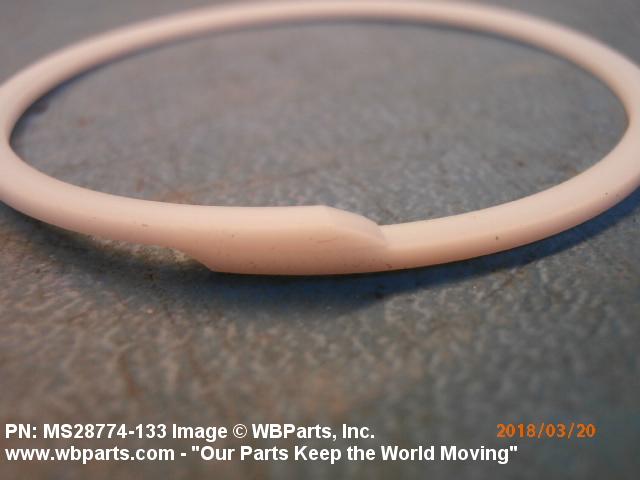

| JOINT TYPE | SCARF-PERIPHERAL RETAINER |
| DEPARTURE FROM CITED DOCUMENT | SPECIAL CLEADED IN ACCORDANCE WITH MIL-STD-1330 |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28774-133 |
Restrictions/Controls & Freight Information | NSN 5330-01-077-2612
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-077-2612
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | CP | An item that requires special cleaning and packaging for oxygen/nitrogen service (e.g, valves, piping systems, generators). |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
