NSN 5330-01-096-8821 M832482113, M83248-2-113, M832482113CP
Product Details | PREFORMED PACKING
5330-01-096-8821 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: M832482113, M83248-2-113, M832482113CP, M83248-2-113CP, V-7445 PIECE 50, V7445PIECE50, 52660-300 ITEM NO. 14, 52660-300 ITEM NO. 14CP, 52660300ITEMNO14, 52660300ITEMNO14CP, 63750-100 ITEM 21, 63750-100 ITEM 21CP, 63750100ITEM21, 63750100ITEM21CP, 5330-01-096-8821, 01-096-8821, 5330010968821, 010968821
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JUN 1980 | 01-096-8821 | 04521 ( PACKING, PREFORMED ) |

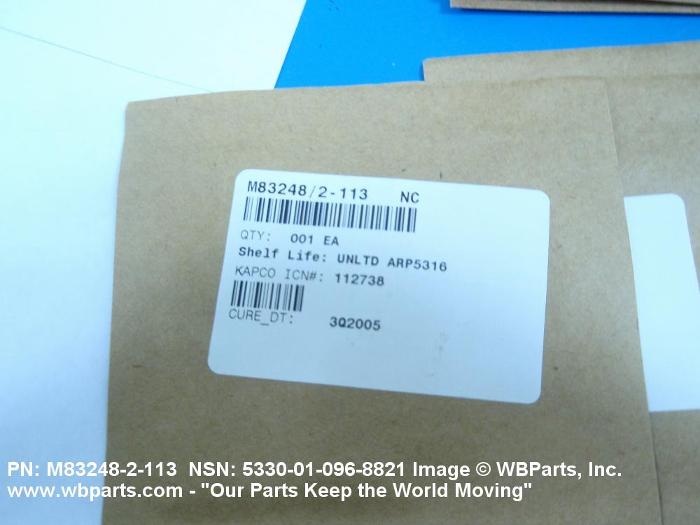

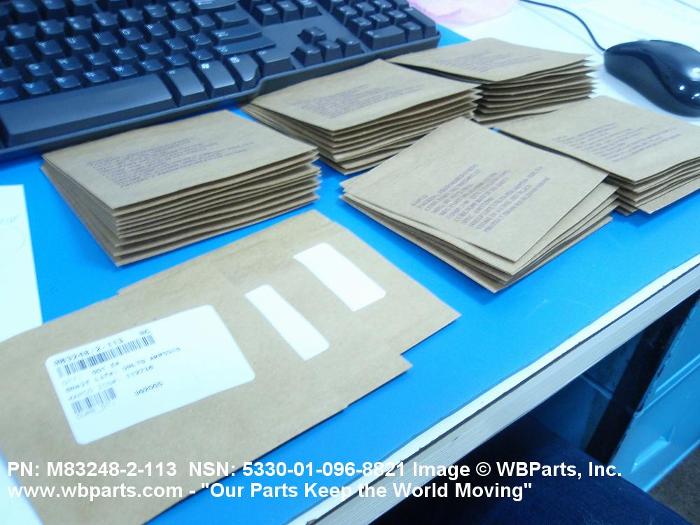

Drawings & Photos | NSN 5330-01-096-8821
Demand History | NSN 5330-01-096-8821
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M83248-2-113CP | 2013-08-229 | 500 | Canada |
| M832482113CP | 2008-12-336 | 30 | us |
Cross Reference | NSN 5330-01-096-8821
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 52660-300 ITEM NO. 14 | 99643 | EATON CORPORATION DBA EATON AEROSPACE |
| 52660-300 ITEM NO. 14CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 63750-100 ITEM 21 | 99643 | EATON CORPORATION DBA EATON AEROSPACE |
| 63750-100 ITEM 21CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| M83248-2-113 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83248-2-113CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| V-7445 PIECE 50 | 53154 | PORTLAND VALVE LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-096-8821
Technical Data | NSN 5330-01-096-8821
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-83248 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 85.0 SHORE DUROMETER A MINIMUM AND 95.0 SHORE DUROMETER A MAXIMUM OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D1 O-RING |
| CROSS-SECTIONAL HEIGHT | 0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 0.542 INCHES MINIMUM AND 0.556 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 2 CLASS |
| DEPARTURE FROM CITED DOCUMENT | CLEANED IN ACCORDANCE WITH MIL-P-52211 |
| III TEMP RATING | -30.0 DEG FAHRENHEIT AND 500.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83248-2-113 |
Restrictions/Controls & Freight Information | NSN 5330-01-096-8821
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
