NSN 5330-01-117-7474 A6208, 1015CSB, 1015-CSB
Product Details | METAL SEAL RING
5330-01-117-7474 A circular shaped item designed to be installed in a specially prepared groove or counterbore to provide a low pressure seal. It may be supplied in various cross-sectional shapes and is cut through at one point to allow for installation and fitting. Excludes items whose primary function is to provide sealing, wiping, or wearing surface capabilities for piston configurations. See also RING, PISTON and RING, WIPER.
Part Alternates: A6208, 1015CSB, 1015-CSB, 4045T13P03, 4045T13P04, 5330-01-117-7474, 01-117-7474, 5330011177474, 011177474
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 1981 | 01-117-7474 | 21205 ( SEAL RING, METAL ) |
Drawings & Photos | NSN 5330-01-117-7474
Demand History | NSN 5330-01-117-7474
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1015-CSB | 2020-02-42 | 500 | DIBBS |
| 4045T13P03 | 2020-02-42 | 500 | DIBBS |
| 4045T13P04 | 2020-02-42 | 500 | DIBBS |
| A6208 | 2020-02-42 | 500 | DIBBS |
| 1015-CSB | 2020-01-28 | 500 | DIBBS |
| 4045T13P03 | 2020-01-28 | 500 | DIBBS |
| 4045T13P04 | 2020-01-28 | 500 | DIBBS |
| A6208 | 2020-01-28 | 500 | DIBBS |
| 1015-CSB | 2019-10-279 | 69 | DIBBS |
| 4045T13P03 | 2019-10-279 | 69 | DIBBS |
| 4045T13P04 | 2019-10-279 | 69 | DIBBS |
| A6208 | 2019-10-279 | 69 | DIBBS |
| 1015-CSB | 2019-07-188 | 110 | DIBBS |
| 4045T13P03 | 2019-07-188 | 110 | DIBBS |
| 4045T13P04 | 2019-07-188 | 110 | DIBBS |
| A6208 | 2019-07-188 | 110 | DIBBS |
| 5330-01-117-7474 | 2016-06-173 | 500 | DIBBS |
| 5330-01-117-7474 | 2016-06-160 | 255 | DIBBS |
| 5330-01-117-7474 | 2016-06-154 | 229 | DIBBS |
| 5330-01-117-7474 | 2016-04-119 | 255 | DIBBS |
| 5330-01-117-7474 | 2016-02-56 | 229 | DIBBS |
| 5330-01-117-7474 | 2015-08-239 | 140 | DIBBS |
| 5330-01-117-7474 | 2015-08-228 | 140 | DIBBS |
| 5330-01-117-7474 | 2014-09-254 | 3 | MANUAL |
| 5330-01-117-7474 | 2012-02-60 | 8 | Hong Kong |
| 4045T13P03 | 2012-02-52 | 8 | Hong Kong |
| 4045T13P03 | 2012-02-37 | 5 | Hong Kong |
| 4045T13P03 | 2012-02-32 | 5 | Hong Kong |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-117-7474
Related Products | NSN 5330-01-117-7474
Technical Data | NSN 5330-01-117-7474
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5596 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5589 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| METALLIC HARDNESS RATING | NOT RATED |

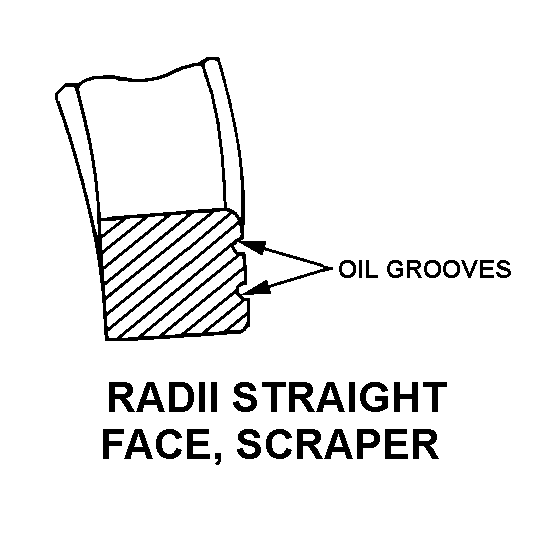

| CROSS-SECTIONAL SHAPE STYLE | A33 RADII STRAIGHT FACE, SCRAPER |
| JOINT STYLE | 1 VERTICAL JOINT |
| RING STYLE | 5 EXPANDING CONCENTRIC |
| OUTSIDE DIAMETER | 12.588 INCHES MINIMUM AND 12.618 INCHES MAXIMUM |
| RADIAL WALL THICKNESS | 0.2920 INCHES MINIMUM AND 0.3180 INCHES MAXIMUM |
| OVERALL WIDTH | 0.2350 INCHES MINIMUM AND 0.2450 INCHES MAXIMUM |
| MANUFACTURERS CODE | 99207 |
| MFR SOURCE CONTROLLING REFERENCE | 4045T13P03 |
