NSN 5330-01-160-2085 MS28775021, MS28775-021, 01-160-2085

Product Details | PREFORMED PACKING

5330-01-160-2085 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.

Part Alternates: MS28775021, MS28775-021, 5330-01-160-2085, 01-160-2085, 5330011602085, 011602085

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 AUG 1983	01-160-2085	04521 ( PACKING, PREFORMED )

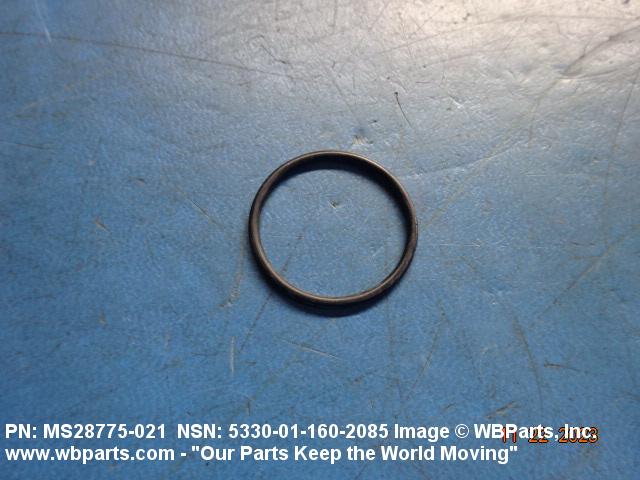

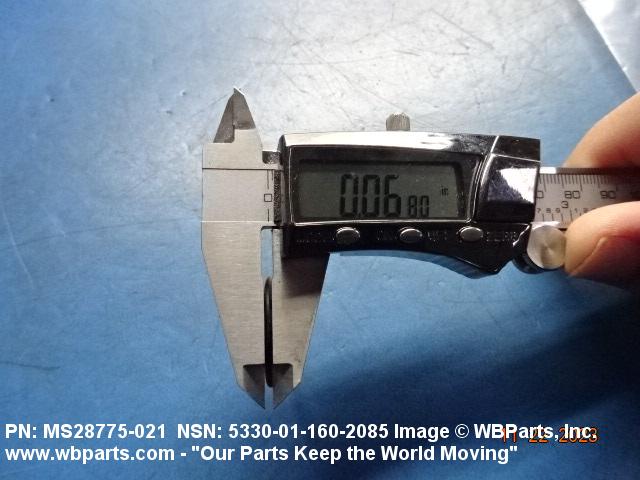

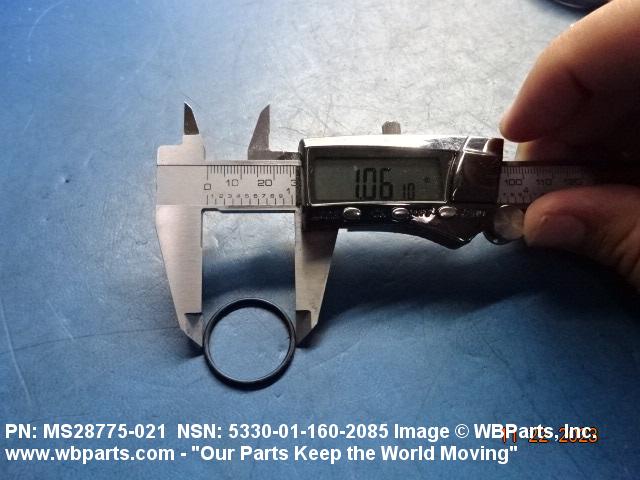

Drawings & Photos | NSN 5330-01-160-2085

Part Number	Request Date	QTY	Origin
MS28775021	2024-09-269	75	Israel
MS28775021	2024-09-269	128	Israel
MS28775021	2024-03-68	10	Panama
MS28775021	2024-01-22	2	US
5330-01-160-2085	2023-10-296	4	us
MS28775021	2022-09-272	50	KE
MS28775021	2022-08-241	450	United States
5330-01-160-2085	2022-08-223	15	Poland
MS28775021	2022-07-187	10	us
MS28775021	2022-07-187	8	us
MS28775021	2022-06-181	2	us
MS28775021	2021-09-253	50	United States
MS28775021	2021-09-253	100	United States
5330-01-160-2085	2021-04-104	4	US
5330-01-160-2085	2019-01-15	1234	DIBBS
5330-01-160-2085	2018-05-150	1315	DIBBS
MS28775-021	2017-07-200	8	Canada
MS28775-021	2017-06-171	4	United States
MS28775021	2017-03-82	3	US
5330-01-160-2085	2015-02-57	2942	DIBBS
5330-01-160-2085	2014-06-181	1000	DIBBS
5330-01-160-2085	2014-06-169	1000	DIBBS
MS28775021	2014-04-97	20	US
MS28775-021	2014-04-97	20	US
5330-01-160-2085	2013-09-247	1	DIBBS-RFPs
5330-01-160-2085	2013-07-206	1	DIBBS-RFPs
5330-01-160-2085	2013-07-205	1144	DIBBS
MS28775021	2013-06-175	100	United States
MS28775021	2013-05-140	1000	India
MS28775021	2013-03-81	100	United States
5330-01-160-2085	2012-04-100	1231	DIBBS
MS28775-021	2011-04-95	16	United States
5330-01-160-2085	2010-07-211	993	DIBBS
5330-01-160-2085	2009-03-66	2	US
5330-01-160-2085	2007-11-317	75	US

Cross Reference | NSN 5330-01-160-2085

Part Number	Cage Code	Manufacturer
MS28775-021	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS28775-021	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-160-2085

Compare

Related Products | NSN 5330-01-160-2085

5330-01-160-2086, 5330-01-160-2087, 5330-01-160-2088, 5330-01-160-2089, 5330-01-160-2091

Technical Data | NSN 5330-01-160-2085

Characteristic	Specifications

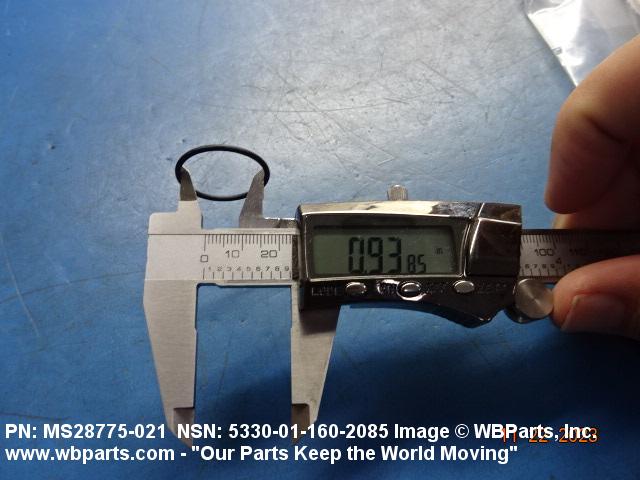

CENTER HOLE DIAMETER	0.017 INCHES MINIMUM AND 0.935 INCHES MAXIMUM
SPECIAL FEATURES	CERTIFIED FREE FROM MERCURY CONTAMINATION
SPECIAL TEST FEATURES	SPECIAL QUALITY CONTROL TESTING
DEPARTURE FROM CITED DOCUMENT	AS MODIFIED BY MATERIAL WHICH MUST CONFORM TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONS
CRITICALITY CODE JUSTIFICATION	ZZZW AND FEAT
III TEMP RATING	-65.0 DEG FAHRENHEIT AND 275.0 DEG FAHRENHEIT

Restrictions/Controls & Freight Information | NSN 5330-01-160-2085

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Y	180 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-160-2085

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each
