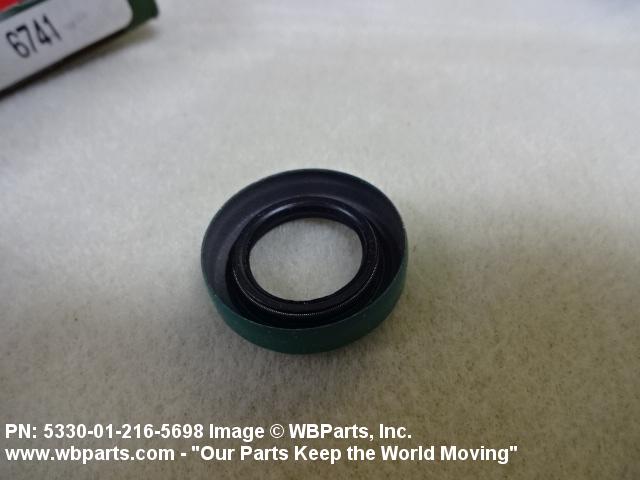

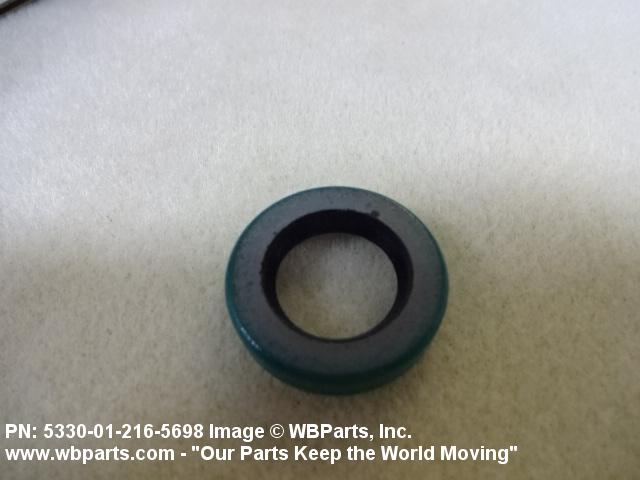

Product Details | PLAIN ENCASED SEAL
5330-01-216-5698 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: 23045344, 544306, 5330-01-216-5698, 01-216-5698, 5330012165698, 012165698
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 SEP 1985 | 01-216-5698 | 04214 ( SEAL, PLAIN ENCASED ) |
Drawings & Photos | NSN 5330-01-216-5698
Demand History | NSN 5330-01-216-5698
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23045344 | 2024-10-298 | 360 | DIBBS |
| 544306 | 2024-10-298 | 360 | DIBBS |
| 544306 | 2022-06-168 | 25 | United States |
| 544306 | 2020-01-14 | 30 | United States |
| 544306 | 2020-01-14 | 30 | United States |
| 23045344 | 2019-09-270 | 950 | DIBBS |
| 544306 | 2019-09-270 | 950 | DIBBS |
| 23045344 | 2019-09-262 | 950 | DIBBS |
| 544306 | 2019-09-262 | 950 | DIBBS |
| 23045344 | 2019-04-118 | 140 | DIBBS |
| 544306 | 2019-04-118 | 140 | DIBBS |
| 23045344 | 2019-02-59 | 669 | DIBBS |
| 544306 | 2019-02-59 | 669 | DIBBS |
| 544306 | 2018-10-303 | 8 | United States |
| 5330-01-216-5698 | 2018-09-264 | 280 | DIBBS |
| 5330-01-216-5698 | 2018-09-256 | 280 | DIBBS |
| 5330-01-216-5698 | 2018-04-102 | 1 | United States |
| 5330-01-216-5698 | 2018-04-93 | 1 | United States |
| 544306 | 2018-04-93 | 1 | United States |
| 5330-01-216-5698 | 2017-06-170 | 257 | DIBBS |
| 5330-01-216-5698 | 2015-06-158 | 366 | DIBBS |
| 5330-01-216-5698 | 2013-12-344 | 318 | DIBBS |
| 23045344 | 2013-03-88 | 10 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-216-5698
Related Products | NSN 5330-01-216-5698
Technical Data | NSN 5330-01-216-5698
| Characteristic | Specifications |
|---|---|

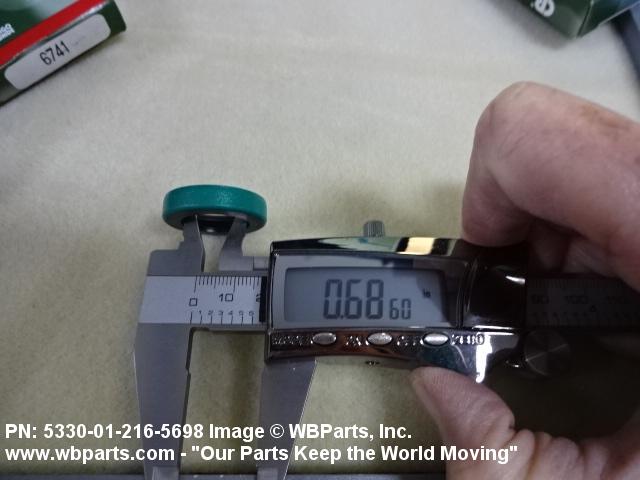

| ACCOMMODATED SHAFT DIAMETER | 0.686 INCHES NOMINAL |
| MATERIAL | STEEL CASE |

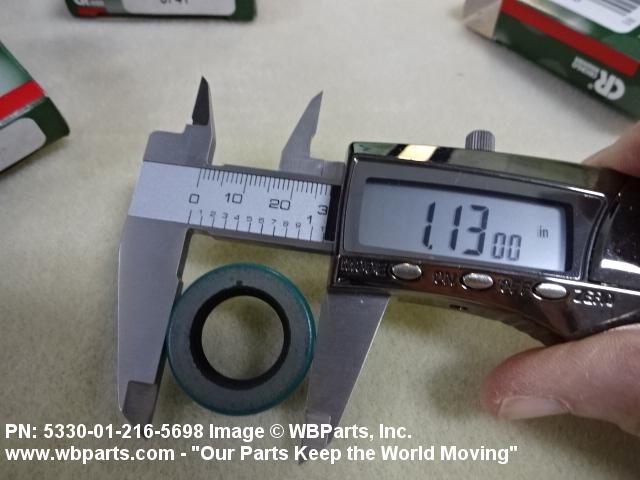

| HOUSING BORE DIAMETER | 1.123 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| CASE STYLE | SQUARE |
| MATERIAL | RUBBER SILICONE CLASS Q SEALING ELEMENT |
| SEALING ELEMENT STYLE | VERTICAL |
| MATERIAL | STEEL SPRING |
| TEMP RATING | 300.0 DEG FAHRENHEIT |

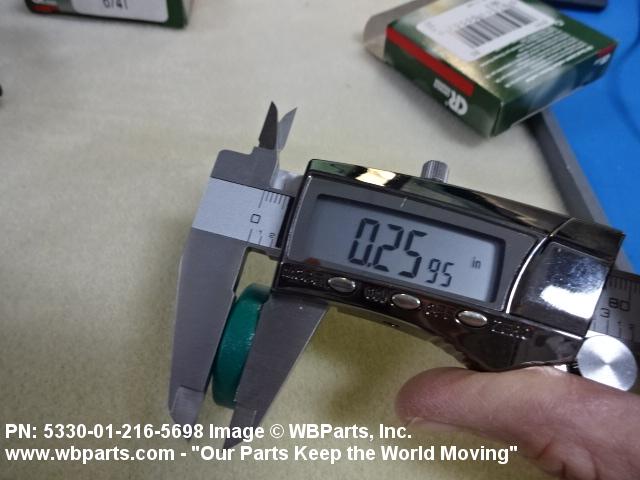

| SEAL WIDTH | 0.241 INCHES MINIMUM AND 0.271 INCHES MAXIMUM |
