NSN 5330-01-222-3502 M83248/1-014, M832481014, AS3209014

Product Details | PREFORMED PACKING

5330-01-222-3502 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.

Part Alternates: M83248/1-014, M832481014, AS3209014, AS3209-014 , J221P014 , 283486-0001 PIECE 62, 2834860001PIECE62, 501-1793 PC. NO. 20 , 5011793PCNO20, 5330-01-222-3502, 01-222-3502, 5330012223502, 012223502

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	11 DEC 1985	01-222-3502	04521 ( PACKING, PREFORMED )

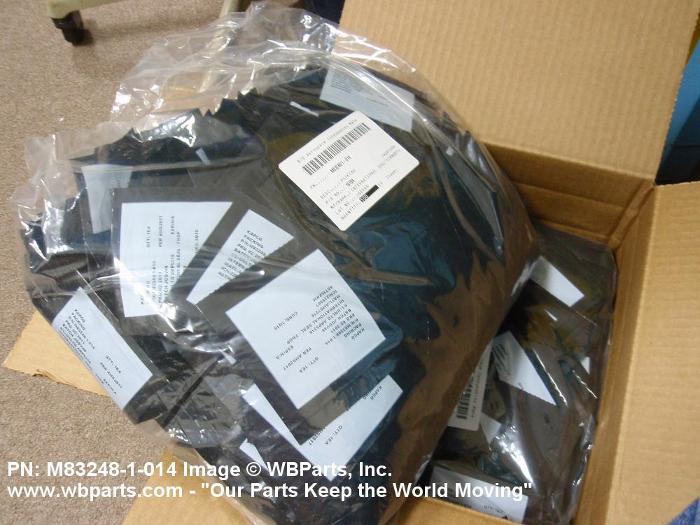

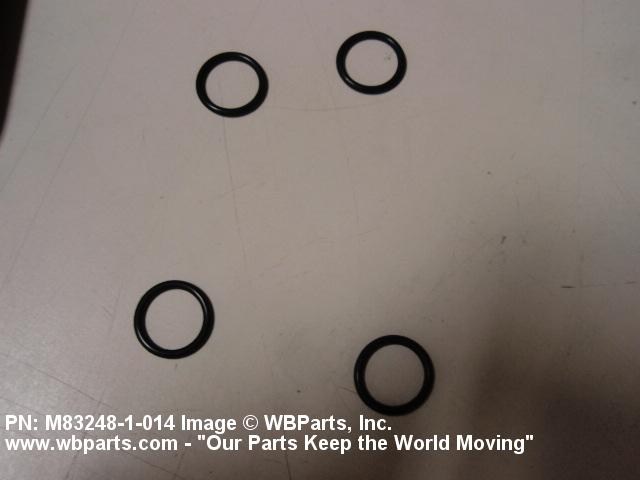

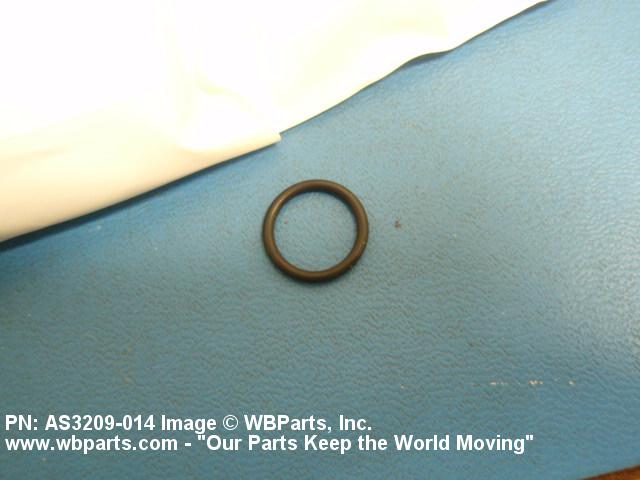

Drawings & Photos | NSN 5330-01-222-3502

Part Number	Request Date	QTY	Origin
AS3209014	2025-11-316	100	CN
M832481014	2025-11-316	100	CN
AS3209014	2025-04-92	10	United States
M832481014	2025-01-22	1	ZA
M832481014	2025-01-22	2	ZA
M832481014	2025-01-22	1	ZA
M832481014	2025-01-22	2	ZA
AS3209014	2025-01-21	4	US
M832481014	2024-11-317	16	United States
M832481014	2024-10-276	20	IN
AS3209014	2024-09-269	12	US
J221P014	2024-08-229	1	Kazakhstan
5330-01-222-3502	2024-08-229	10	Kazakhstan
AS3209014	2023-08-229	50	US
AS3209-014	2023-05-151	100	Philippines
M832481014	2022-07-196	2	United States
AS3209014	2022-03-75	10	MX
AS3209014	2022-02-35	94	DE
AS3209014	2021-10-300	20	United States
AS3209-014	2021-05-123	24	US
5330-01-222-3502	2020-09-265	17681	DIBBS
AS3209-014	2020-04-112	0
AS3209-014	2020-02-49	26
M832481014	2019-07-197	3	IN
AS3209-014	2019-05-137	18
J221P014	2019-03-71	50	United States
5330-01-222-3502	2019-01-22	50800	DIBBS
5330-01-222-3502	2019-01-09	50800	DIBBS
AS3209014	2018-11-330	80	United States
J221P014	2018-10-288	2	US
5330-01-222-3502	2018-10-288	2	US
5330-01-222-3502	2018-08-214	3000	DIBBS
5330-01-222-3502	2018-06-178	21500	DIBBS
M832481014	2018-05-143	6	United States
J221P014	2018-05-135	1	FX
5330-01-222-3502	2018-03-67	5500	DIBBS
M832481014	2017-05-137	20	United States
M832481014	2017-05-137	200	United States
5330-01-222-3502	2017-04-117	5	Malaysia
M832481014	2017-03-75	100	Turkey
AS3209-014	2017-03-68	9
AS3209014	2017-03-65	5	US
AS3209-014	2017-02-52	5	Philippines
M83248/1-014	2017-02-47	30	Philippines
AS3209-014	2016-12-343	9
AS3209014	2016-10-305	2	United States
AS3209014	2016-09-252	8	US
AS3209014	2016-07-200	30	US
AS3209014	2015-07-209	24	KR
M83248/1-014	2015-03-85	214	US
M83248/1-014	2015-03-69	500	US
5330-01-222-3502	2015-03-61	17000	DIBBS
M832481014	2015-01-19	6	Ecuador
M832481014	2014-07-199	500	US
5330-01-222-3502	2014-07-199	32000	DIBBS
AS3209014	2014-02-49	1	US
5330-01-222-3502	2013-12-346	12000	DIBBS
5330-01-222-3502	2013-11-326	6000	DIBBS
M83248/1-014	2013-11-326	15	South Korea
AS3209014	2013-09-252	100	US
AS3209014	2013-07-197	10	LK
5330-01-222-3502	2013-06-164	35000	DIBBS
5330-01-222-3502	2013-04-108	30	MANUAL
5330-01-222-3502	2013-03-81	15000	DIBBS
J221P014	2013-03-77	1	US
5330-01-222-3502	2013-02-37	34500	DIBBS
5330-01-222-3502	2012-11-318	12662	DIBBS
M83248/1-014	2012-11-310	50
J221P014	2012-10-299	100	Turkey
J221P014	2012-10-282	100	Turkey
AS3209014	2012-10-277	1	UK
AS3209-014	2012-09-254	10	AR
5330-01-222-3502	2012-08-237	20353	DIBBS
5330-01-222-3502	2012-04-100	28774	DIBBS
5330-01-222-3502	2011-10-286	20927	DIBBS
M83248/1-014	2011-09-269	12	ID
5330-01-222-3502	2011-06-171	15904	DIBBS
AS3209-014	2011-06-155	50	Saudi Arabia
M83248/1-014	2010-11-316	30
5330-01-222-3502	2010-09-270	8740	DIBBS
AS3209014	2010-07-188	4	US
M832481014	2010-05-124	50	US
J221P014	2010-02-49	5	Malaysia
5330-01-222-3502	2009-12-344	4410	DIBBS
5330-01-222-3502	2009-05-146	5015	DIBBS
5330-01-222-3502	2009-05-141	770	DIBBS
5330-01-222-3502	2009-04-113	1	US
5330-01-222-3502	2009-04-105	50	BA
AS3209014	2009-03-89	100	Greece
AS3209014	2009-02-49	2	US
5330-01-222-3502	2009-01-06	770	DIBBS
M832481014	2008-10-296	50	United States
5330-01-222-3502	2008-10-291	667	DIBBS
5330-01-222-3502	2008-03-72	667	DIBBS
M832481014	2007-11-332	1	Turkey
5330-01-222-3502	2006-09-250	14	Thailand

Cross Reference | NSN 5330-01-222-3502

Part Number	Cage Code	Manufacturer
283486-0001 PIECE 62	99657	MAROTTA CONTROLS, INC.
501-1793 PC. NO. 20	53154	PORTLAND VALVE LLC
AS3209-014	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M83248/1-014	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-222-3502

Compare

Related Products | NSN 5330-01-222-3502

5330-01-222-3503, 5330-01-222-3505, 5330-01-222-3506, 5330-01-222-3507, 5330-01-222-3508

Technical Data | NSN 5330-01-222-3502

Characteristic	Specifications
PERIPHERAL DIAMETER	0.629 INCHES NOMINAL
DEPARTURE FROM CITED DOCUMENT	MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS
ELONGATION PERCENTAGE	125 MAXIMUM
HARDNESS RATING	75.0 SHORE DUROMETER A NOMINAL OVERALL
CRITICALITY CODE JUSTIFICATION	ZZZW
MATERIAL	RUBBER FLUOROCARBON CLASS FPM OVERALL
CROSS-SECTIONAL HEIGHT	0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM
TEMP RATING	-20.0 DEG FAHRENHEIT AND 400.0 DEG FAHRENHEIT
CENTER HOLE DIAMETER	0.484 INCHES MINIMUM AND 0.494 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5330-01-222-3502

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	148520	PACKING RUBR/GUM COMPOUND O/T FOAM
Less than car load rating	Q	70
Less than truck load rating	Q	70.0
Water commodity Code	596	unknown
Originating Activity Code	HX	Navy ICP Mechanicsburg, PA 17055-0788
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-222-3502

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Operational Test Code	0	Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	O	Reparable item. When uneconomically reparable, condemn and dispose of at organization level.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
