NSN 5330-01-226-8321 MS28775009, MS28775-009, 2620906X12PC27
Product Details | PREFORMED PACKING
5330-01-226-8321 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: MS28775009, MS28775-009, 2620906X12PC27, 2620-906X12PC27, 8452110224PC10, 845-2110224PC10, 845-2110227 PC 27, 8452110227PC27, 5330-01-226-8321, 01-226-8321, 5330012268321, 012268321
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 FEB 1986 | 01-226-8321 | 04521 ( PACKING, PREFORMED ) |

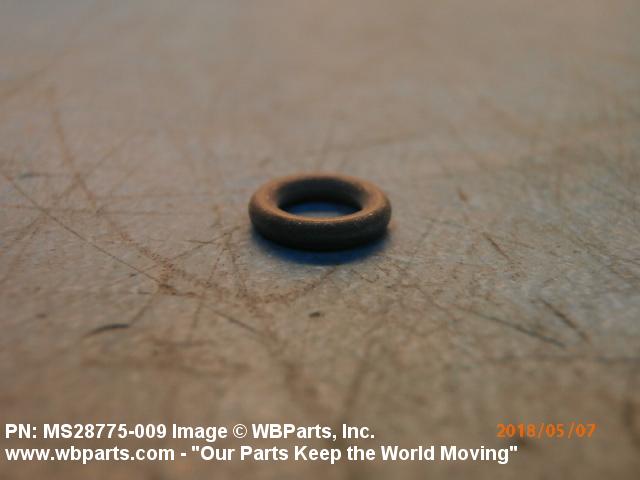

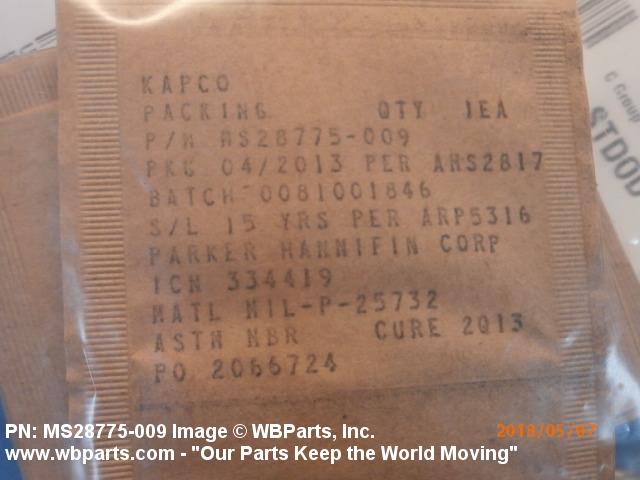

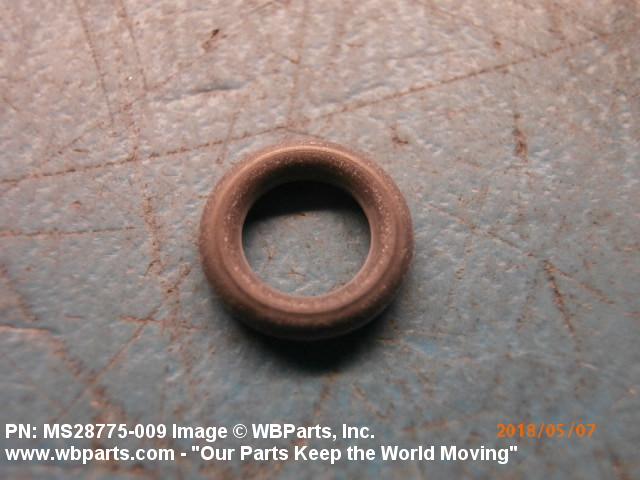

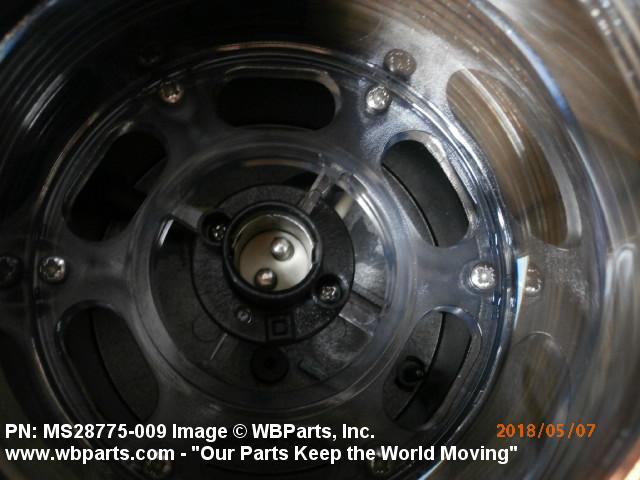

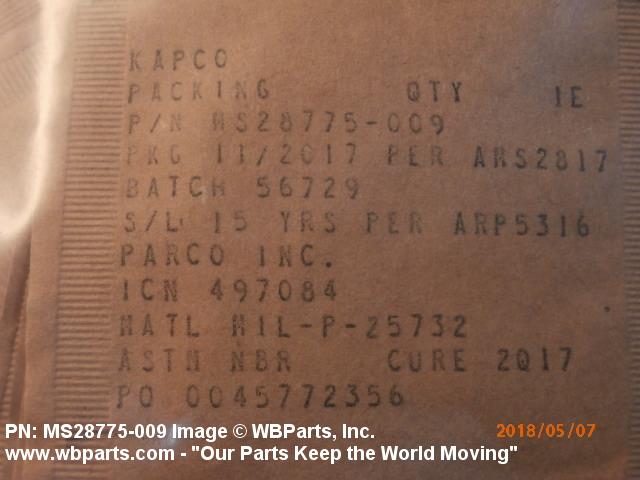

Drawings & Photos | NSN 5330-01-226-8321
Demand History | NSN 5330-01-226-8321
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS28775-009 | 2020-05-136 | 8 | Poland |
| MS28775-009 | 2018-11-324 | 1 | |
| MS28775009 | 2018-10-284 | 10 | South Africa |
| MS28775009 | 2018-04-110 | 30 | United States |
| MS28775009 | 2018-04-92 | 30 | United States |
| MS28775-009 | 2018-03-71 | 5 | |
| MS28775009 | 2018-02-36 | 5 | US |
| 5330-01-226-8321 | 2015-02-35 | 2 | United States |
| 5330-01-226-8321 | 2014-11-316 | 55 | United States |
| MS28775-009 | 2012-11-310 | 50 | |
| MS28775009 | 2012-07-213 | 4 | MX |
| MS28775009 | 2011-02-34 | 100 | United States |
| 5330-01-226-8321 | 2010-05-131 | 250 | US |
Cross Reference | NSN 5330-01-226-8321
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2620-906X12PC27 | 96169 | ELECTRIC BOAT CORPORATION |
| 845-2110224PC10 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 845-2110227 PC 27 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| MS28775-009 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS28775-009 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-226-8321
Technical Data | NSN 5330-01-226-8321
| Characteristic | Specifications |
|---|---|
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 275.0 DEG FAHRENHEIT |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| ELONGATION PERCENTAGE | 160 MAXIMUM |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |

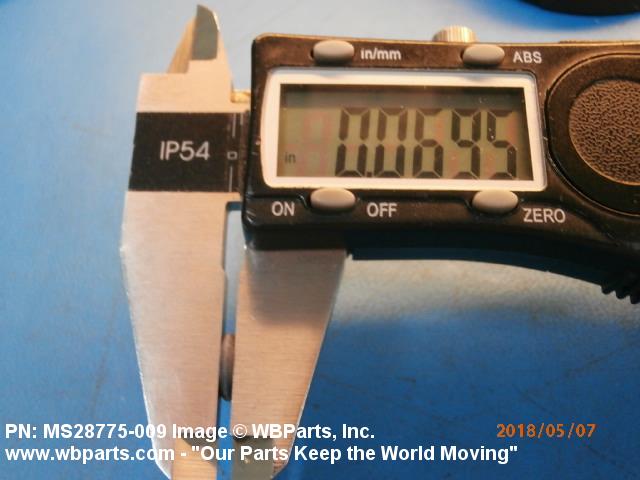

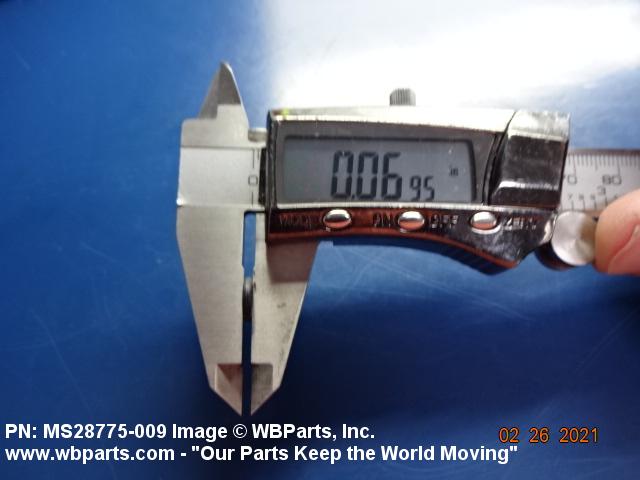

| CROSS-SECTIONAL HEIGHT | 0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |

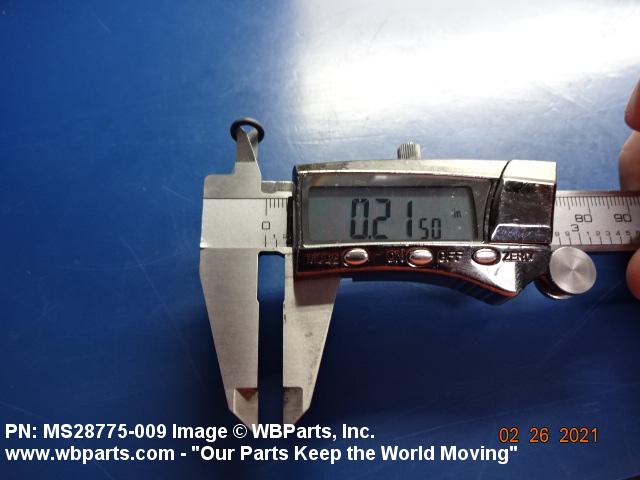

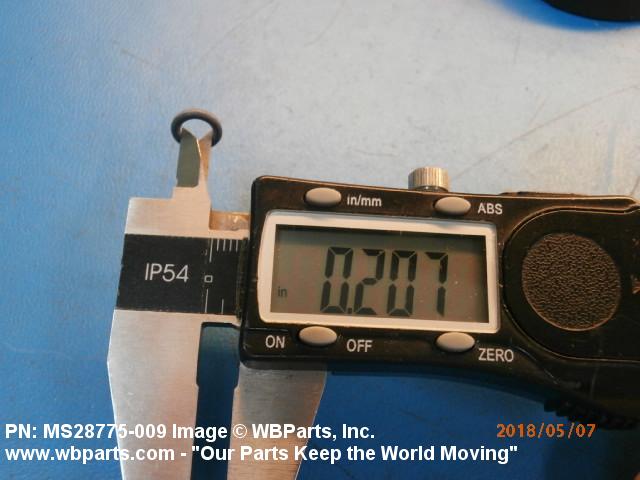

| CENTER HOLE DIAMETER | 0.203 INCHES MINIMUM AND 0.213 INCHES MAXIMUM |

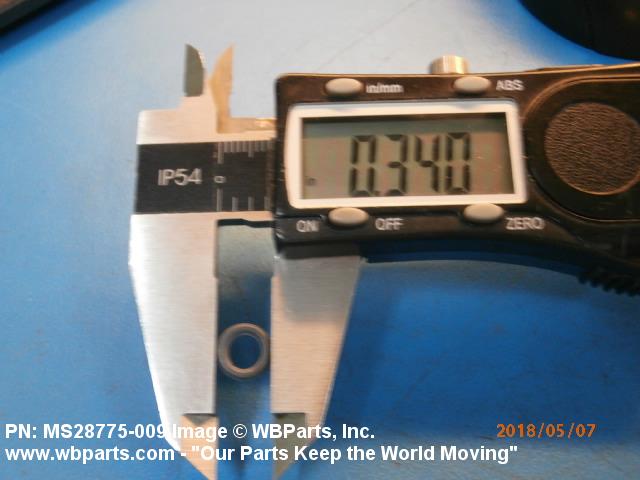

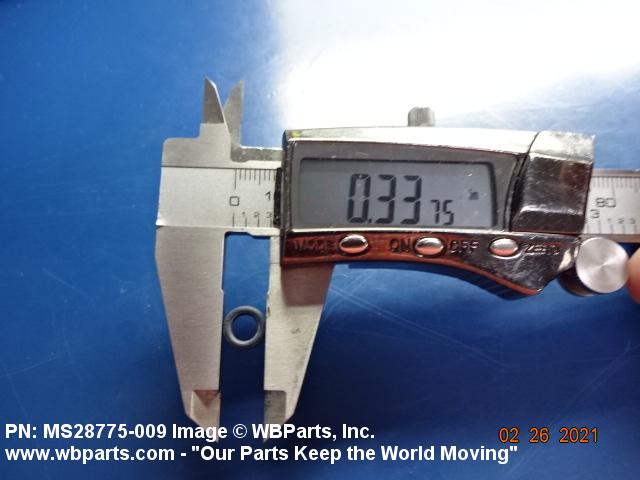

| PERIPHERAL DIAMETER | 0.348 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-01-226-8321
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 148520 | PACKING RUBR/GUM COMPOUND O/T FOAM |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-226-8321
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | JCD | |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
