NSN 5330-01-231-5215 MS2877810, MS28778-10, 2002142024PC14
Product Details | PREFORMED PACKING
5330-01-231-5215 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: MS2877810, MS28778-10, 2002142024PC14, 200-2142024PC14, 2002142924PC14, 200-2142924PC14, 7778915X3PC14, 77789-15X3PC14, 5330-01-231-5215, 01-231-5215, 5330012315215, 012315215
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29-APR-86 | 01-231-5215 | 04521 ( PACKING, PREFORMED ) |

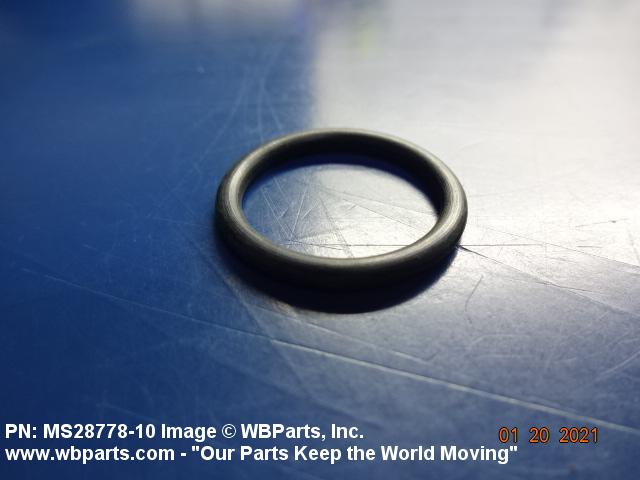

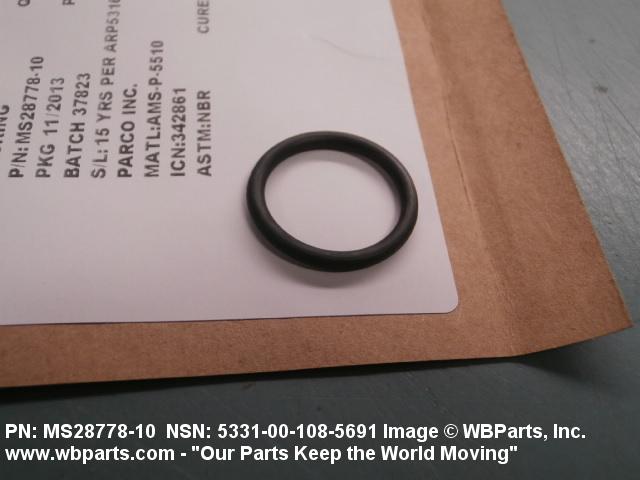

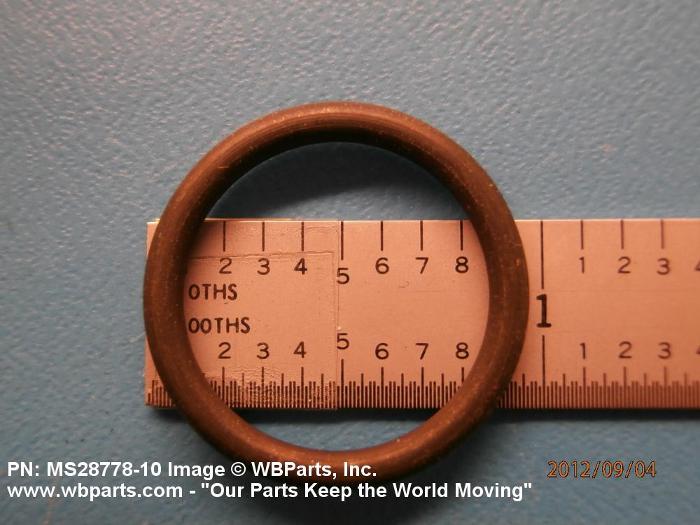

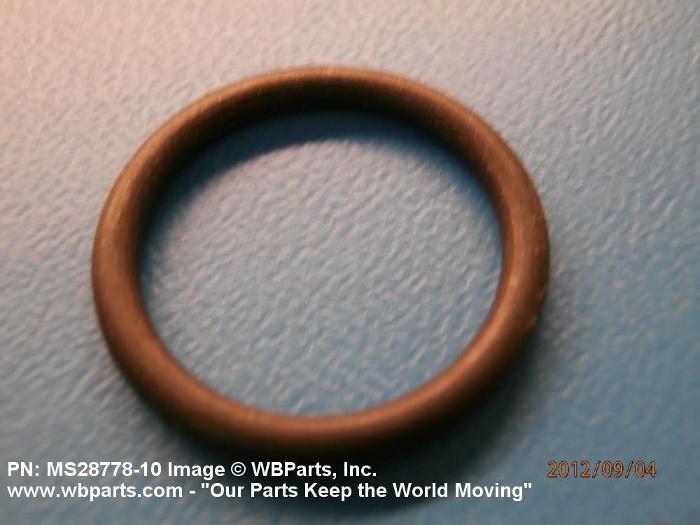

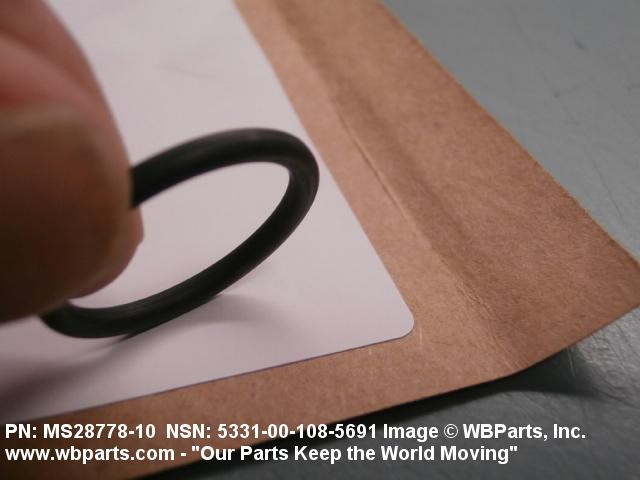

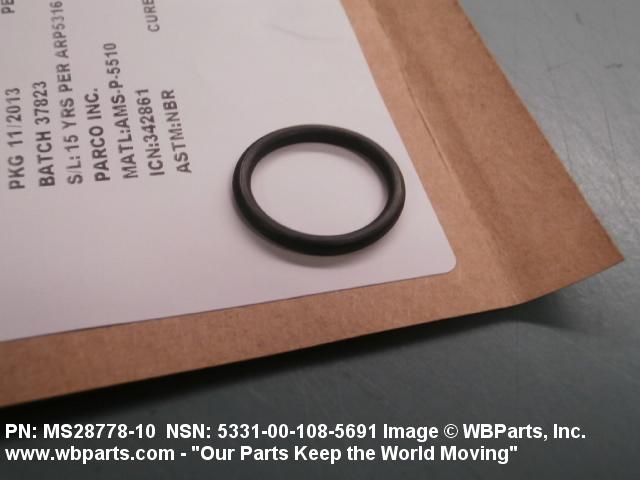

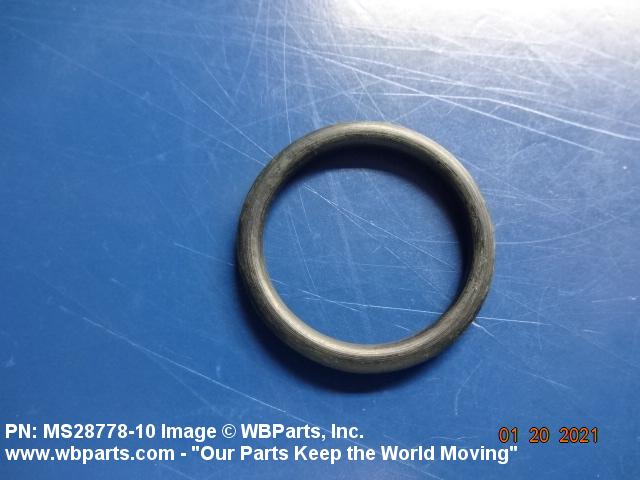

Drawings & Photos | NSN 5330-01-231-5215
Demand History | NSN 5330-01-231-5215
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2877810 | 2025-10-295 | 10 | Saudi Arabia |
| MS2877810 | 2024-09-269 | 1 | US |
| MS2877810 | 2024-02-33 | 100 | Croatia |
| 5330-01-231-5215 | 2023-12-335 | 1 | United States |
| MS2877810 | 2023-10-278 | 14 | US |
| MS2877810 | 2021-11-334 | 2 | Germany |
| MS2877810 | 2021-09-257 | 1 | United States |
| MS2877810 | 2021-09-253 | 20 | United States |
| MS2877810 | 2021-09-253 | 25 | United States |
| MS2877810 | 2021-01-13 | 6 | United States |
| MS2877810 | 2020-11-315 | 2 | United States |
| MS2877810 | 2020-01-14 | 150 | United States |
| MS28778-10 | 2020-01-14 | 150 | United States |
| MS2877810 | 2018-10-281 | 25 | Philippines |
| MS2877810 | 2018-09-269 | 133 | United States |
| MS28778-10 | 2017-11-306 | 2 | |
| MS28778-10 | 2016-04-110 | 500 | US |
| MS2877810 | 2014-11-317 | 100 | United States |
| MS2877810 | 2013-11-308 | 10 | Turkey |
| MS2877810 | 2013-11-308 | 10 | Turkey |
| MS28778-10 | 2013-10-297 | 10 | US |
| MS28778-10 | 2013-10-297 | 10 | US |
| MS28778-10 | 2013-01-22 | 1 | KR |
| 5330-01-231-5215 | 2012-08-234 | 150 | DIBBS |
| MS2877810 | 2012-07-208 | 40 | Greece |
| MS2877810 | 2012-07-208 | 100 | Greece |
| MS2877810 | 2012-05-123 | 2 | US |
| MS2877810 | 2012-05-123 | 2 | US |
| MS2877810 | 2012-03-67 | 50 | United States |
| MS28778-10 | 2012-01-04 | 1 | Argentina |
| MS2877810 | 2012-01-03 | 160 | US |
| MS2877810 | 2012-01-03 | 200 | US |
| MS2877810 | 2011-11-311 | 20 | TH |
| MS2877810 | 2011-02-42 | 2 | US |
| MS2877810 | 2009-05-125 | 30 | Italy |
| MS2877810 | 2006-05-121 | 20 | US |
| MS2877810 | 2006-05-121 | 20 | US |
Cross Reference | NSN 5330-01-231-5215
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 005002156 | F0134 | HONEYWELL AFTERMARKET EUROPE |
| 014-7399 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 01918C46A3U20B9 | F0235 | TRELLEBORG SEALING SOLUTIONS CONDE |
| 10596841-7 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 112732188 | A0199 | OTO MELARA SPA |
| 1376-18-397 | A0199 | OTO MELARA SPA |
| 19,18X2,46SR810B90 | F0229 | LE JOINT FRANCAIS |
| 19,18X2,46SR810B90A | F0229 | LE JOINT FRANCAIS |
| 19-18X2-46-20B9 | F4482 | VICTORIA TECHNOLOGIES |
| 19-18X2-46FP90A | F0235 | TRELLEBORG SEALING SOLUTIONS CONDE |
| 200-2142024PC14 | 96169 | ELECTRIC BOAT CORPORATION |
| 200-2142924PC14 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2251-10 | 91265 | PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION |
| 25704-281200-57-0 | D1839 | BUNDESAMT FUER AUSRUESTUNG, |
| 25704-281200-57-0 | D2692 | KRAUSS-MAFFEI WEGMANN GMBH & CO. KG-WERK KASSEL- |
| 3-910N507-9 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 3-910N507-90 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 3010406 | 001JK | EMBRAER S/A |
| 3010406 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 3010406 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 375875 | F0134 | HONEYWELL AFTERMARKET EUROPE |
| 376-97818-000 ITEM 139 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 5330002859842 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7-755-910003 | 12361 | GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP |
| 7419681 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| 7419681 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7419681 | D5589 | FEINMECHANISCHE WERKE MAINZ GMBH |
| 77789-15X3PC14 | 96169 | ELECTRIC BOAT CORPORATION |
| 7799-10 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 817336 | 02280 | AMERICAN HOIST AND DERRICK CO |
| 817336 | 49185 | TEREX AMERICAN CRANE CORP |
| 91501166 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| AMP-P-5510 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BX375875 | F0134 | HONEYWELL AFTERMARKET EUROPE |
| CH101-61-910 | K0377 | GOODRICH ACTUATION SYSTEMS LTD |
| D6-10 | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| F-14260-10 | 70106 | ACUSHNET RUBBER COMPANY, INC. DBA PRECIX |
| I15624PD832-9 | F0229 | LE JOINT FRANCAIS |
| I15624SR810B90 | F0229 | LE JOINT FRANCAIS |
| LS4634-10 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| MS28178-10 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
| MS28178-10ES | H2313 | ERIKS B.V. |
| MS28778-10 | 05172 | AAI CORPORATION DIV MISSISSIPPI OPERATIONS |
| MS28778-10 | 1K697 | DBR INDUSTRIES, INC. |
| MS28778-10 | 2K255 | GOLDINGER, BERNARD DBA CONAIR AVIATION ASSOCIATES |
| MS28778-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS28778-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS28778-10 | D5589 | FEINMECHANISCHE WERKE MAINZ GMBH |
| MS28778-10 | F0229 | LE JOINT FRANCAIS |
| N507-9-10 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| SAB1918B46A20B9 | F3032 | ATELIER INDUSTRIEL DE L'AERONAUTIQUE DE CUERS PIERREFEU SI |
| SR810B-90-10 | 95272 | STILLMAN SEAL CORPORATION |
| SRB10PD832-9 | F0229 | LE JOINT FRANCAIS |
| SRB10SR810B90 | F0229 | LE JOINT FRANCAIS |
| WB246A01918AK3L | F8300 | CIMD (CENTRE D'IDENTIFICATION DESMATERIELS DE LA DEFENSE) |
| WB246A01918AKNL | F8300 | CIMD (CENTRE D'IDENTIFICATION DESMATERIELS DE LA DEFENSE) |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-231-5215
Technical Data | NSN 5330-01-231-5215
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | O-RING |

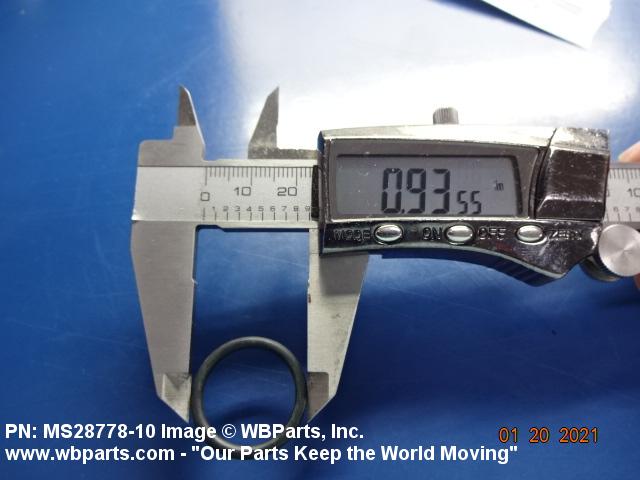

| PERIPHERAL DIAMETER | 0.949 INCHES NOMINAL |

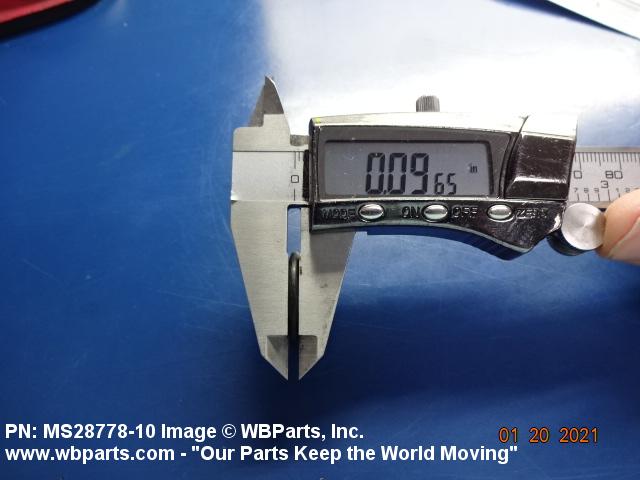

| CROSS-SECTIONAL HEIGHT | 0.097 INCHES NOMINAL |
| DEPARTURE FROM CITED DOCUMENT | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 160.0 DEG FAHRENHEIT |
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |

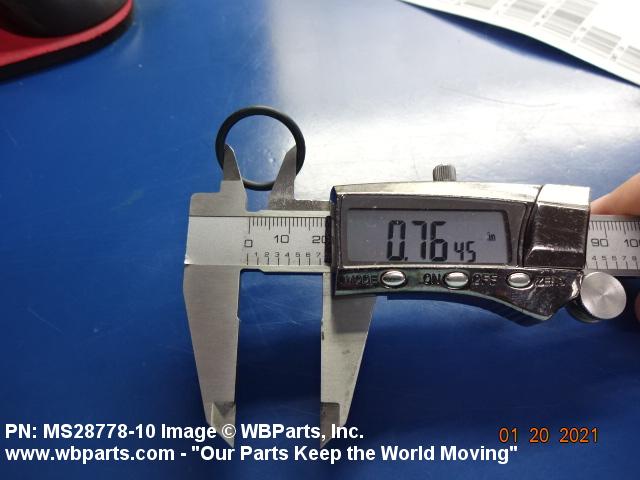

| CENTER HOLE DIAMETER | 0.755 INCHES NOMINAL |
| HARDNESS RATING | 90.0 SHORE DUROMETER A NOMINAL OVERALL |
| ELONGATION PERCENTAGE | 80 MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-01-231-5215
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
