NSN 5330-01-243-9038 TF00513, TF005-13, 96023613
Product Details | WIPER RING
5330-01-243-9038 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: TF00513, TF005-13, 96023613, 960236-13, 5330-01-243-9038, 01-243-9038, 5330012439038, 012439038
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 NOV 1986 | 01-243-9038 | 20256 ( RING, WIPER ) |

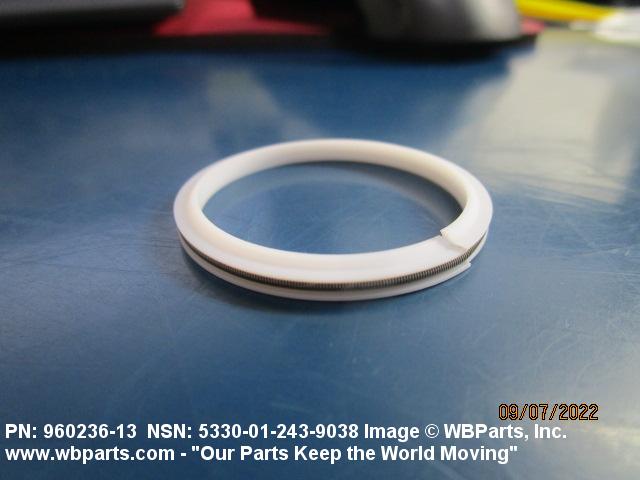

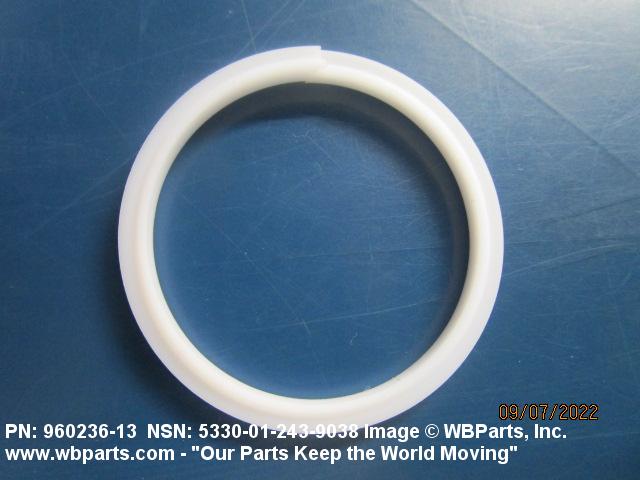

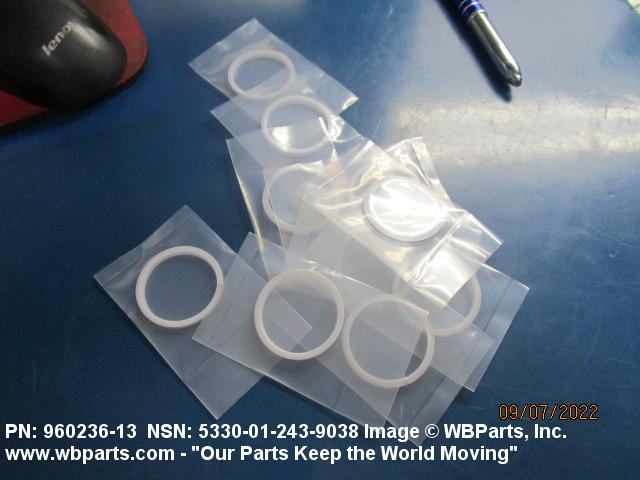

Drawings & Photos | NSN 5330-01-243-9038
Demand History | NSN 5330-01-243-9038
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-243-9038 | 2025-05-132 | 12 | United States |
| 960236-13 | 2024-01-24 | 241 | DIBBS |
| 5330-01-243-9038 | 2022-08-230 | 10 | China |
| TF00513 | 2022-08-230 | 10 | China |
| 5330-01-243-9038 | 2015-07-210 | 260 | DIBBS |
| 5330-01-243-9038 | 2015-06-159 | 45 | DIBBS |
| 5330-01-243-9038 | 2015-05-148 | 45 | DIBBS |
| 5330-01-243-9038 | 2015-05-141 | 20 | DIBBS |
| 5330-01-243-9038 | 2014-04-100 | 170 | DIBBS |
| 5330-01-243-9038 | 2014-03-77 | 170 | DIBBS |
| 5330-01-243-9038 | 2012-09-265 | 400 | DIBBS |
| 5330-01-243-9038 | 2011-03-63 | 5 | DIBBS |
| 5330-01-243-9038 | 2009-08-236 | 113 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-243-9038
Related Products | NSN 5330-01-243-9038
Technical Data | NSN 5330-01-243-9038
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-8791 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | B4 OUTSIDE GROOVED, STRAIGHT FACE |
| RING STYLE | 7 CONCENTRIC |

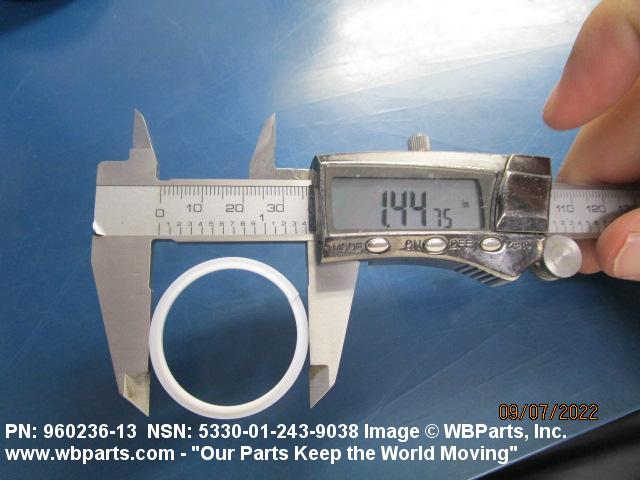

| INSIDE DIAMETER | 1.391 INCHES MINIMUM AND 1.401 INCHES MAXIMUM |

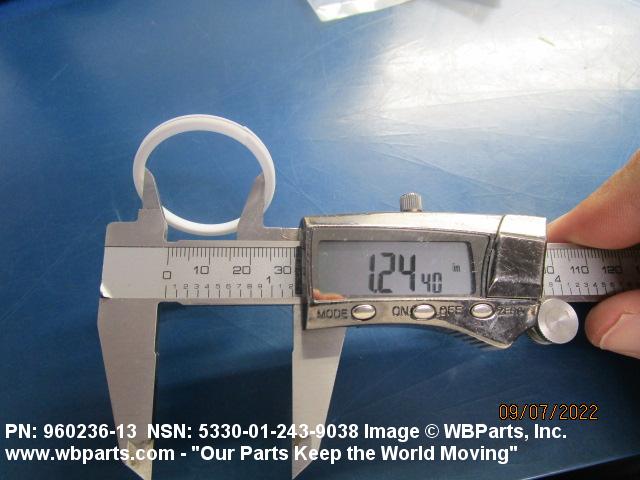

| OUTSIDE DIAMETER | 1.246 INCHES MINIMUM AND 1.248 INCHES MAXIMUM |
| MATERIAL THICKNESS | 1.489 INCHES MINIMUM AND 1.499 INCHES MAXIMUM |
| OUTER EDGE THICKNESS | 0.103 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-01-243-9038
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | ZS | Denmark ZT ZU |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-243-9038
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
