NSN 5330-01-281-4795 S280969MD, S-280969-MD, 939743021PIECE17
Product Details | PLAIN ENCASED SEAL
5330-01-281-4795 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: S280969MD, S-280969-MD, 939743021PIECE17, 9-397-4302-1-PIECE-17, 5330-01-281-4795, 01-281-4795, 5330012814795, 012814795
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUN 1988 | 01-281-4795 | 04214 ( SEAL, PLAIN ENCASED ) |

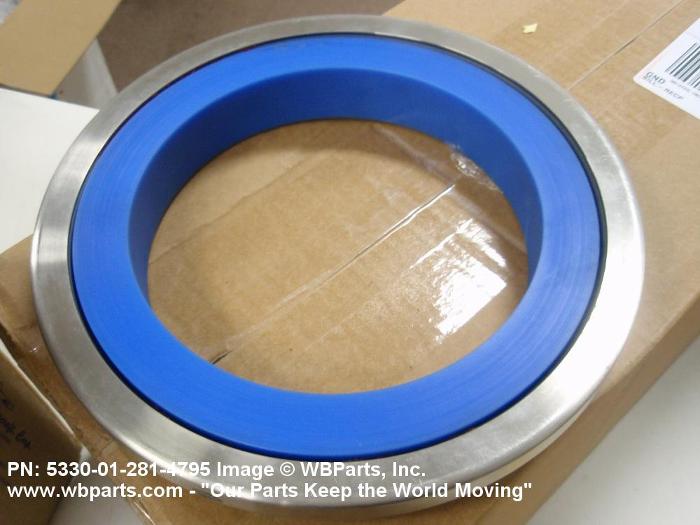

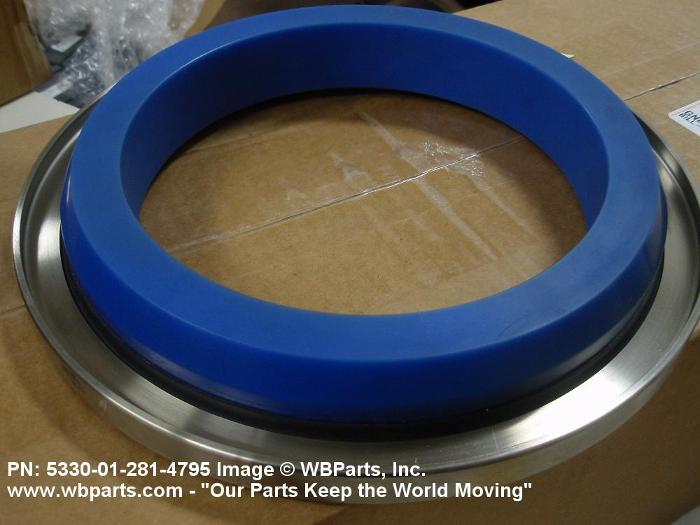

Drawings & Photos | NSN 5330-01-281-4795
Demand History | NSN 5330-01-281-4795
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-281-4795 | 2011-06-167 | 2 | United States |
| 5330-01-281-4795 | 2011-06-167 | 2 | United States |
| 5330-01-281-4795 | 2011-05-149 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-281-4795
Technical Data | NSN 5330-01-281-4795
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING CASE PLASTIC POLYTETRAFLUOROETHYLENE SEALING ELEMENT |
| CASE STYLE | 1 SQUARE |
| SEALING ELEMENT STYLE | 9 ANGULAR |
| SEAL WIDTH | 0.750 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 9.750 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 11.250 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | BEARING AND SEAL ASSEMBLY P/N CGD-9-397-4302-1 ABOARD 180 FT COAST GUARD VESSELS |
| MANUFACTURERS CODE | 05939 |
| DESIGN CONTROL REFERENCE | S-280969-MD |
Restrictions/Controls & Freight Information | NSN 5330-01-281-4795
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
