NSN 5330-01-301-0330 30021692, 3002169-2, 01-301-0330
Product Details | PACKING RETAINER
5330-01-301-0330 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: 30021692, 3002169-2, 5330-01-301-0330, 01-301-0330, 5330013010330, 013010330
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAY 1989 | 01-301-0330 | 13706 ( RETAINER, PACKING ) |

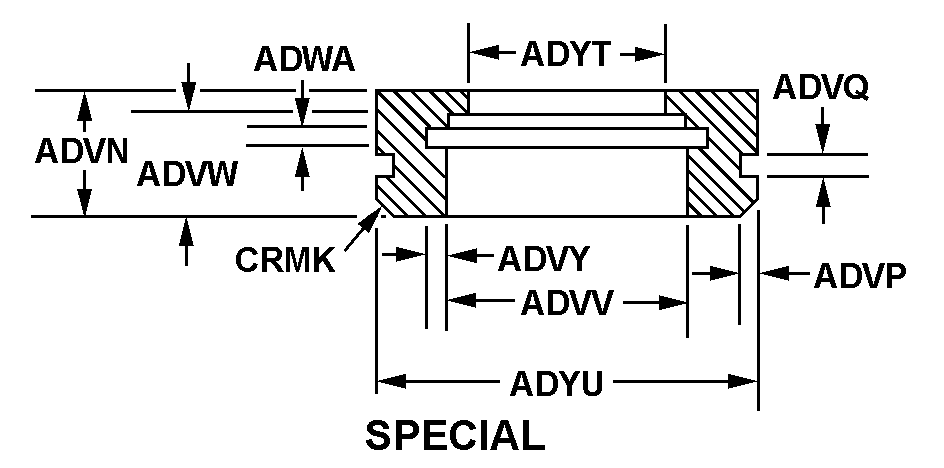

Drawings & Photos | NSN 5330-01-301-0330
Cross Reference | NSN 5330-01-301-0330
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3002169-2 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-301-0330
Technical Data | NSN 5330-01-301-0330
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | D115 SPECIAL |
| CROSS SECTION INSIDE DIAMETER | 1.239 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 2.234 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 0.596 INCHES NOMINAL |
| OUTER GROOVE DEPTH | 0.078 INCHES NOMINAL |
| OUTER GROOVE WIDTH | 0.139 INCHES NOMINAL |
| BODY RECESS DIAMETER | 1.587 INCHES NOMINAL |
| BODY RECESS DEPTH | 0.469 INCHES NOMINAL |
| INNER GROOVE DEPTH | 0.188 INCHES NOMINAL |
| INNER GROOVE WIDTH | 0.219 INCHES NOMINAL |
| SPECIAL FEATURES | ITEM INCLUDES TWO EACH 0.217 IN. EQUALLY SPACED UNTHREADED HOLES ON EACH SIDE OF FACE; TWO SLOTS 0.125 IN. DEEP EQUALLY SPACED ON END OPPOSITE FACE |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3002169-2 |
Restrictions/Controls & Freight Information | NSN 5330-01-301-0330
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-301-0330
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
